PUSH-IN 12AWG 4-PORT, 100 BOX

Manufacturer: Ideal Industries | Catalog # 30-1034 | Electrozad South Part # 280904
$19.28 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Product Brochure D BRAND LOGO IMAGE URL G USERS MANUAL URL

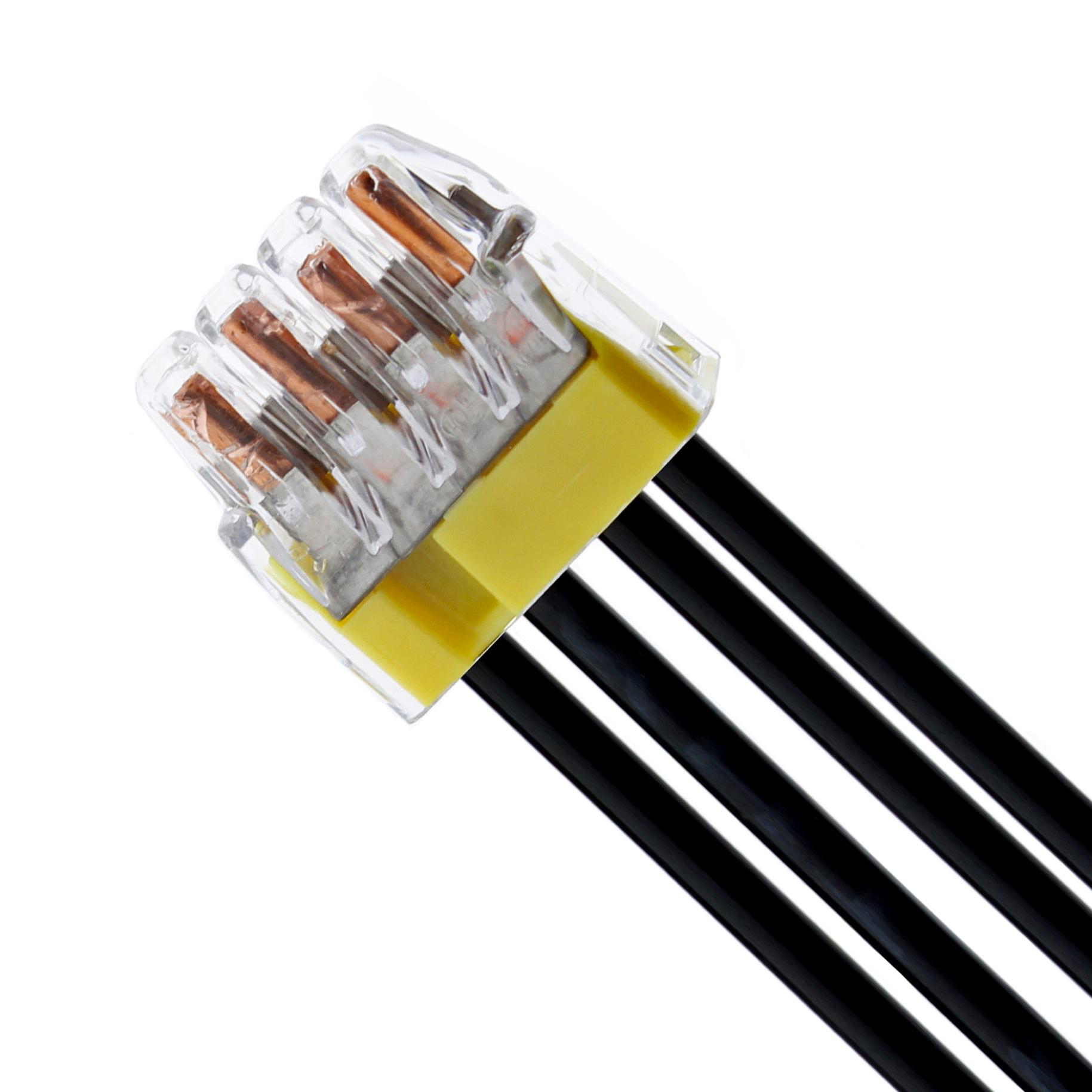

In-Sure® Push-In Wire Connectors ... No-twist push-in design reduces repetitive motion fatigue. Low insertion force for fast and easy connections. Compact size makes installation easy. Clear shell gives visual verification of connection. Tough, UL 94V-2 flame-retardant shell rated at 105..C (221..F).

Technical Information

Applications
For Bonding and Grounding Applications
Conductor Size
20-12 AWG Solid, 16-12 AWG (19 Strand or Less) 18 AWG (7 Strand), 18-14 AWG (19 Strand or Less) Stranded Tin-Bonded
Connection Type
Push-In
Material
Nylon/Polycarbonate
Number of Ports
4
Size
0.780 IN Length X 0.820 IN Width X 0.380 IN Height
TC Connection
4 Ports
Temperature Rating
105 degrees C
Type
Push-In
Wire Size
#12 AWG - #20 AWG Solid, #12 AWG - #16 AWG (19 Strand Or Less) #18 AWG (7 Strand) Stranded, #14 AWG - #18 AWG (19 Strand Or Less) Stranded (Tin Bonded)
Wire Type
Solid, Stranded, Stranded (Tin Bonded)

Manufacturer Information

Brand
Ideal
Sub Brand
In-Sure™

General Product Info

12-Digit UPC
783250693573
Color
Yellow/Transparent
Finish
Tin Plated
GTIN
00783250693573
Product UPC
78325069357

Dimensions

Length
0.78 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Overview
  • The compact size makes for easy installations in even the tightest spots or shallow boxes, and the tough, flame-retardant shell stands up to the harshest environments.
  • Approved for bonding and grounding applications

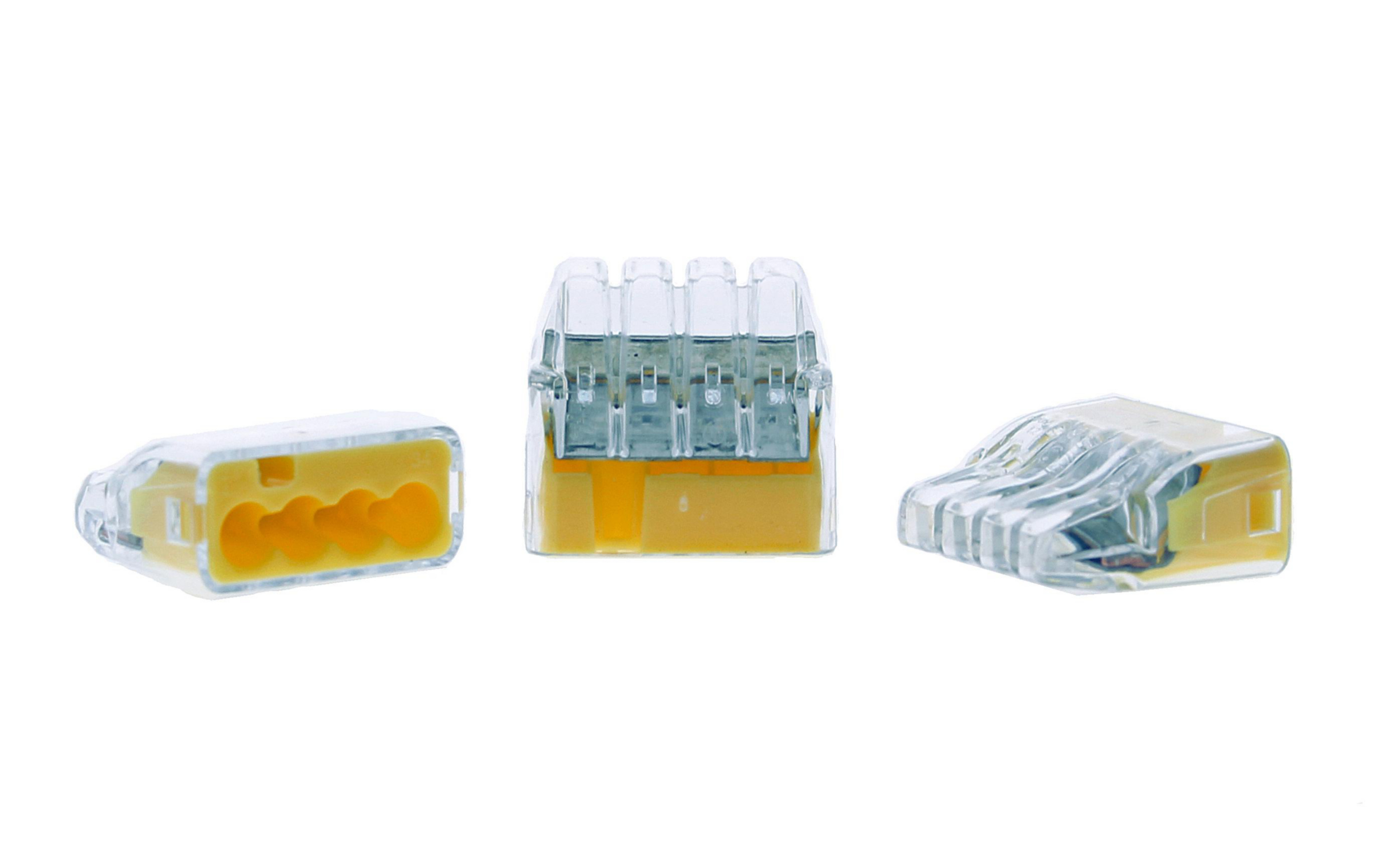

  • The color-coded shell allows for quick identification of port configuration while the clear polycarbonate housing allows for visual verification of every connection.
  • Clear shell gives visual verification of connection
  • Ergonomic design for easy grip and comfortable installation
  • Low insertion force for fast and easy connections

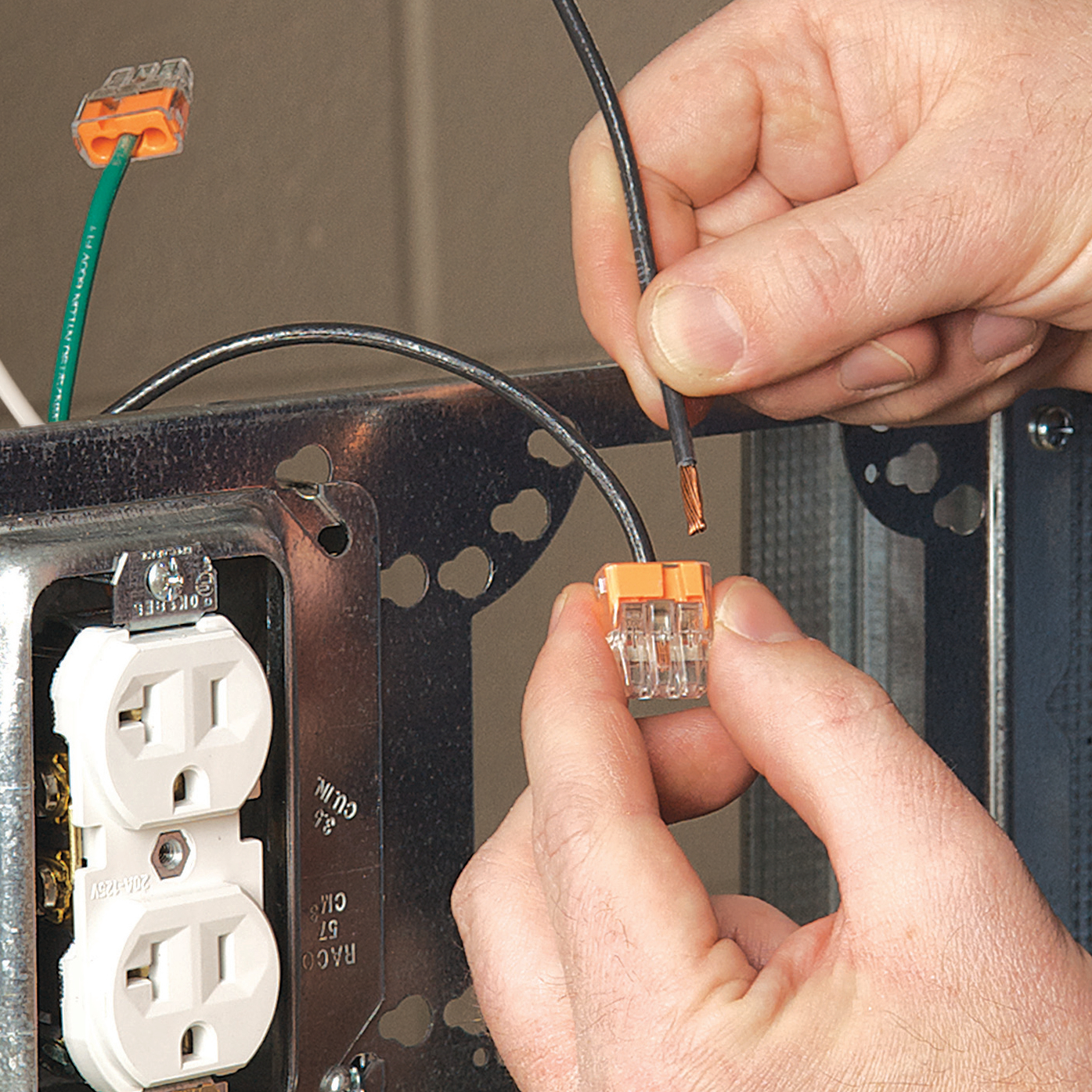

  • The In-Sure Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit, and pre-fab wiring systems, or any other branch circuit wiring application where a traditional twist-on wire connector would be used.
  • The ergonomic design is easier to grip which means more comfortable push-in connections.
  • UL Listed, CSA Certified, and rated to 600V the In-Sure saves time and improves productivity while perfecting connections.
  • Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)
