PUSH-IN 10AWG 3-PORT, 150 JAR

Manufacturer: Ideal Industries | Catalog # 30-1039J | Electrozad South Part # 280906
$113.84 /ea
ea
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check another branch
Product Brochure D BRAND LOGO IMAGE URL G USERS MANUAL URL
Ideal In-Sure Push-In Wire Connectors. No-twist push-in design reduces repetitive motion fatigue. Low insertion force for fast and easy connections. Compact size makes installation easy. Clear shell gives visual verification of connection. UL 94V-2 flame-retardant shell rated at 105..C (221..F).

Technical Information

Applications
For Grounding and Bonding Applications
Conductor Size
10-14 AWG Solid, 10-12 AWG Stranded
Material
Nylon/Polycarbonate
Size
0.780 IN Length X 086 IN Width X 0.450 IN Height
TC Connection
3 Ports
Temperature Rating
105 C
Type
3-Port
Wire Size
#10 AWG - #14 AWG Solid, #10 AWG - #12 AWG (19 Strand Or Less) Stranded, #10 AWG - #14 AWG (19 Strand Or Less) Stranded (Tin Bonded)
Wire Type
Solid, Stranded, Stranded (Tin Bonded)

Manufacturer Information

Brand
Ideal
Sub Brand
In-Sure™

General Product Info

12-Digit UPC
783250693658
Color
Blue
GTIN
00783250693658
Product UPC
78325069365

Certifications & Compliance

BAA | Buy American Compliant
Y
Overview
  • The compact size makes for easy installations in even the tightest spots or shallow boxes, and the tough, flame-retardant shell stands up to the harshest environments.
  • Approved for bonding and grounding applications

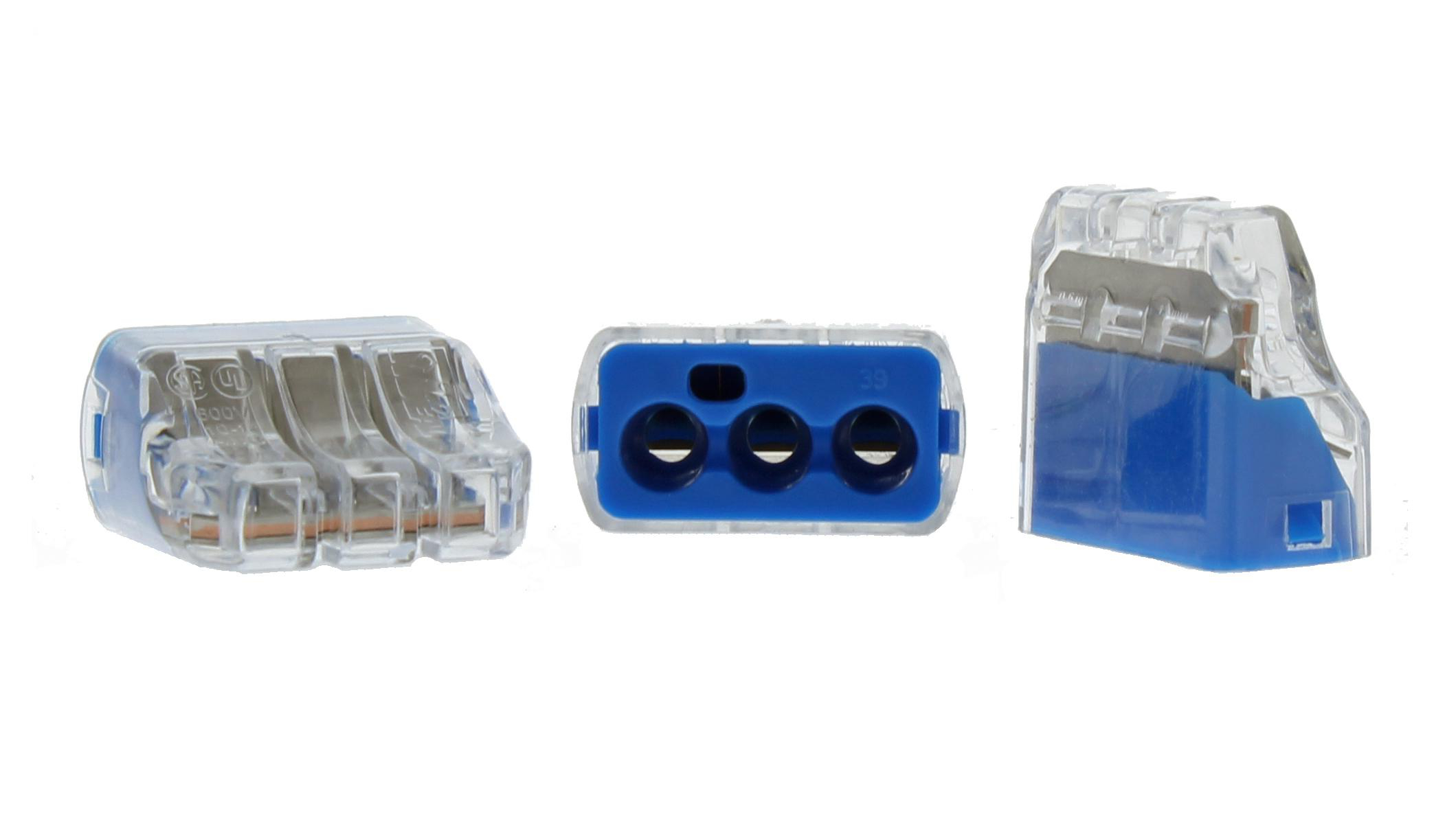

  • The color-coded shell allows for quick identification of port configuration while the clear polycarbonate housing allows for visual verification of every connection.

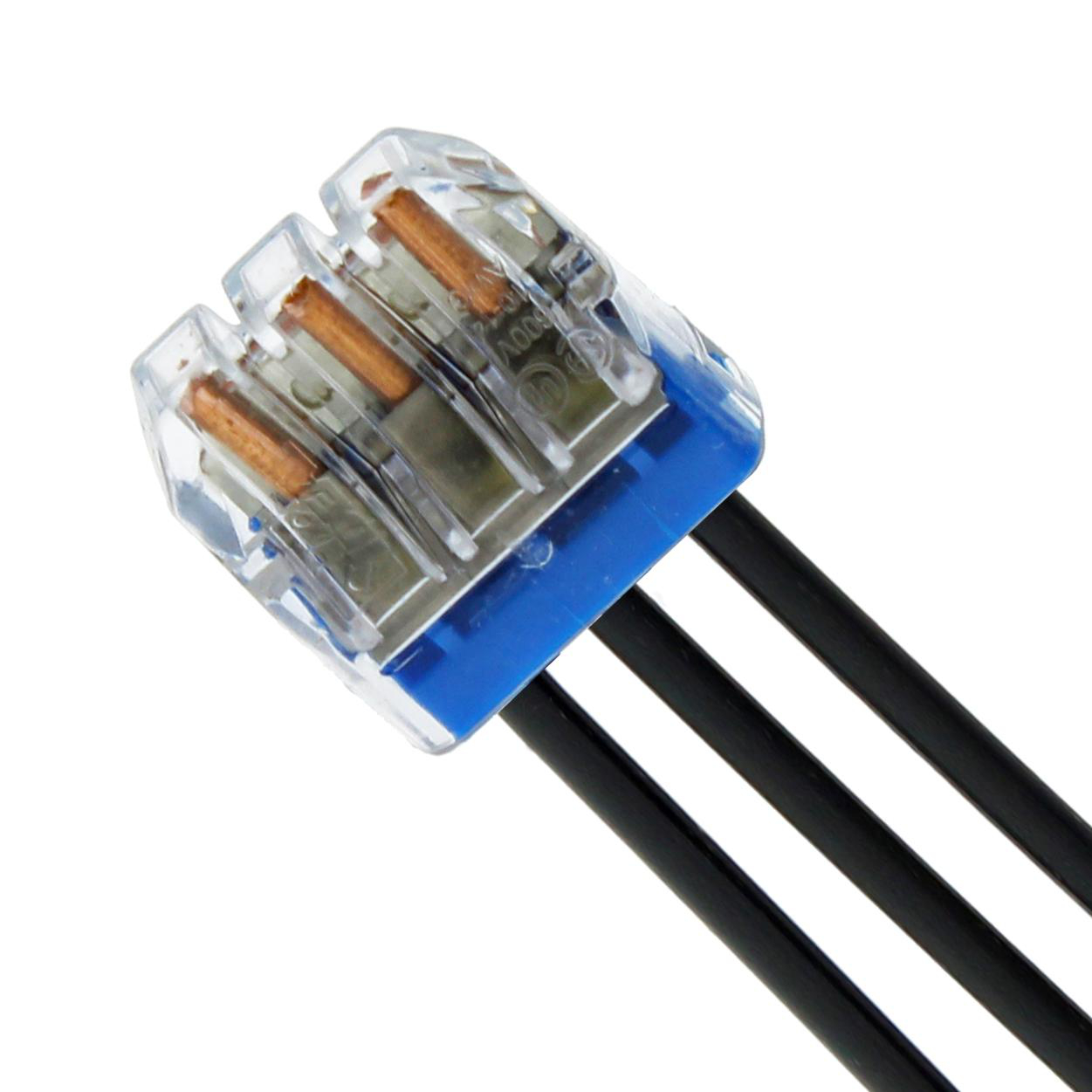

  • Clear shell gives visual verification of connection
  • Ergonomic design for easy grip and comfortable installation
  • Low insertion force for fast and easy connections

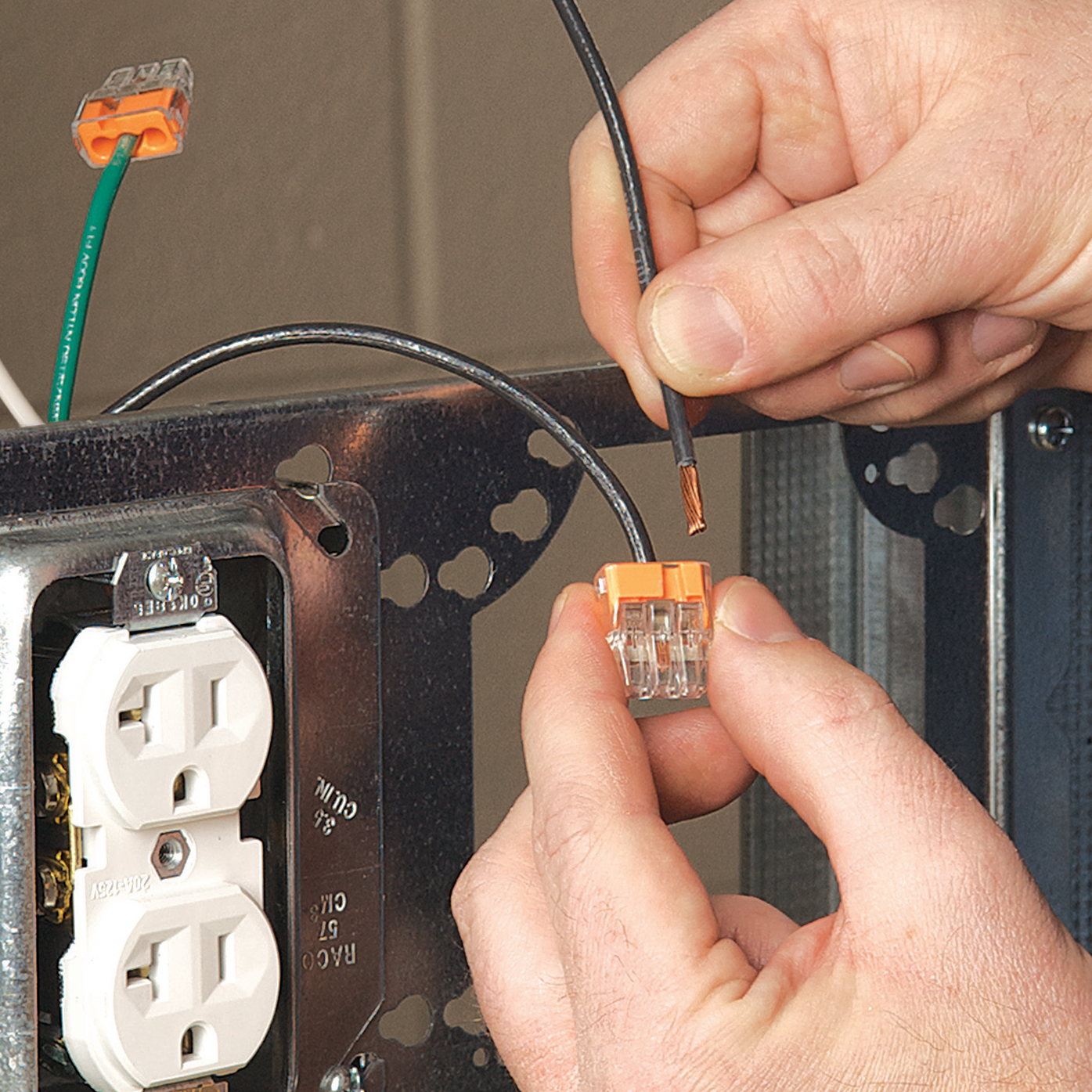

  • The In-Sure Push-In Wire Connector is perfect for residential, light commercial, lighting retrofit, and pre-fab wiring systems, or any other branch circuit wiring application where a traditional twist-on wire connector would be used.
  • The ergonomic design is easier to grip which means more comfortable push-in connections.
  • UL Listed, CSA Certified, and rated to 600V the In-Sure saves time and improves productivity while perfecting connections.
  • Tough, UL 94V-2 flame-retardant shell rated at 105°C (221°F)
