SIED HNF366RA DISCONNECT 600A 3P 600V 3W NON FUSED HD TYPE3R SAFETY SWITCH | Electrozad South

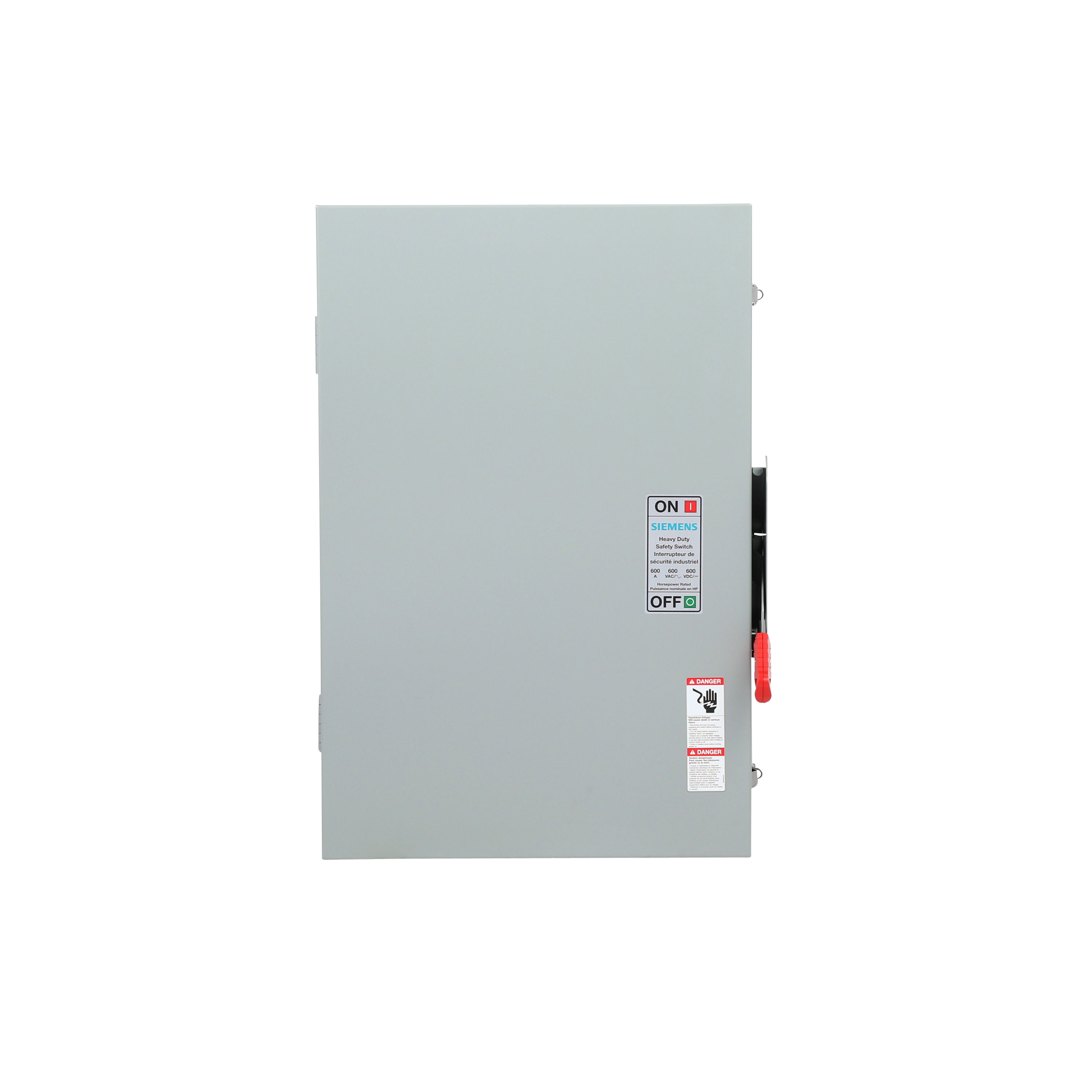

Product image for SIED HNF366RA DISCONNECT 600A 3P 600V 3W NON FUSED HD TYPE3R SAFETY SWITCH
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

SIED HNF366RA DISCONNECT 600A 3P 600V 3W NON FUSED HD TYPE3R SAFETY SWITCH

Manufacturer: Siemens Distribution | Catalog # HNF366RA | Electrozad South Part # 280985
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page
CUL Heavy Duty Safety Switch, Non-Fusible, 3 Poles, 600V, 600A, Type 3R

Technical Information

Action
Single throw
Actuator
SINGLETHROW
Amperage
600 A
Applications
Circuit Protection
Connection Type
MECHANICAL LUGS
Contact Configuration
Single Throw
Enclosure
NEMA3R
Material
Steel
Number of Poles
3
Number of Wires
3
Operating Cycles
10000
Operating Temperature
-29 degrees C
TC Connection
MECHANICALLUGS
Temperature Rating
-20 to 120 degrees F Ambient
Type
Heavy Duty

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
887621872557
GTIN
00887621872557
Housing Material
Steel
Product UPC
88762187255
Weight
115.000 lb

Dimensions

Height
33.470 in
Length
6.940 in
Width
22.400 in

Certifications & Compliance

Country of Origin
Mexico
