Cat 5e, 24 AWG, Modular Plug

Manufacturer: Panduit | Catalog # MPI588T | Electrozad South Part # 282454
$48.07 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

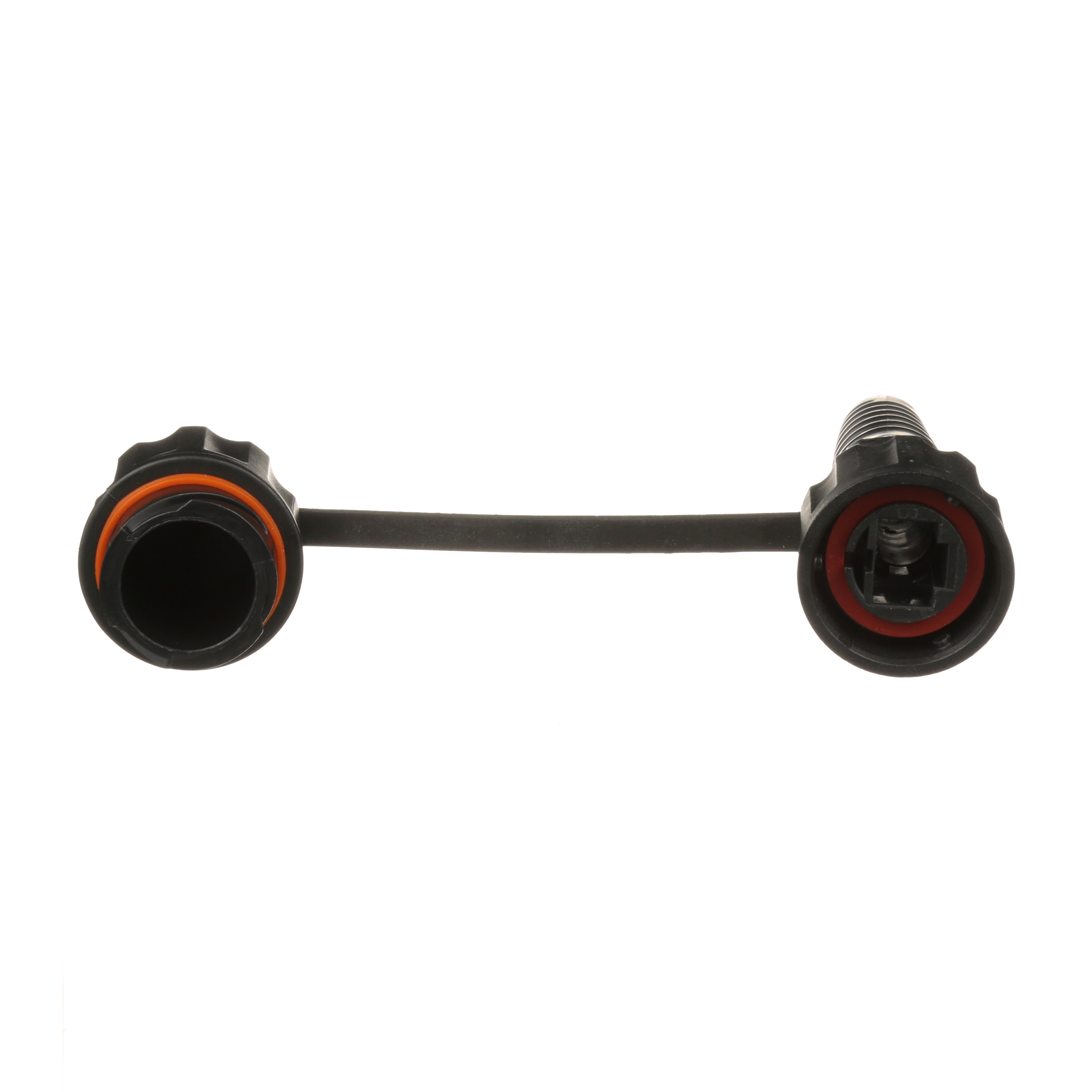

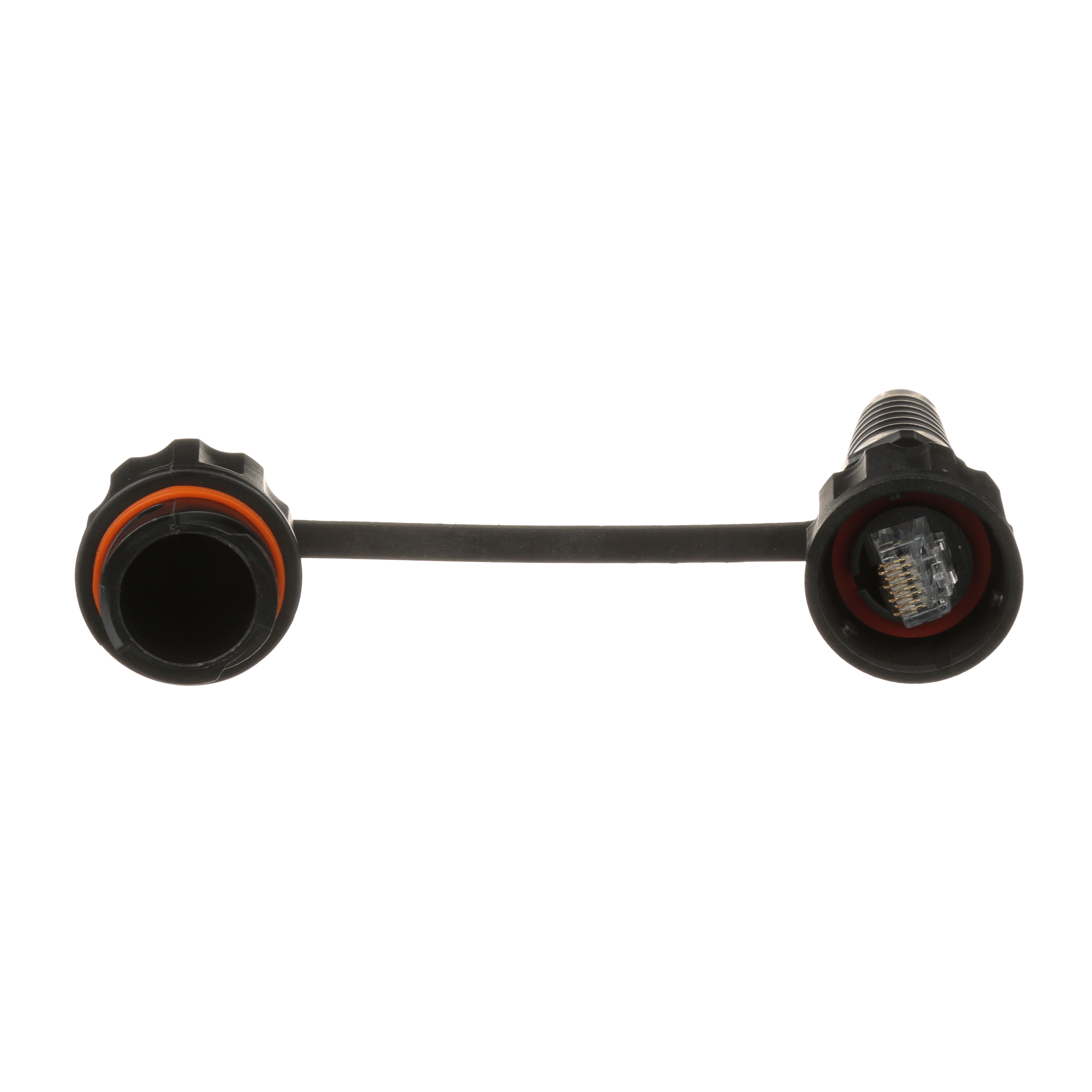

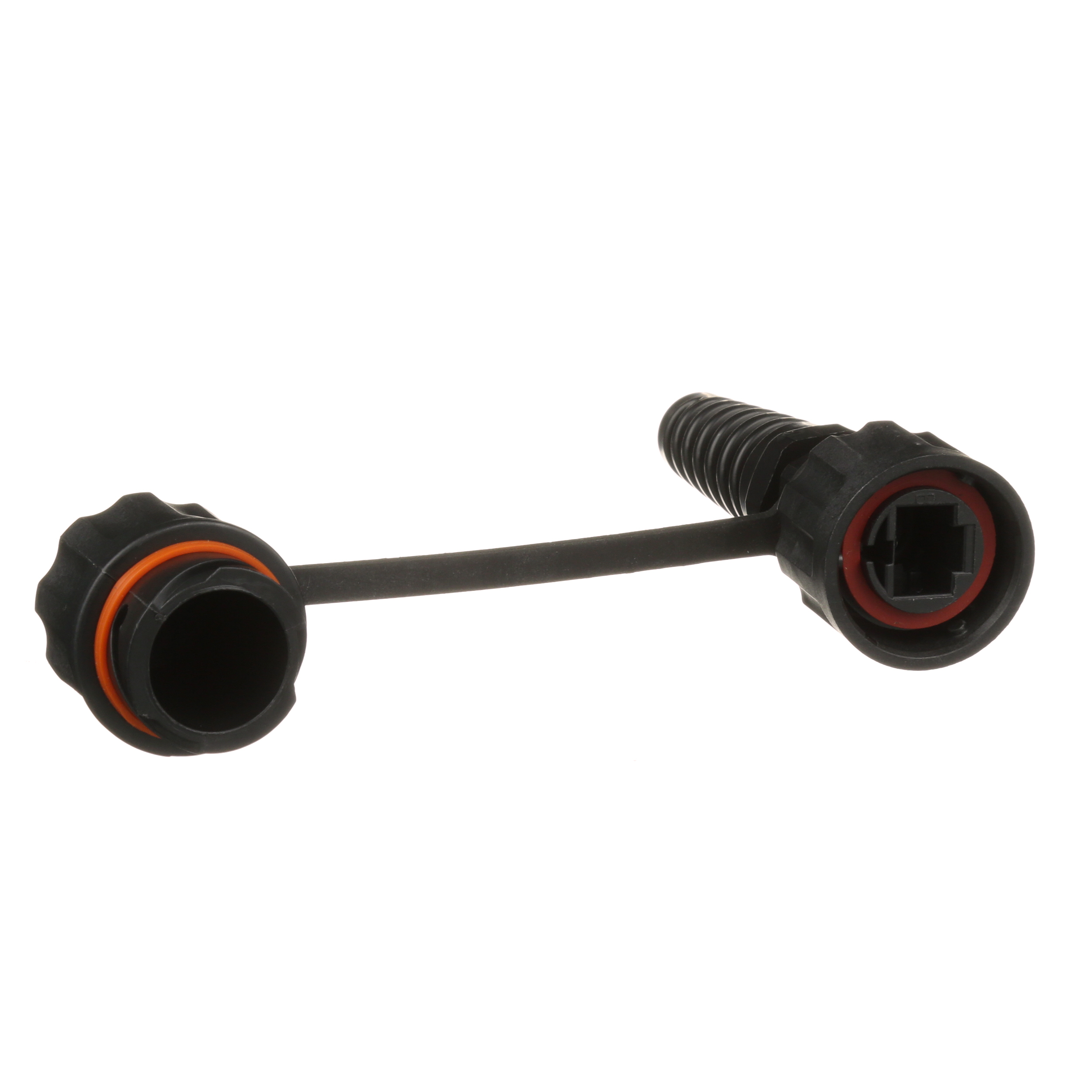

The IndustrialNet™ Cat 5e Modular Plug is 8-position, 8-wire. The plug terminates Cat 5e, industrial grade, 24 AWG, UTP copper cable. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water. Secondary seals on both the connector and plug provide additional protection.

Technical Information

Applications
Unshielded
Cable Entry
T568A/T568B
Cable Size
24 AWG Solid or Stranded
Cable Type
Category 5e
IP Rating
IP67
Material
Polycarbonate
Max Operating Temperature
158 degrees F
Minimum Operating Temperature
-20 degrees C
Number of Positions
8
Performance Level
Category 5e
Type
RJ45, Industrial, 8-Wire

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
IndustrialNet™, TX5e

General Product Info

12-Digit UPC
074983421930
Color
Black
Environmental Conditions
Harsh Industrial
GTIN
00074983421930
Product UPC
07498342193
Used With
Shielded Copper Cable

Dimensions

Depth
3.76 in
Height
5.22 in
Overall Length
3.76 in
Width
1.18 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
