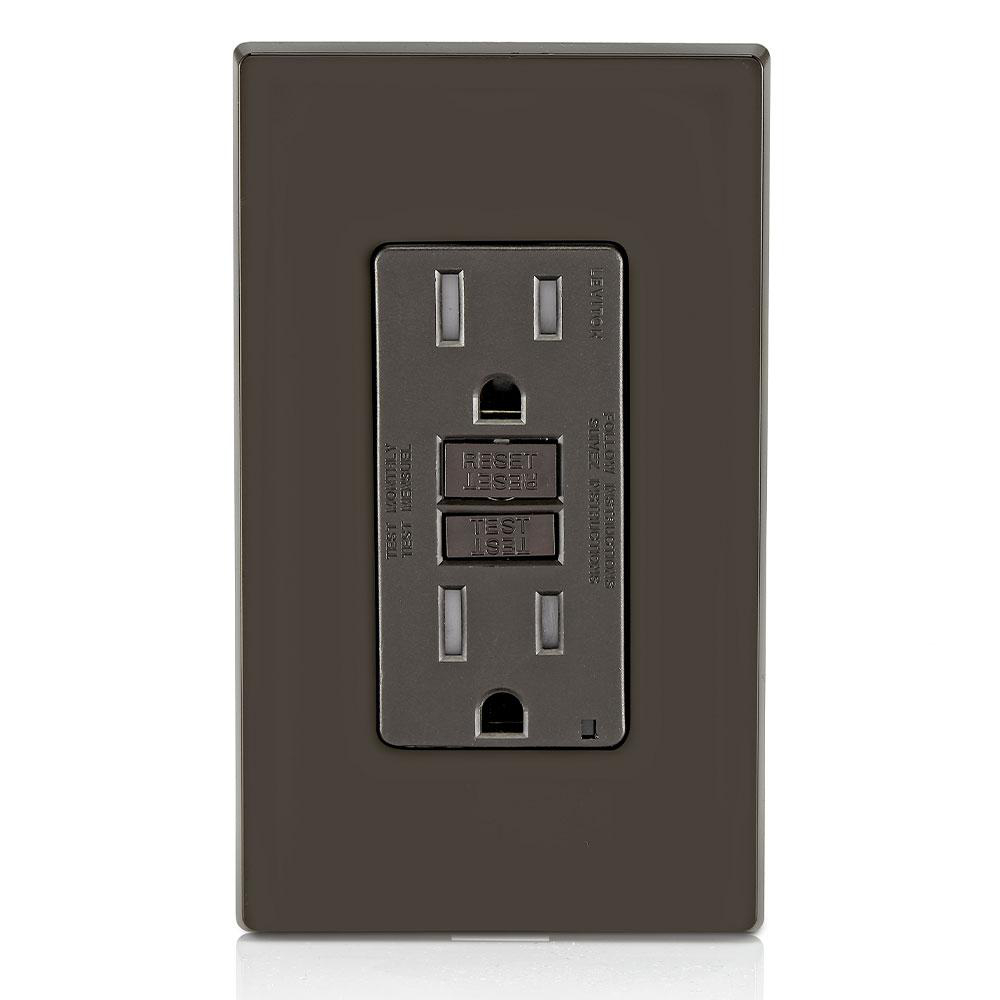

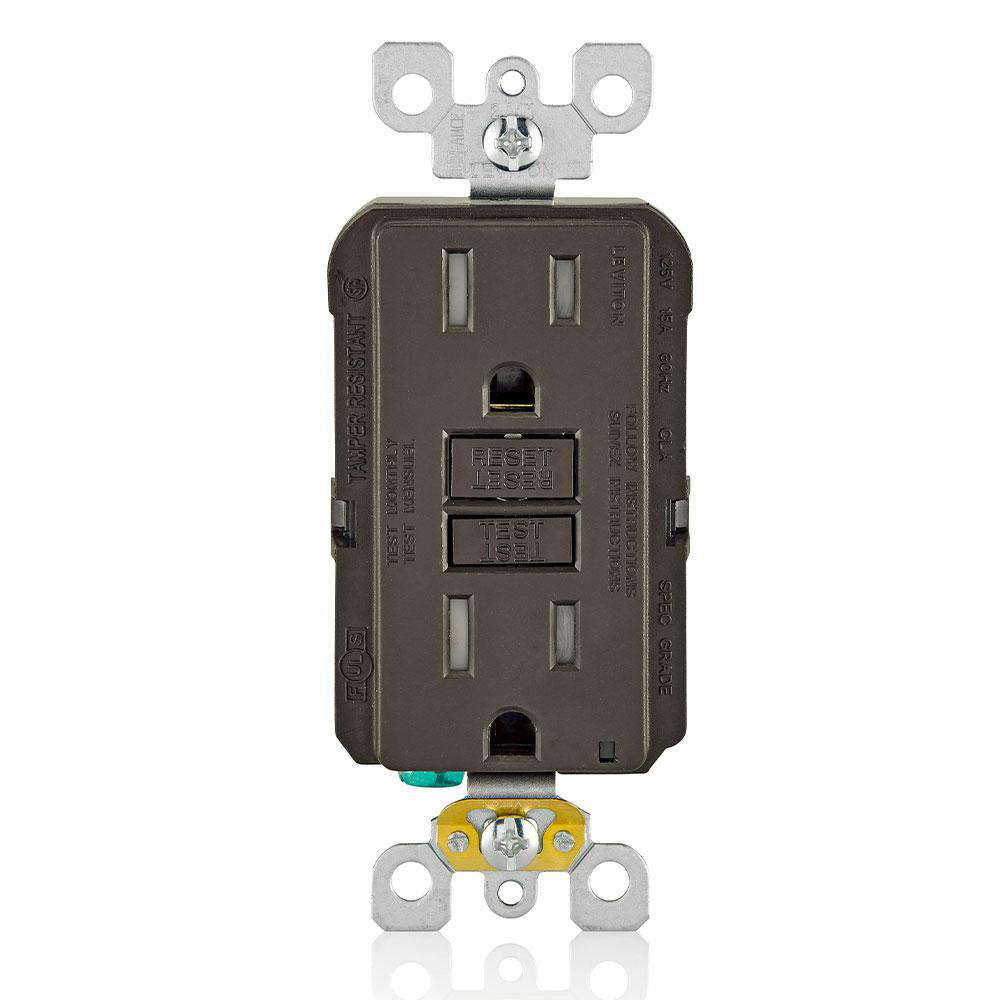

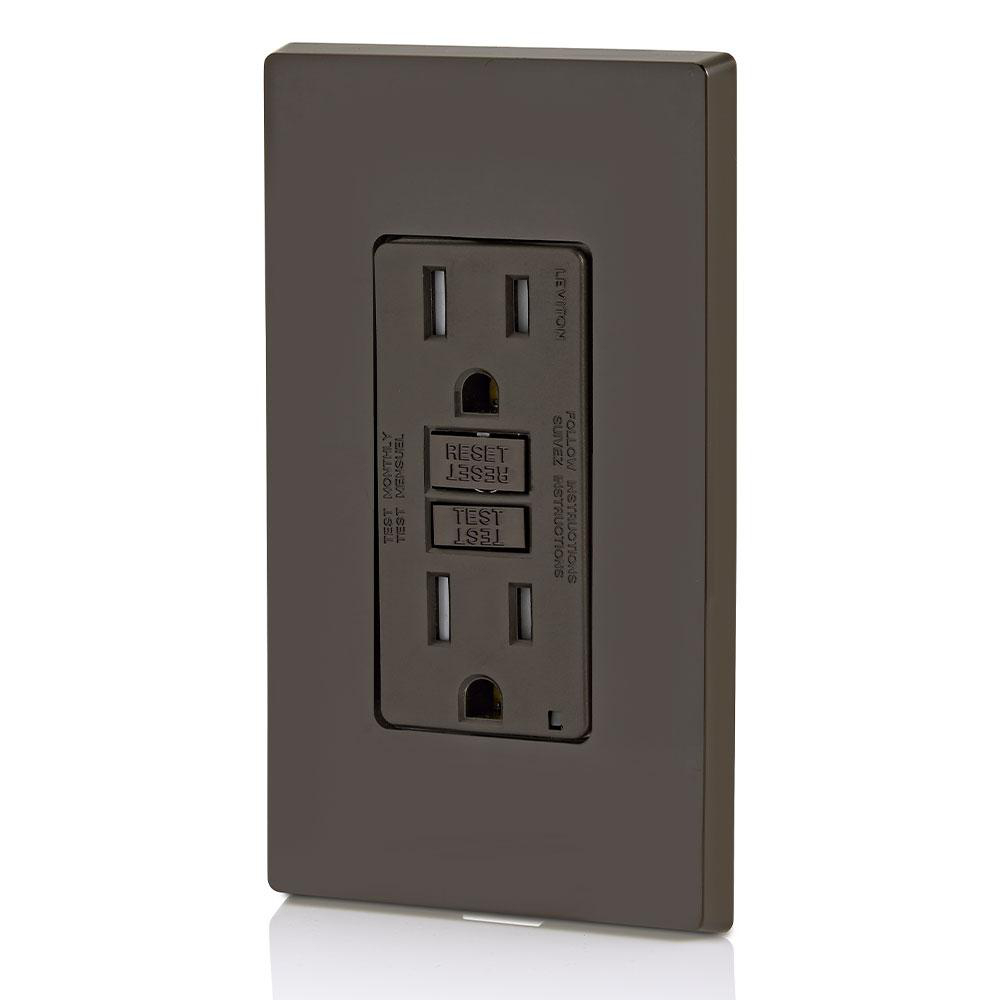

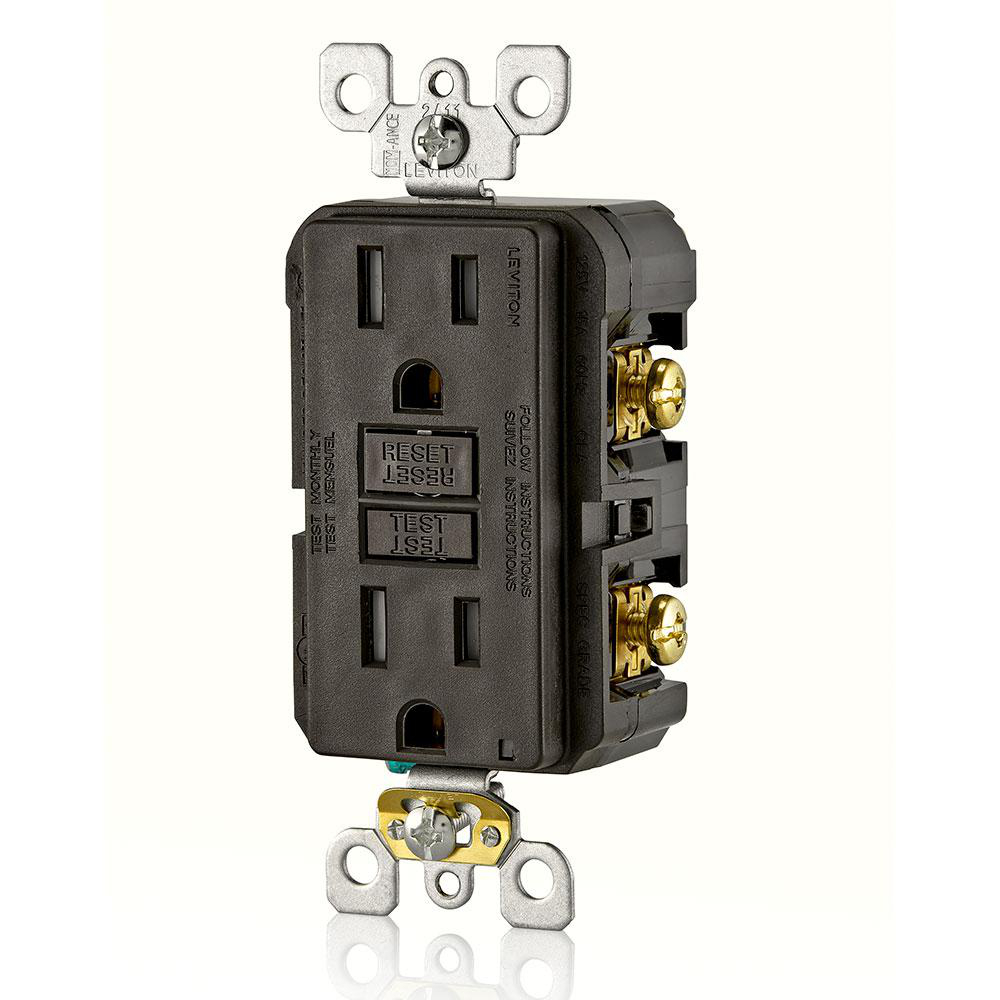

Receptacle GFCI commercial grade tamper resistant LED 15A 125V brown

Manufacturer: Leviton Manufacturing | Catalog # GFTR1 | Electrozad South Part # 283257

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
SmartlockPro® Self-test GFCI tamper resistant receptacle provides continuous ground fault protection detects and trips on actual ground fault even when self-test is being conducted. NEMA 5-15R, back and side wired. Duplex with LED indicator (with self-grounding clip). Patented bridge contact provides individual sets of contacts for GFCI receptacle face and downstream receptacles, no power will be delivered to receptacle face if improperly wired (line-load reversed). Trip threshold meets or exceeds UL requirements for tripping time. Improved immunity to high frequency noise reduces nuisance tripping. Advanced electronics provides superior resistance to electrical surges and over-voltages. Patented lockout action prevents reset if GFCI is damaged and cannot respond to a ground fault. Status indicator light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal. Silver alloy contacts. Impact-resistant thermoplastic cover and body.

Technical Information

Amperage
15 A
Body Material
Polycarbonate,Polycarbonate,Polycarbonate
Dielectric
1250 V
Face Material
Thermoplastic,Thermoplastic,Thermoplastic
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial,Residential
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Flush
NEMA
5-15R
Number of Poles
2
Number of Wires
3
Operating Temperature
66 degrees C
Short Circuit Current
10 kA
Standard
ANSI C-73,CSA,CSA,UL,UL
Temperature Rise
150 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Tamper-Resistant
Voltage
125 V
Wire Count
3,3

Manufacturer Information

Brand
Leviton
Sub Brand
TAMPER RESISTANT GFI RECEPTAC

General Product Info

12-Digit UPC
078477487129
Color
Brown
Finish
Matte
GTIN
00078477487129
Product UPC
07847748712

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
China
