Thermal transfer Heat Shrink polyolefin white 3/16"

Manufacturer: Panduit | Catalog # H100X034H1T-B | Electrozad South Part # 283488
$2,921.97 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 18 to 28 days
Specification Sheet Product Catalog Page D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL

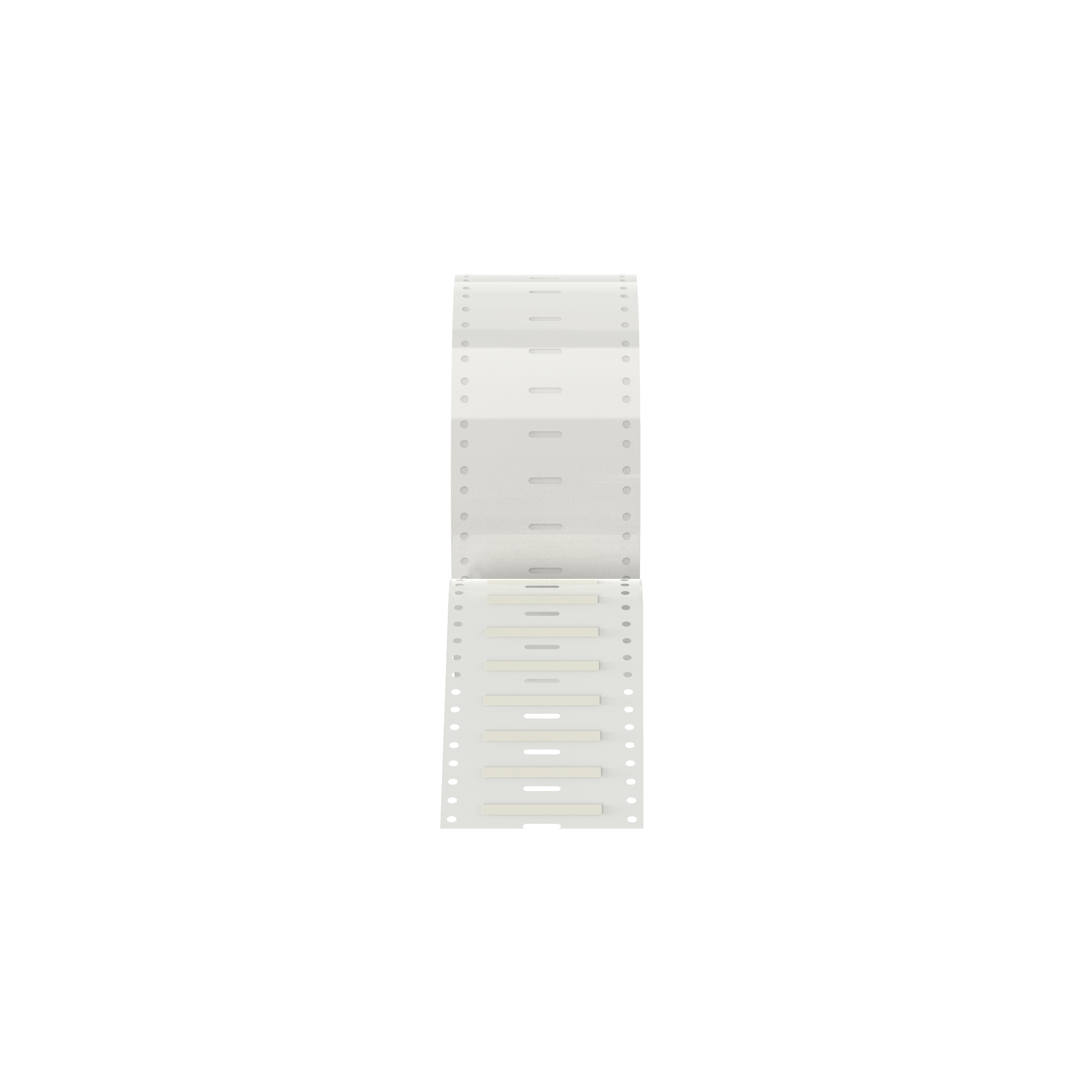

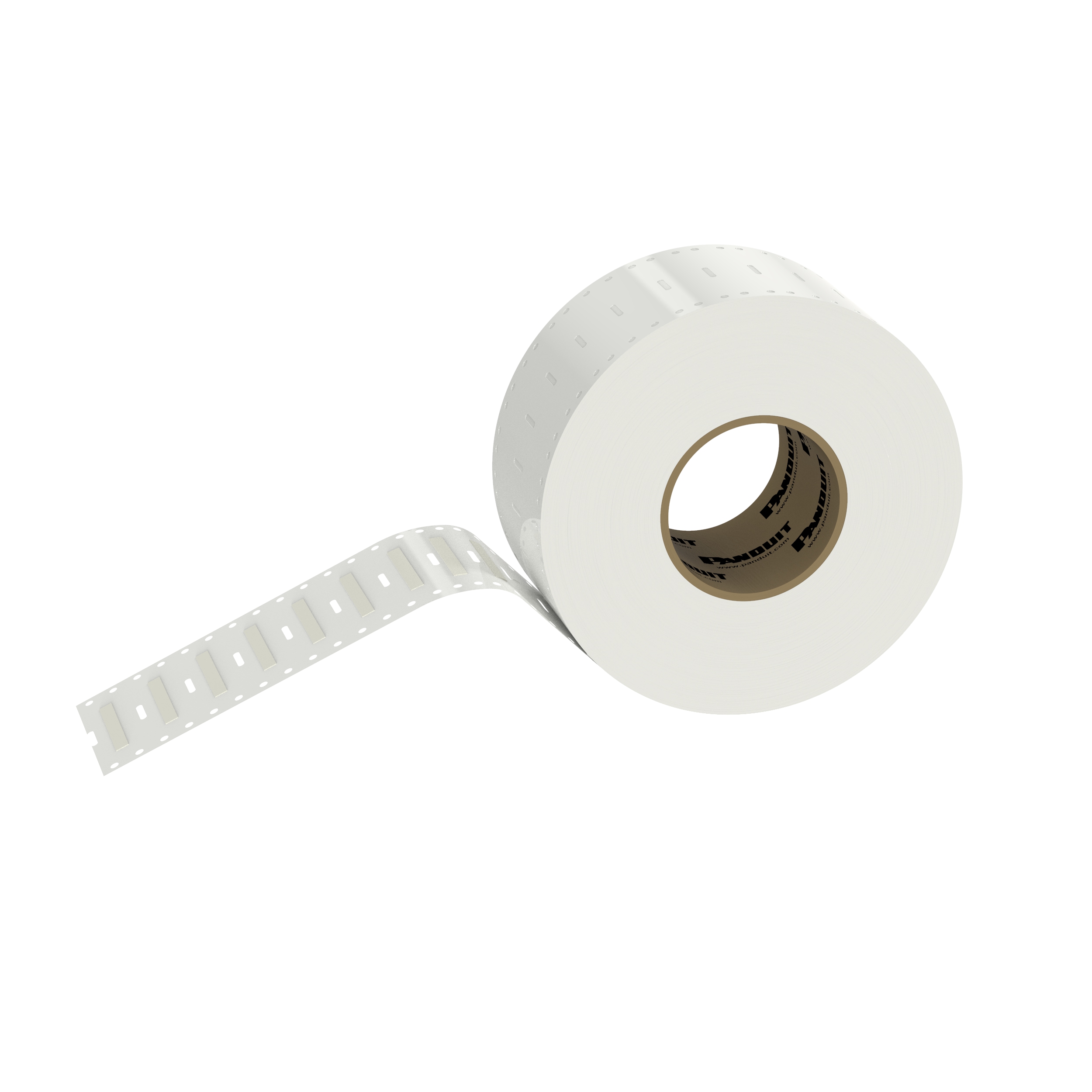

PANDUIT® Thermal transfer military grade heat shrink label offers crisp, clear legends with superior legibility. Pre-cut flattened polyolefin is both thermal transfer and dot matrix printable and supplied roll mounted on plastic carrier. It includes all label formats for quick and easy label production.

Technical Information

Cable Size
18-12 AWG
Material
Military Grade Polyolefin
Max Operating Temperature
135 degrees C
Minimum Operating Temperature
-55 degrees C
Mounting Type
Plastic Carrier
Shrink Ratio
3:1
Size
1.00 x 0.34
Temperature Rating
-67 to 275 degrees F
Type
2-Side, Pre-Cut

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Code

General Product Info

12-Digit UPC
074983522255
Color
White
GTIN
00074983522255
Legend
OUTPUT: 001
Product UPC
07498352225
Used With
Thermal Transfer and Dot Matrix Printer

Dimensions

Diameter
4.7 mm
Height
0.34 in
Length
0.34 in
Overall Length
0 in
Width
1 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
