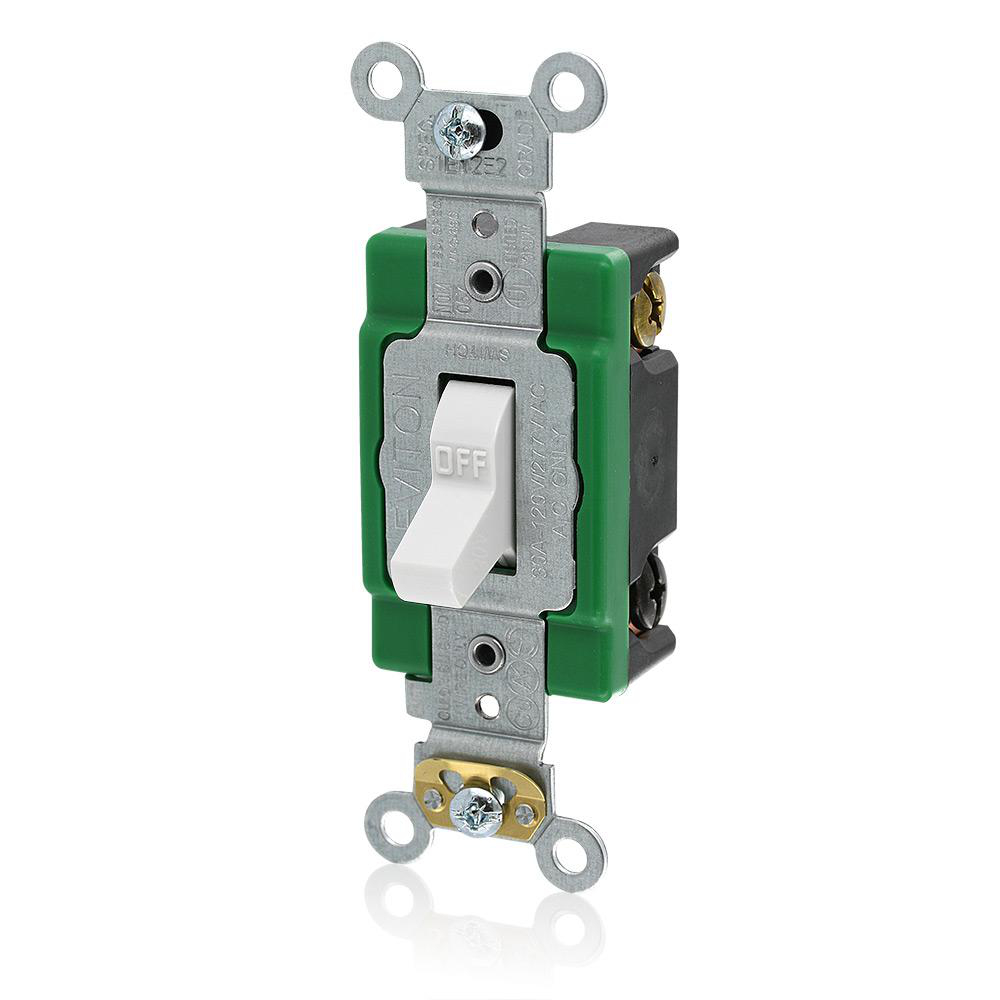

Switch toggle 2-pole standard 30A 120/277V white

Manufacturer: Leviton Manufacturing | Catalog # 3032-2W | Electrozad South Part # 284828
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Installation / Instruction Manual MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL I INSTALL ASSEMBLY INSTRUCTIONS URL
Extra heavy duty specification grade AC toggle switch. Double-pole, standard. Self grounding. Back and side wired. Heavy gauge copper alloy brush arm for superior performance. Large silver alloy contacts for long life prevent sticking, welding and excessive pitting. Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance.

Technical Information

Action
DP
Actuator
Toggle
Amperage
24 A
Applications
Commercial
Body Material
Thermoplastic
Connection Type
Back Wired,Side Wired
Device Type
Toggle Switch
Grade
Industrial
Grounding
Self-Grounding
Horsepower
120 V
Max Current
24 A
Mounting Type
Box
NEMA
WD-1
Number of Poles
2
Operating Temperature
-40 degrees C
Size
46 H x 1.31 W x 13 D IN
Standard
CSA,UL
Storage Temperature
-40 degrees C
TC Connection
Back Wired;Side Wired
Termination Type
Back Wire,Side Wire
Type
Toggle Switch
Voltage
120/277 V

Manufacturer Information

Brand
Leviton
Sub Brand
Industrial Switches

General Product Info

12-Digit UPC
078477836804
Color
White
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477836804
Product UPC
07847783680

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
