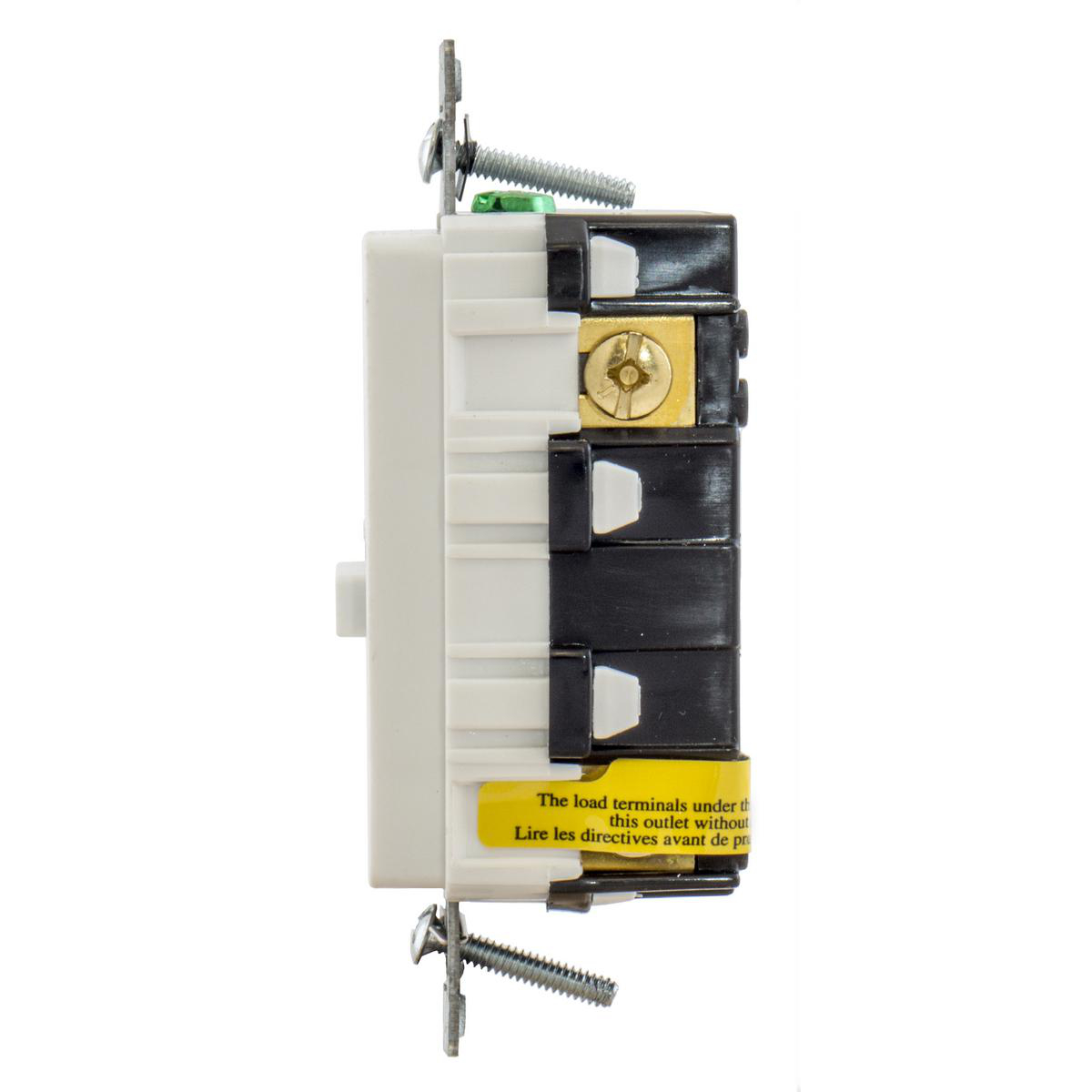

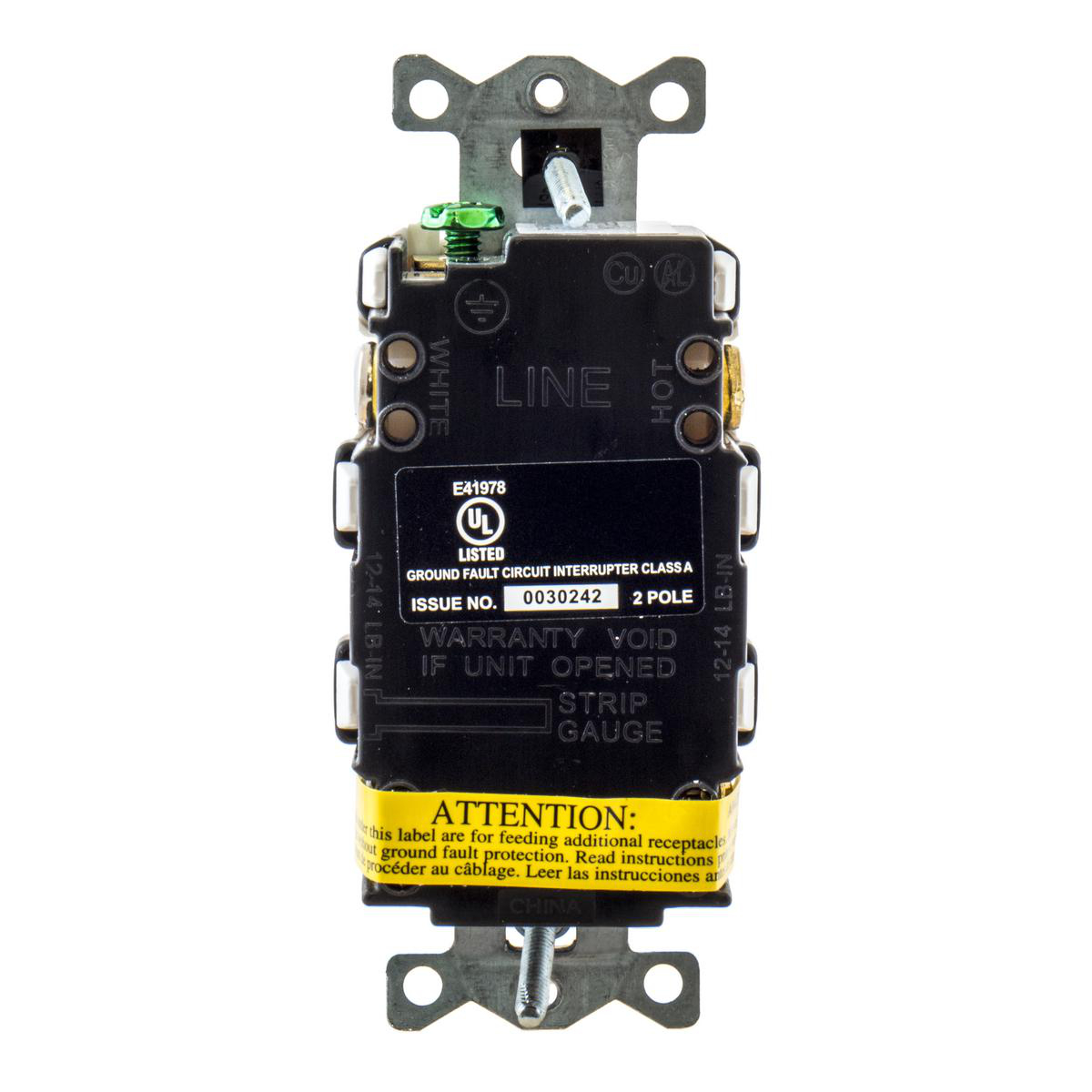

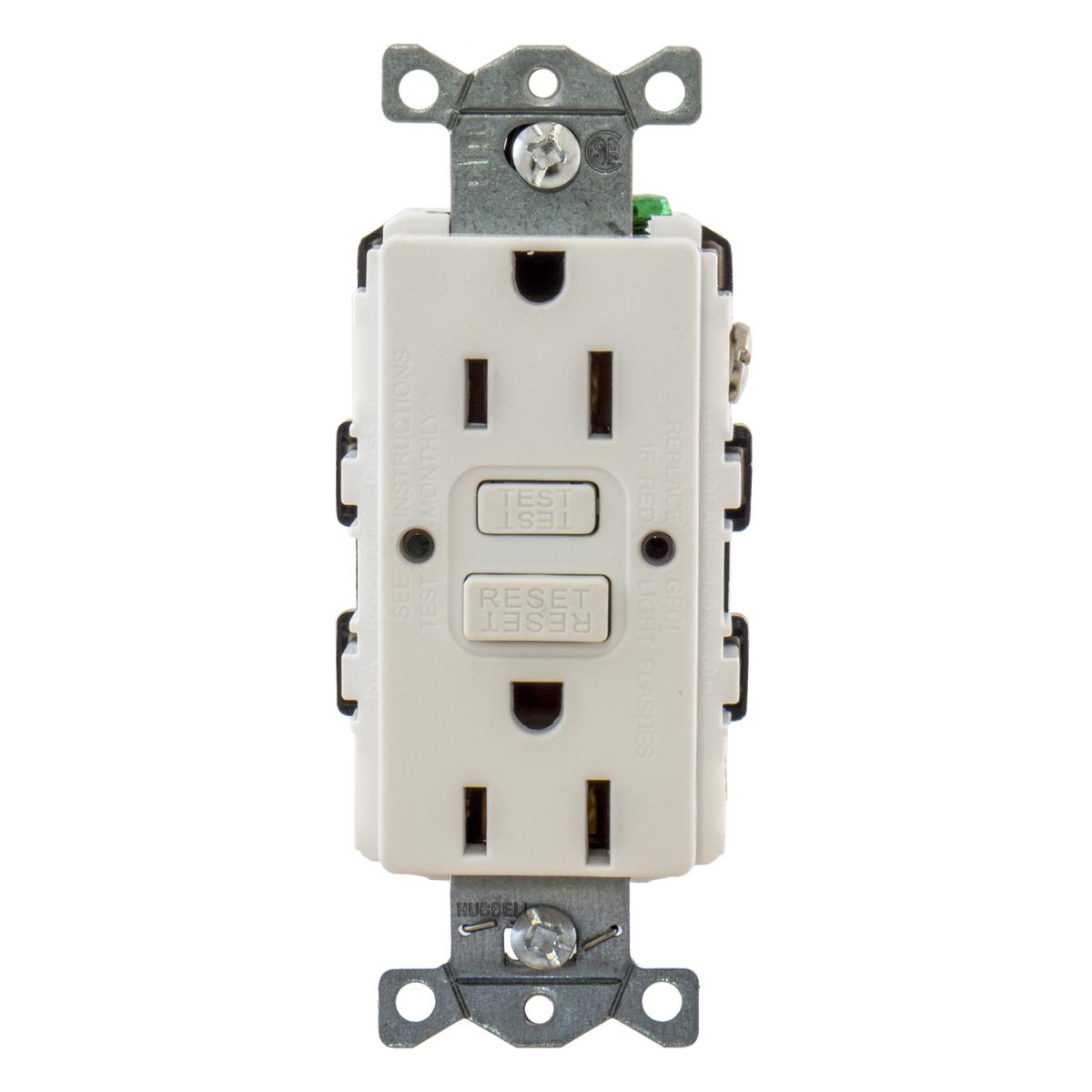

Receptacle GFCI 0.5HP NEMA 5-15R 15A 125V white

Manufacturer: Hubbell Wiring Devices | Catalog # GFRST15W | Electrozad South Part # 286525
*Call For Price*
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Commercial standard GFCI receptacle. Patented AUTOGUARD® self test technology includes disconnecting power to the receptacle if critical components are damaged and GFCI protection is lost. Internal back wiring clamp and guide for quick and secure termination.

Technical Information

Amperage
15 A
Applications
Commercial Grade
Conductor Size
14-12 AWG
Current
15 A
Grade
Commercial
Material
Thermoplastic
Mounting Type
Screw, Flush
NEMA
5-15R
Number of Poles
2
Number of Wires
3-Wire Grounding
Size
Standard
Standard
NEC®
Style
Standard
TC Connection
Terminal Screws
Type
Straight Blade, Decorator, Self-Test
Wattage
1500 W
Wire Size
#14 AWG to #12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Straight Blade GFCI Receptacles

General Product Info

12-Digit UPC
883778122071
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Finish
Matte
GTIN
00883778122071
Product UPC
88377812207

Dimensions

Height
7.044 in
Length
5.048 in
Width
2.048 in

Certifications & Compliance

Country of Origin
China
Overview
  • Triple wipe construction
  • Patented AUTOGUARD® self test technology
  • Internal back wiring clamp and guide for quick and secure termination
