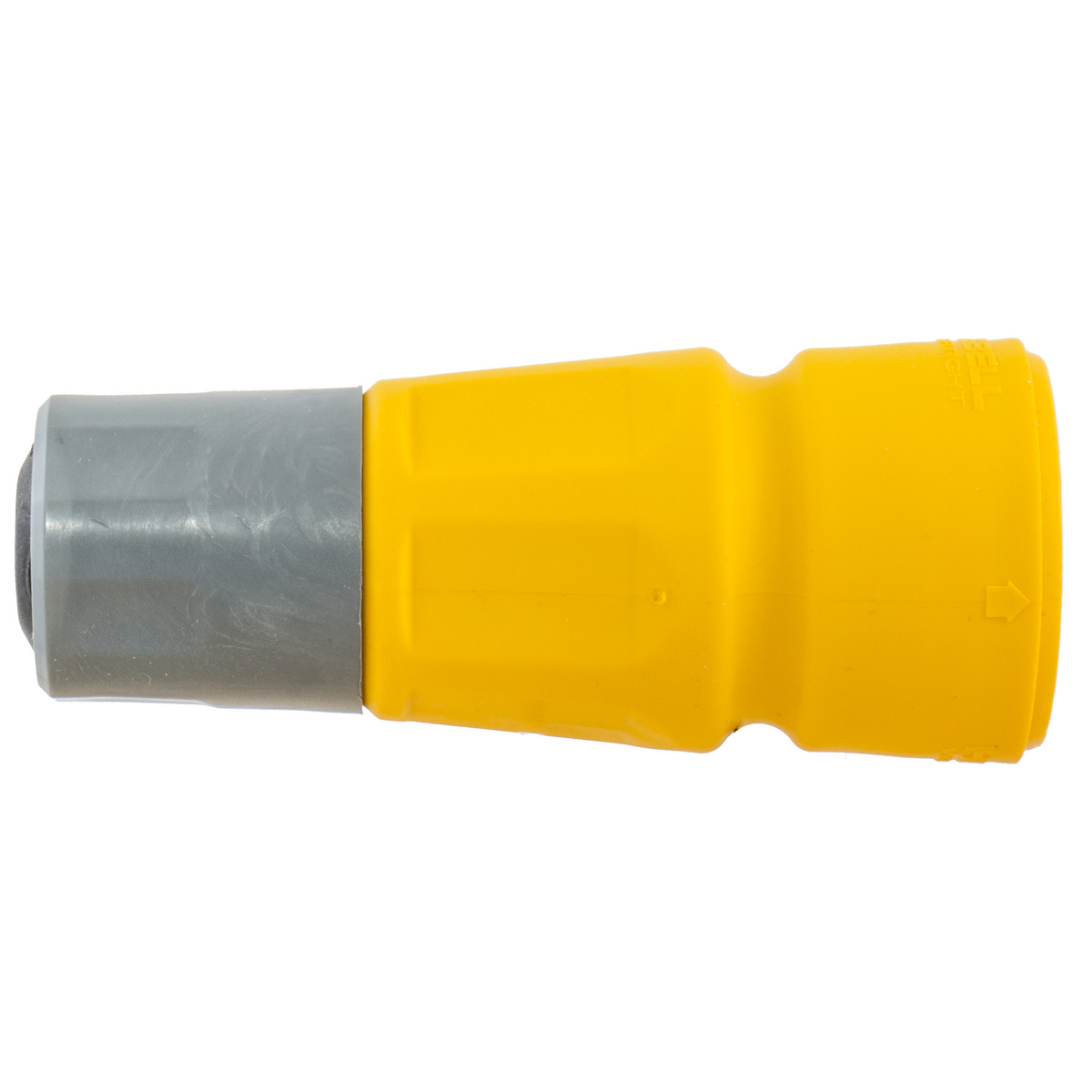

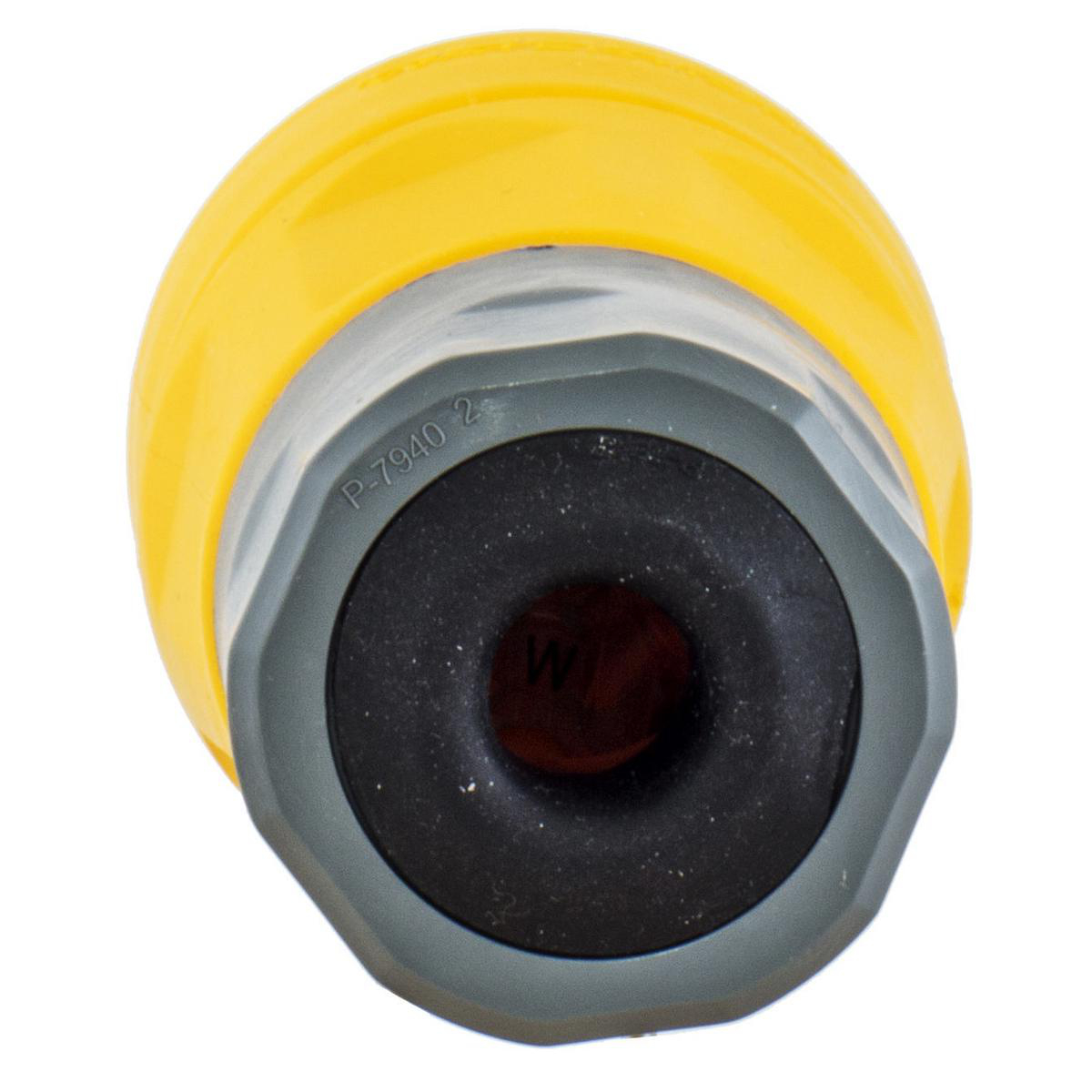

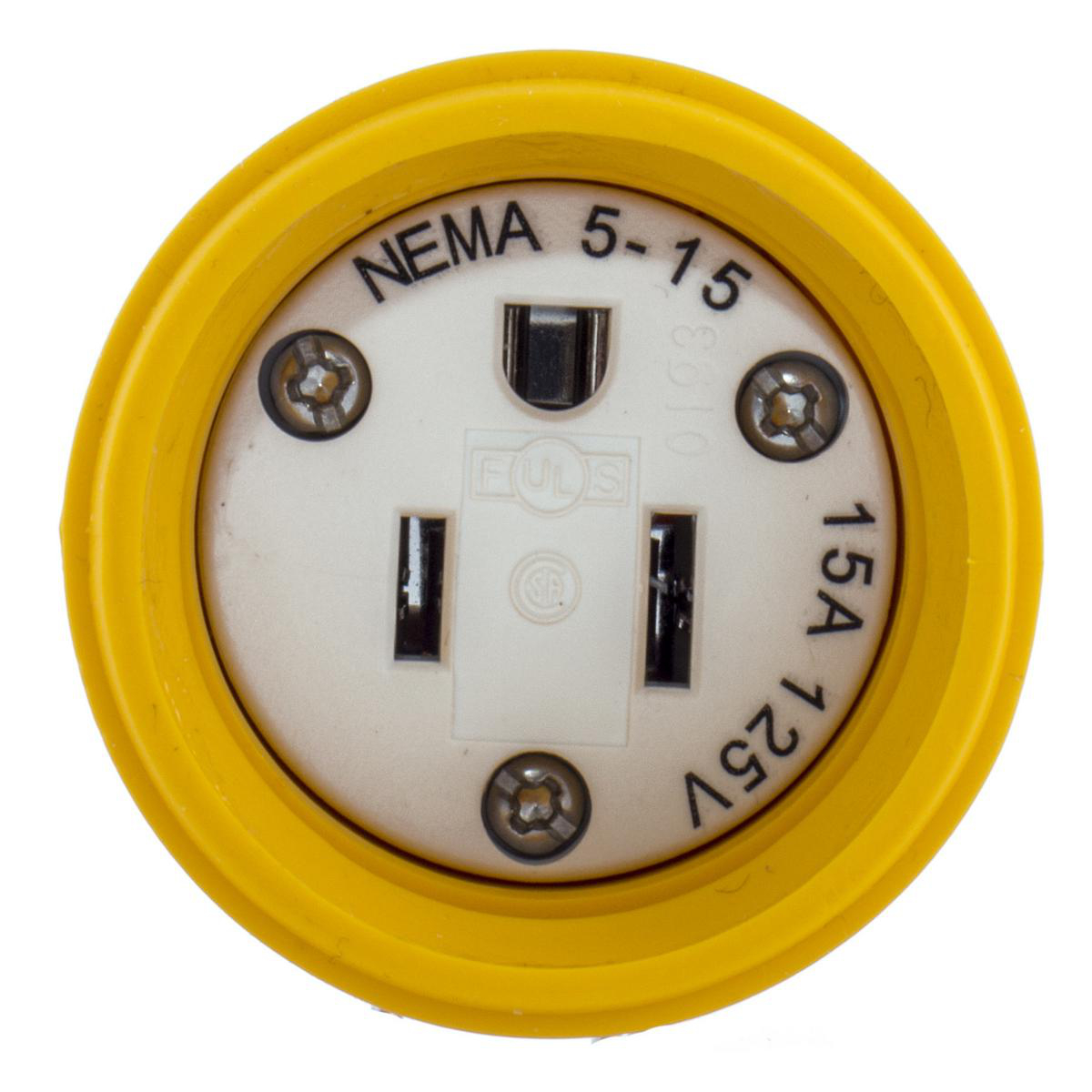

Connector straight blade PVC 0.5HP NEMA 5-15R 15A 125V yellow

Manufacturer: Hubbell Wiring Devices | Catalog # HBL15W47A | Electrozad South Part # 286739
$66.21 /ea
pc
Log in or register to view your price, purchase history, and more!
13 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Straight blade connector. PVC-yellow housing, polycarbonate-clear retainer, nylon cord and brass terminal. Smooth body design minimizes collection points simplifying the wash down process. Strain relief nut always seals on the body, minimizing debris collection. Stainless steel hardware and corrosion-resistant connection points.

Technical Information

Amperage
15 A
Applications
Industrial/Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
14-12 AWG
Connection Type
Screw Terminal
Contact Material
Nickel Plated Brass
Current
15 A
Material
Thermoplastic Elastomer
NEMA
5-15R
Number of Conductors
3-Wire Grounding
Number of Poles
2,2
Number of Wires
3
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size
Standard Sized Product
Standard
12,4X,6,6P,ANSI Standards,CSA,CSA C22.2 No. 42,IP69K Rating,Meets NEMA WD-1,Type 4,UL,UL498,WD-6
TC Connection
Terminal Screws
Temperature Rating
-40 to 60 degrees C Continuous
Type
Watertight, Standard
Voltage
125 V
Wire Count
3

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Elastogrip®

General Product Info

12-Digit UPC
783585131276
Color
Yellow
Environmental Conditions
Water Tight
GTIN
00783585131276
Product UPC
78358513127
Weight
0.2 lb

Dimensions

Diameter
1.85 in
Height
9.800 in
Length
4.42 in
Width
5.5 in

Certifications & Compliance

Country of Origin
China
Overview
  • Stainless steel hardware and corrosion-resistant connection points
  • Smooth body design minimizes collection points simplifying thewash down process
  • Strain relief nut always seals on the body, minimizing debris collection
