Jack module Cat5e RJ45 8-positions blue

Manufacturer: Panduit | Catalog # CJ5E88TGBU-24 | Electrozad South Part # 287171
$14.85 /ea
ea
Order in multiples of 24 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

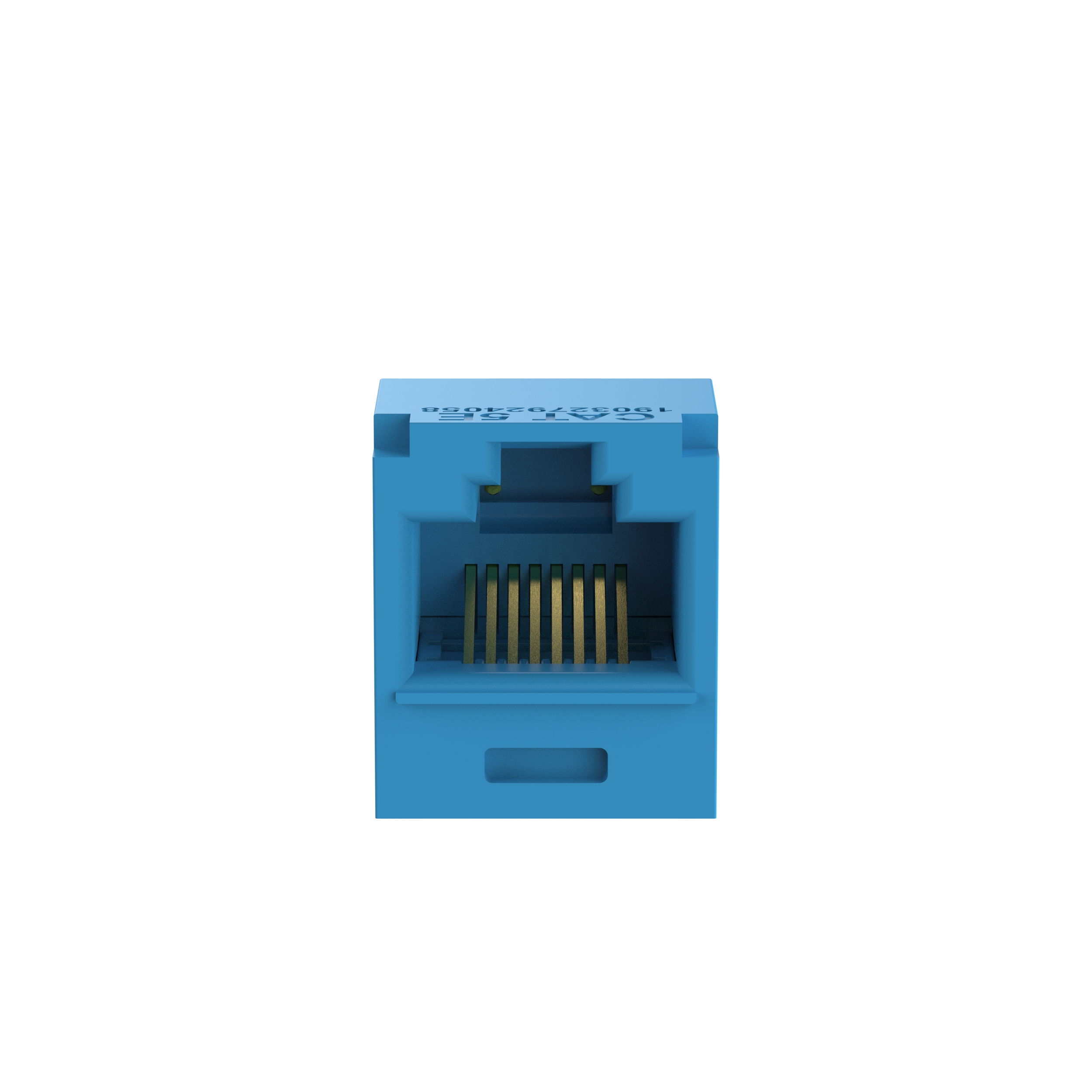

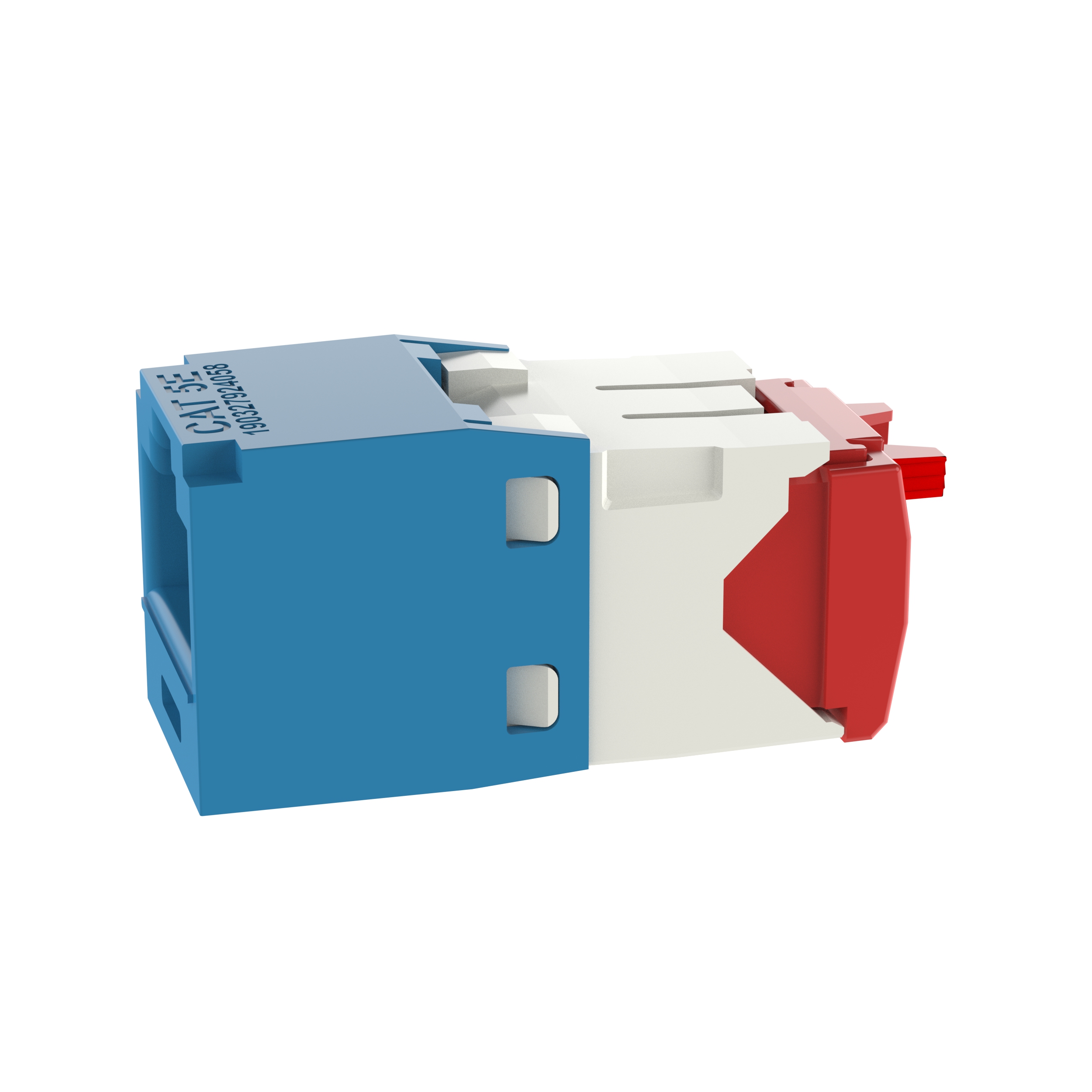

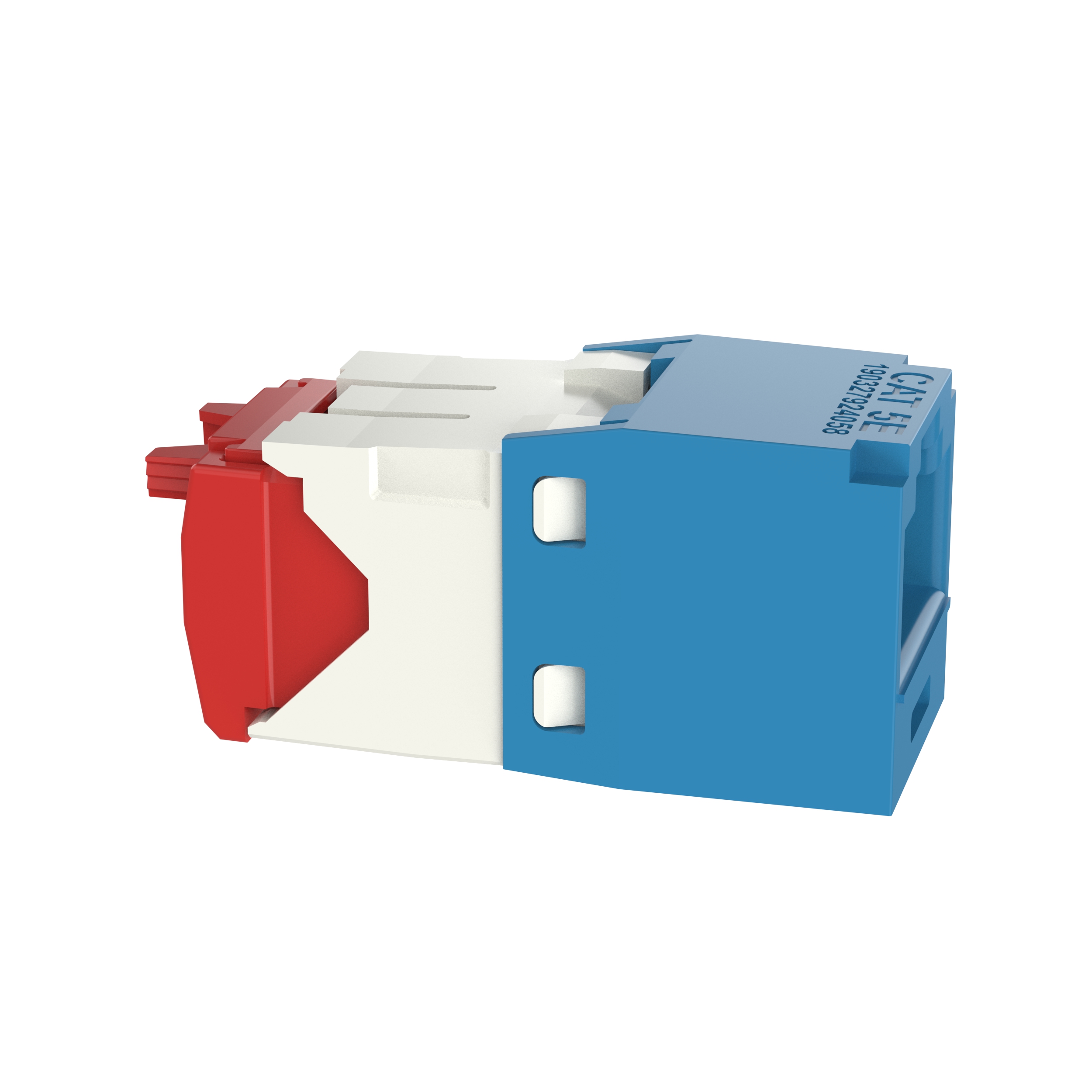

The Mini-Com® Cat 5e UTP RJ45 TG-Style Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is Blue.

Technical Information

Applications
Unshielded
Cable Entry
T568A/T568B
Cable Size
24-22 AWG
Cable Type
Category 5e
Material
ABS
Max Operating Temperature
167 degrees F
Minimum Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 5e
Temperature Rating
-10 to 65 degrees C
Type
Unshielded

Packaging

Package Qty
24

Manufacturer Information

Brand
Panduit
Sub Brand
Mini-Com, PanNet

General Product Info

12-Digit UPC
074983011018
Color
Blue
GTIN
00074983011018
Product UPC
07498301101
UNSPSC
43223301

Dimensions

Depth
1.5 in
Height
0.71 in
Overall Length
1.5 in
Width
15.7 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Costa Rica
