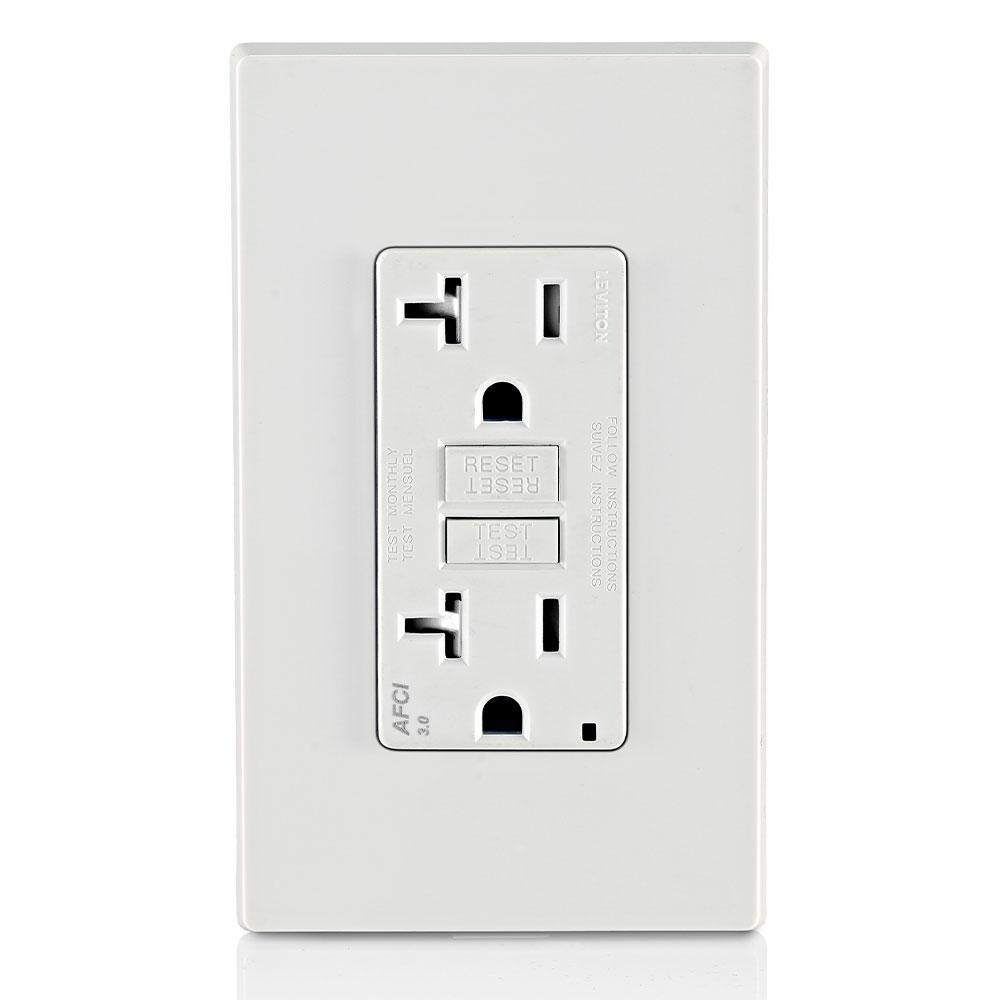

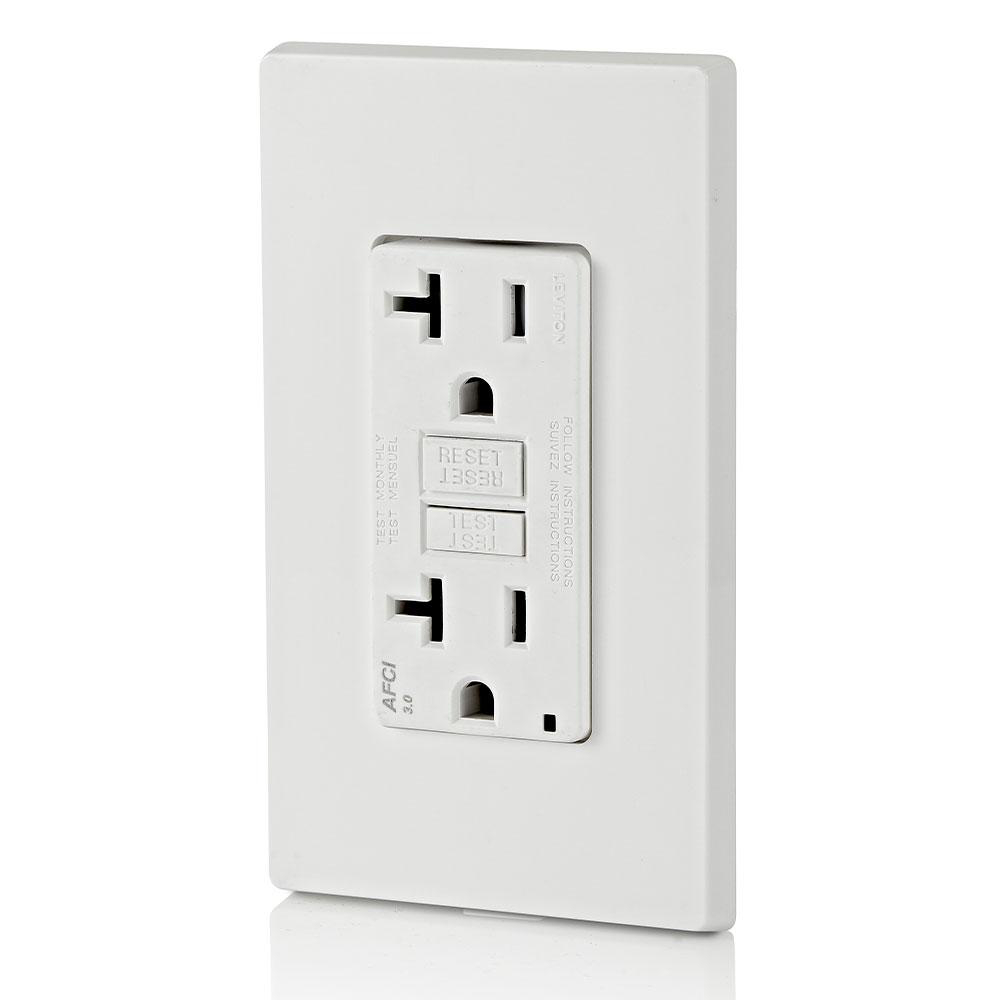

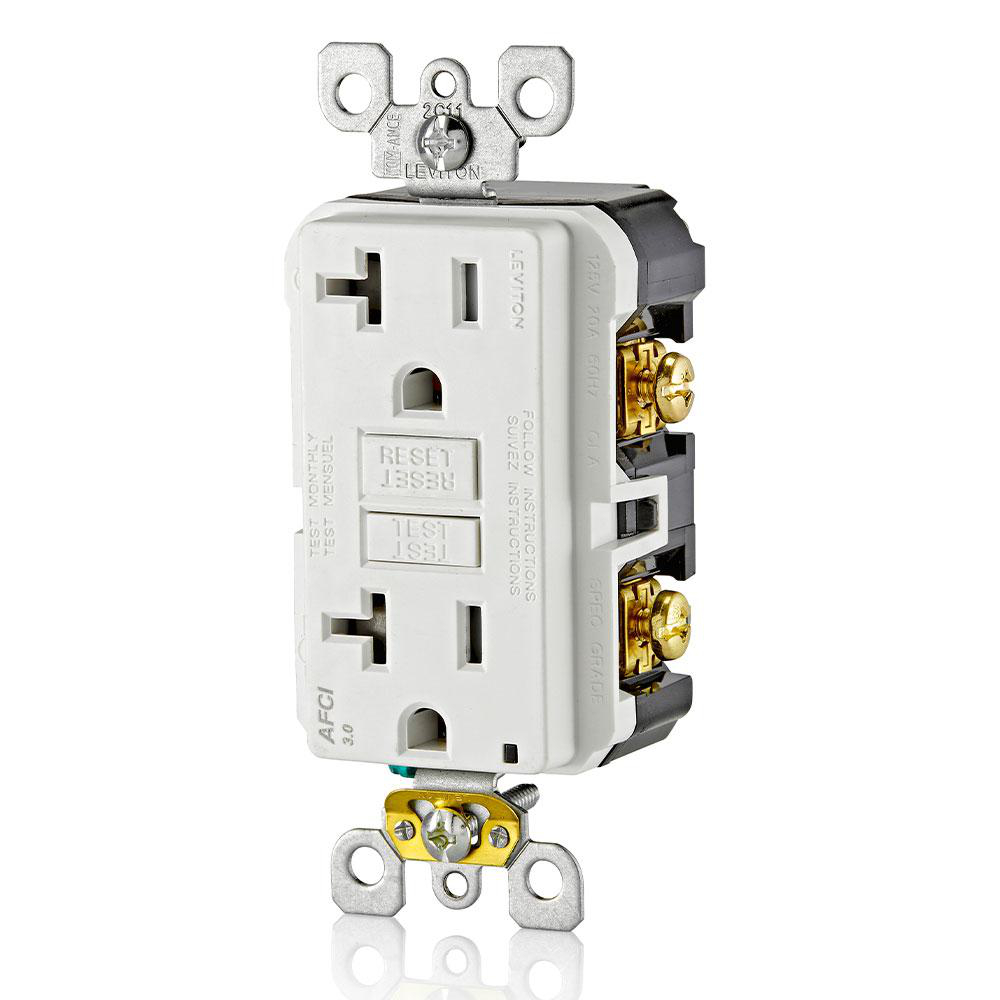

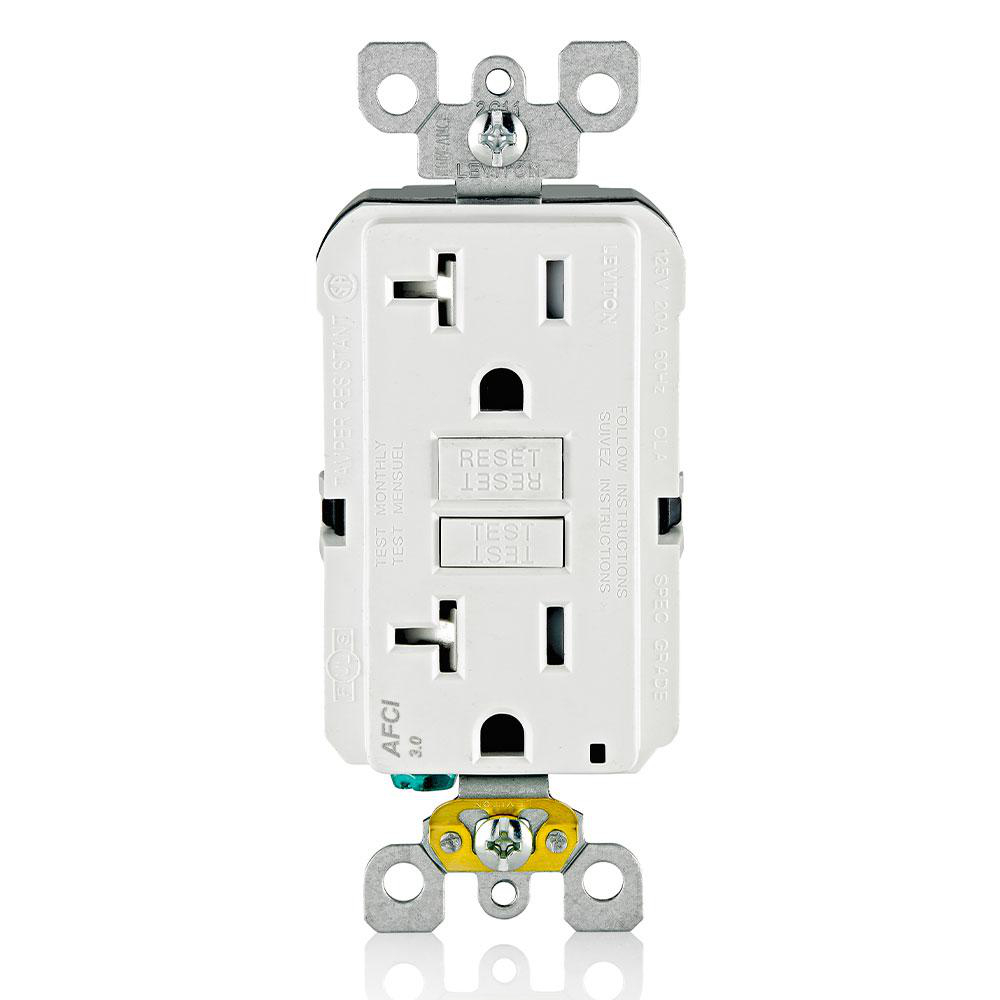

Receptacle tamper-res pc AFCI 2P3W 125V 20A wht

Manufacturer: Leviton Manufacturing | Catalog # AFTR2-W | Electrozad South Part # 287565
$56.82 /ea
ea
Log in or register to view your price, purchase history, and more!
14 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Installation / Instruction Manual MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL I INSTALL ASSEMBLY INSTRUCTIONS URL
The SmartlockPro® outlet branch circuit (OBC) AFCI receptacle offers advanced technology to help protect against electrical fires resulting from arc-faults. Designed to detect a wide range of potentially hazardous arc-faults resulting from damage in branch circuit wiring as well as extensions to branches such as appliances and cord sets, the OBC AFCI responds by interrupting power. This helps reduce the likelihood of the home...s electrical system being an ignition source of a fire.

Technical Information

Amperage
20 A
Applications
For Residential/Commercial use
Body Material
Polycarbonate,Polycarbonate
Connection Type
Back and Side Wire
Contact Material
Double-Wipe Brass
Face Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-2 Per UL 94,Rated V-2 Per UL 94
Frequency
60 Hz
Grade
Residential/Commercial
Grounding
Self-Grounding
Horsepower
1 hp
Material
Polycarbonate
Mounting Type
Wallplate, Surface
NEMA
5-20R
Number of Poles
2
Number of Wires
3
Operating Temperature
-35 to 66 degrees C
Rated Insulation Voltage
1250 V
Size
1.68 W x 4.21 H x 1.27 D IN
Standard
ANSI C-73,CSA,CSA,UL,UL
TC Connection
Back Wired;Side Wired
Temperature Rating
-35 degrees C to 66 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Outlet, Tamper-Resistant
Voltage
125 V
Wattage
745.7 W
Wire Count
3,3

Manufacturer Information

Brand
Leviton
Sub Brand
Smart-Lock Pro

General Product Info

12-Digit UPC
078477574980
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTIN
00078477574980
Product UPC
07847757498

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
China
