ABB SU201M-C15 BREAKER 15A 1POLE 480V 277V MCCB CIRCUIT | Electrozad South

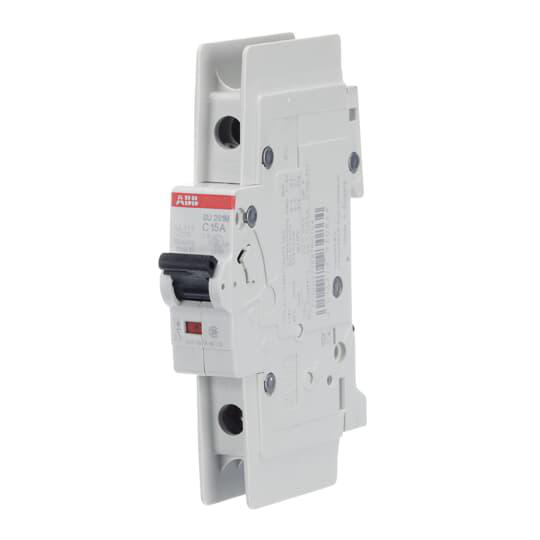

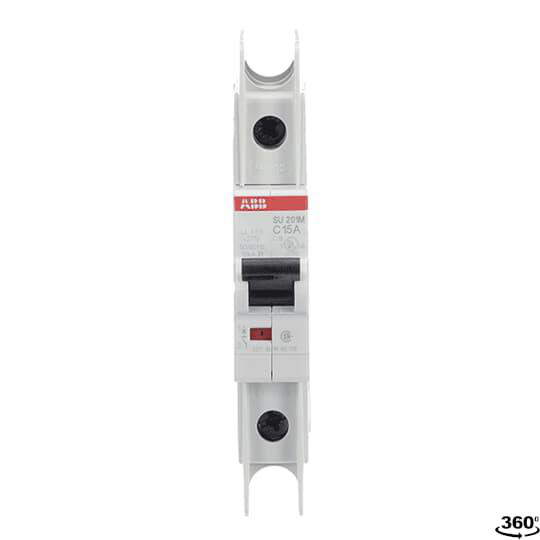

Product image for ABB SU201M-C15 BREAKER 15A 1POLE 480V 277V MCCB CIRCUIT
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

ABB SU201M-C15 BREAKER 15A 1POLE 480V 277V MCCB CIRCUIT

Manufacturer: ABB Inc | Catalog # SU201M-C15 | Electrozad South Part # 288344
$27.54 /ea
pc
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Brochure CAD Drawing #1
Miniature Circuit Breaker, Rated Current 15 Amps, 1 Pole, Interrupt Rating 10 kA, Trip Curve C, Voltage up to 277/Y480 VAC, 48/96 VDC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, UL 489, CSA 22.2 No. 5

Technical Information

Amperage
15 A
Applications
Branch Circuit Protection
Conductor Size
4-16 AWG
Current
15 A
Interrupt Rating
10 kA
Mounting Type
DIN Rail
Number of Poles
1
Operating Temperature
55 degrees C
Standard
CSA 22.2 No. 5,EN 60947-2,IEC,UL 489
Temperature Rating
-25 to 55 degrees C
Terminal Type
Screw Terminals
Trip Type
C-Curve
Type
High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Voltage
277/480 V

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
888614422230
Environmental Conditions
3 Degree of Pollution
GTIN
04016779930864
Product UPC
88861442223

Dimensions

Height
111 mm
Length
69 mm
Width
17.5 mm
