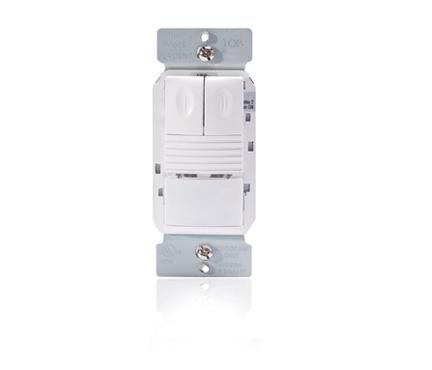

Product image for Sensor occupancy wall switch 2-relay 120/277V white
Image thumbnail 0
Image thumbnail 1
Email

Sensor occupancy wall switch 2-relay 120/277V white

Manufacturer: Watt Stopper | Catalog # PW-302-W | Electrozad South Part # 288384
$135.44 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Installation / Instruction Manual D BRAND LOGO IMAGE URL I INSTALL ASSEMBLY INSTRUCTIONS URL
Passive infrared wall switch occupancy sensor turns lights ON and OFF based on occupancy. It contains two relays for controlling two independent lighting loads or circuits. High sensitivity and dense coverage for exceptional performance. Two relays for control of two separate lighting loads or circuits. Defaults to manual-ON to 50% operation for maximum energy savings. It allows multi-way control from one of up to four control location.

Technical Information

Amperage
4.3 A
Applications
For Offices, Conference Rooms, Lunch/Break Rooms, Commercial
Enclosure
Plastic Housing
Indicator
True
Indoor Outdoor
Indoor
Material
Plastic
Mounting Type
Strap, Surface
Number of Connections
5.0
Operating Cycles
1000000
Operating Temperature
35degrees C
Sensing Range
1050 sq ft
Sensor Type
Passive Infrared
Standard
CSA C22.2 No. 14,IEC 60947-3,UL 508
Temperature Rating
35 degrees C
Type
Dual Relay, Indoor, Wall Switch

Manufacturer Information

Brand
WattStopper
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
754182935321
Color
White, Gloss
Environmental Conditions
95% Humidity, UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTIN
00754182935321
Product UPC
75418293532

Dimensions

Depth
1.81 in
Height
2.73 in
Length
2.73 in
Width
1.75 in

Certifications & Compliance

Country of Origin
China
