LEVITON T5625-E RECEPTACLE SWITCH COMBO ROCKER STYLE DECORA SWITCH AND RECEPTACLE TAMPER RESISTANT BLACK

Manufacturer: Leviton Manufacturing | Catalog # T5625-E | Electrozad South Part # 289475
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet

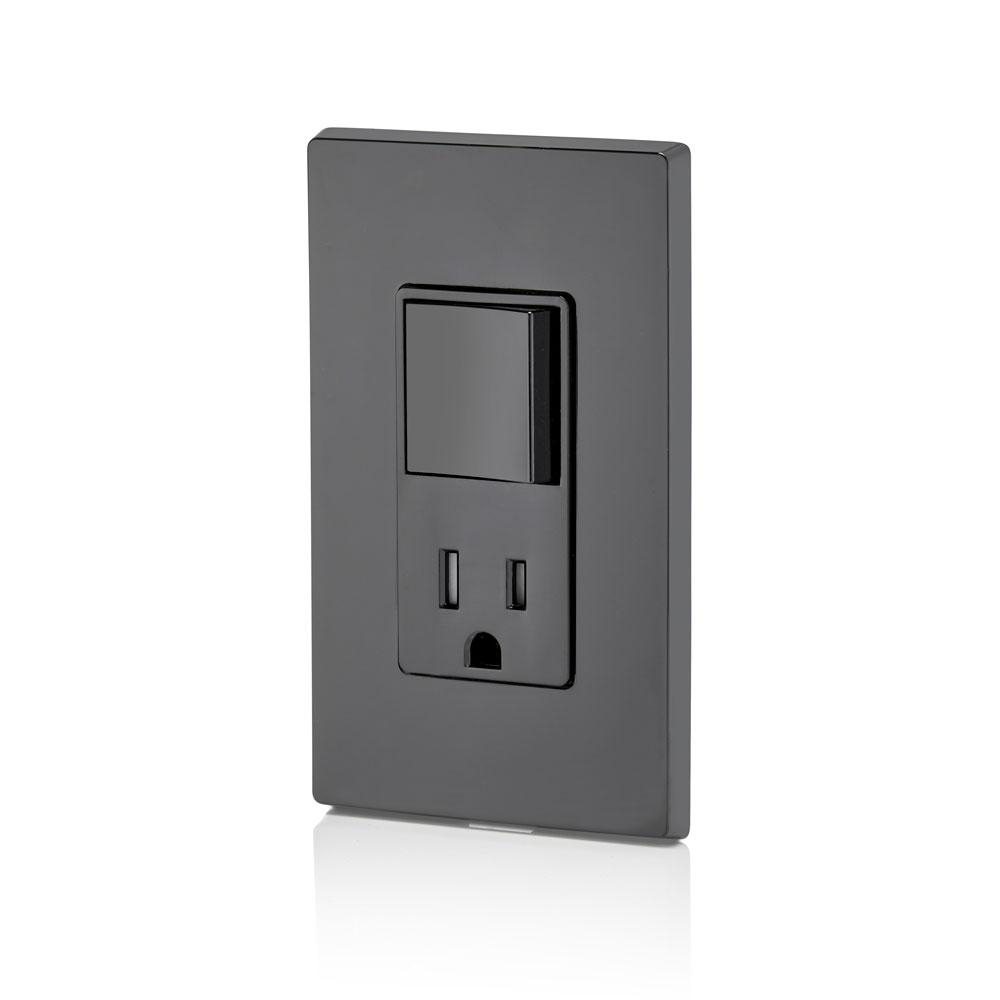

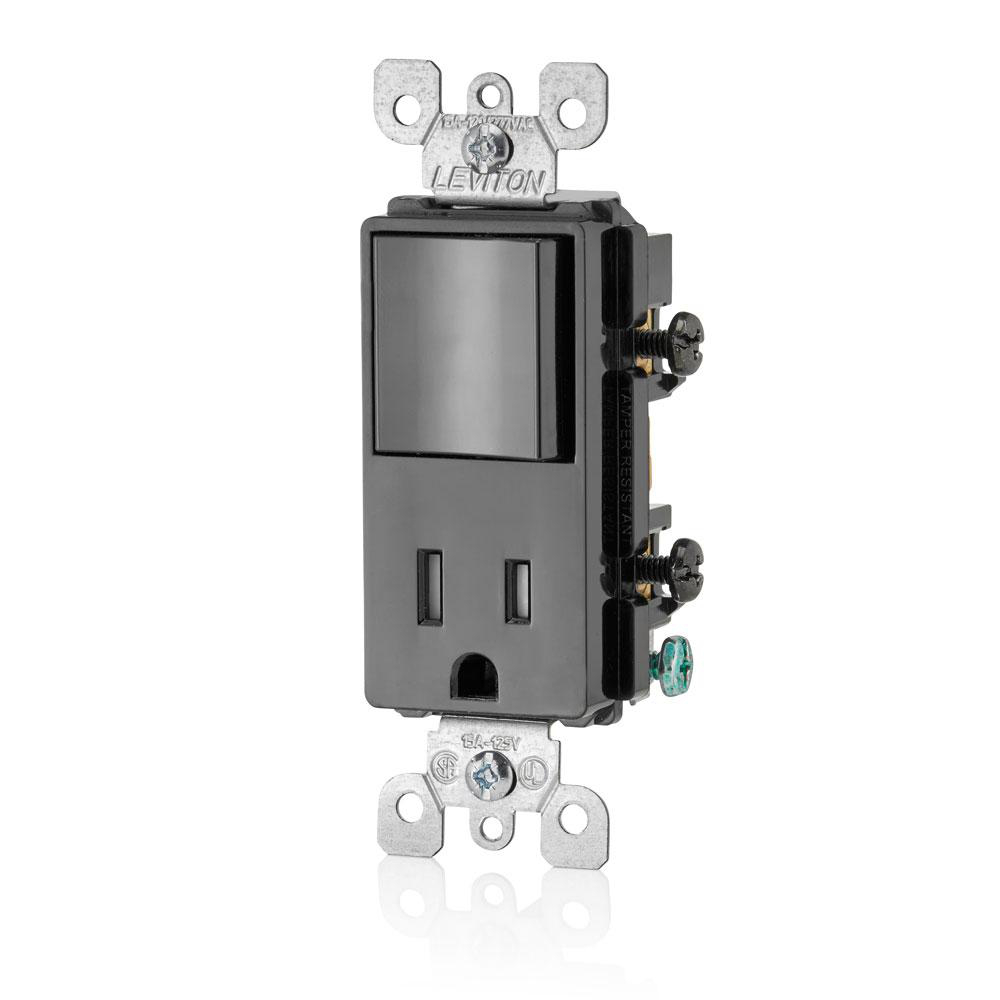

Tamper-resistant rocker style single pole combination decora switch and receptacle, NEMA 5-15R.

Technical Information

Amperage
12 A
Applications
Commercial use
Body Material
Thermoplastic
Grounding
Grounding
Horsepower
1-1/2 hp
Material
Thermoplastic
Max Current
12 A
Mounting Type
Flush, Screw
NEMA
5-15R
Number of Outlets
1
Number of Poles
1
Standard
CSA Certified (LR 3413),NOM Certified (057),UL Listed (E7458)
Style
Combination Switch
Switch Type
Rocker/Button
Termination Type
Side Wire
Torque
14 lb-in
Type
Tamper-Resistant
Voltage
120 V

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477382356
Color
Black
GTiN
00078477382356
Product UPC
07847738235

Dimensions

Height
4.18 in
Length
1.31 in
Warranty Length
2 yr
Width
1 in

Certifications & Compliance

Country of Origin
Mexico
