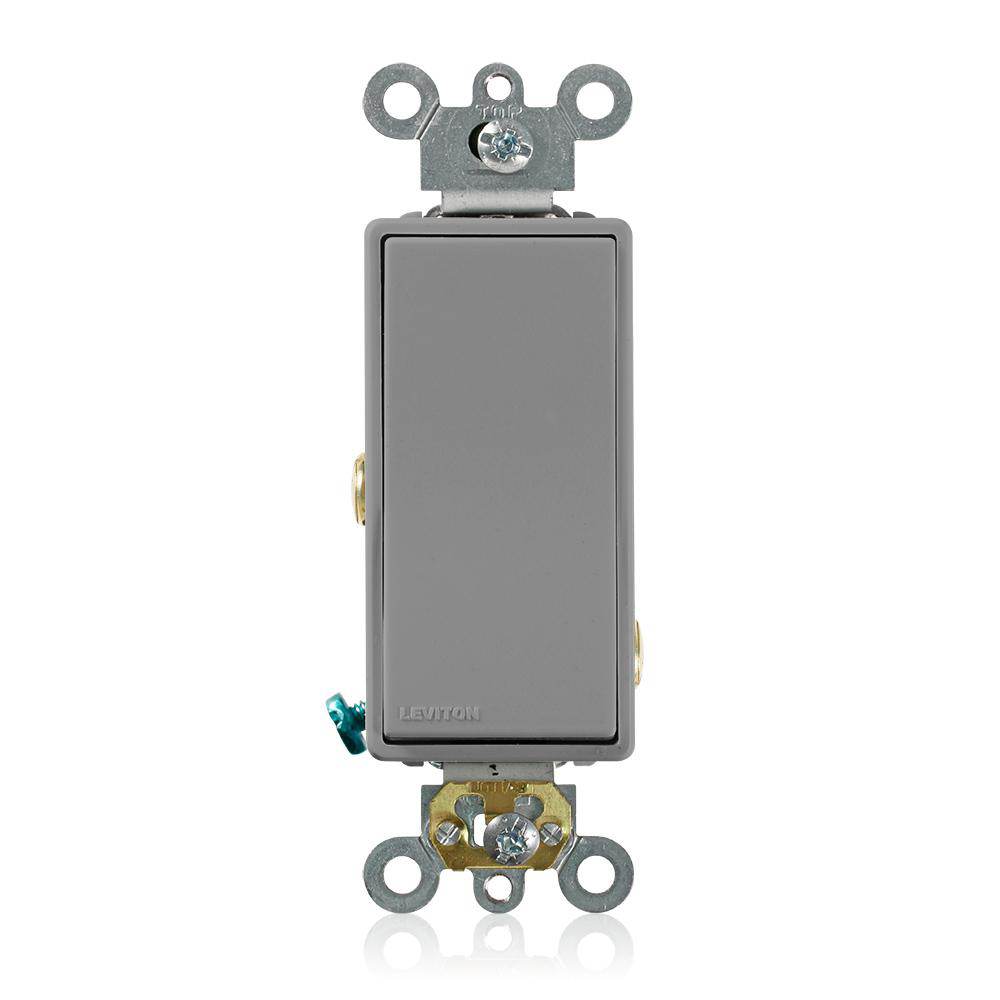

LEVITON 5691-2GY SWITCH 15A 120V/ 277V DECOR PLUS ROCKER 1P COMMERCIAL GRADE GREY

Manufacturer: Leviton Manufacturing | Catalog # 5691-2GY | Electrozad South Part # 290770
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Installation / Instruction Manual MSDS | SDS Safety Sheet
Decora® Plus devices combine designer styling with all the benefits of rugged Commercial Grade construction. The robust product offering includes: single pole, double pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.

Technical Information

Actuator
Rocker
Amperage
12 A
Applications
For Commercial Applications
Body Material
Thermoplastic
Connection Type
Back Wired,Side Wired
Contact Rating
120/277 V
Device Type
Rocker Switch
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Thermoplastic Actuator, Steel Strap
Max Current
12 A
Mounting Type
Box
NEMA
WD-1
Number of Poles
1
Operating Temperature
-40 degrees C
Size
46 H x 1.76 W x 1.42 D IN
Standard
ANSI C-73
TC Connection
Back and Side Wired
Temperature Rating
-40 to 120 degrees C
Temperature Rise
30 degrees C
Termination Type
Back Wire,Side Wire
Torque
12 lb-in
Type
Rocker Switch
Voltage
120/277 V

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477789575
Color
Gray
Environmental Conditions
Flammability (Rated V-2 per UL94)
GTIN
00078477789575
Product UPC
07847778957

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
