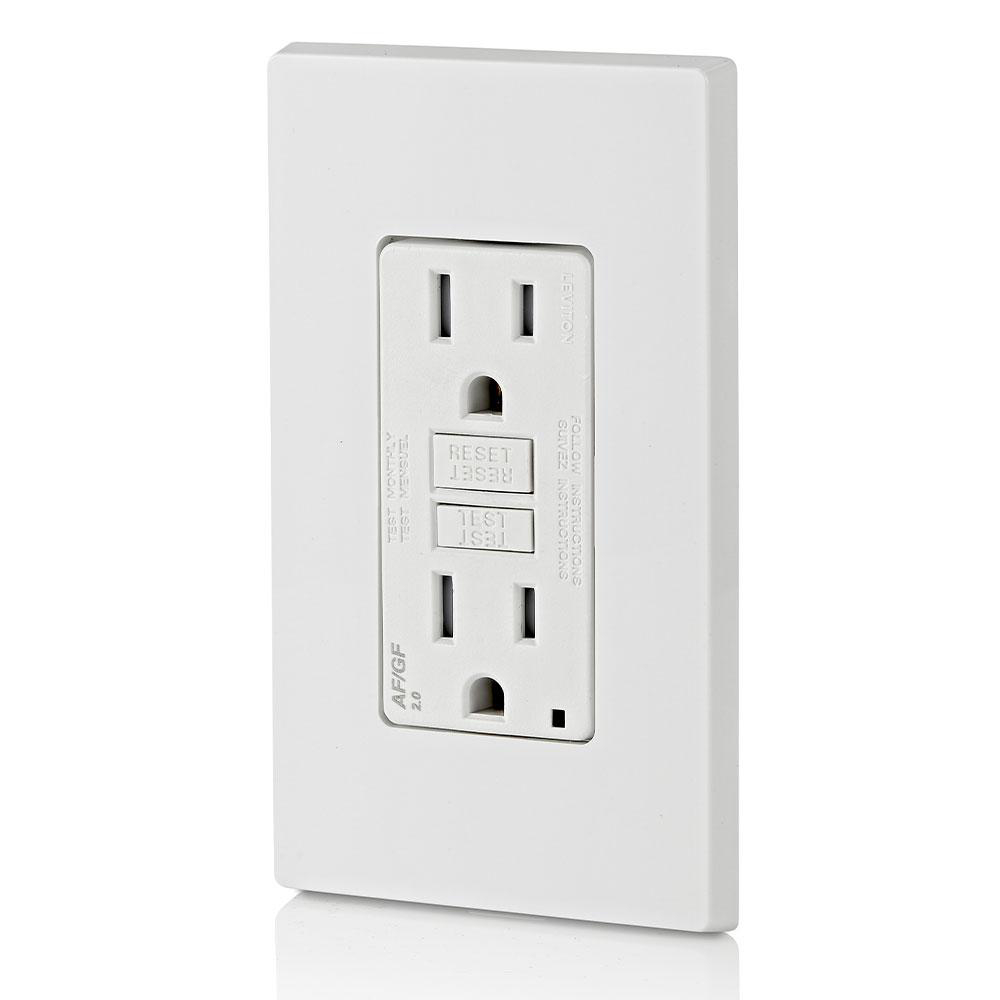

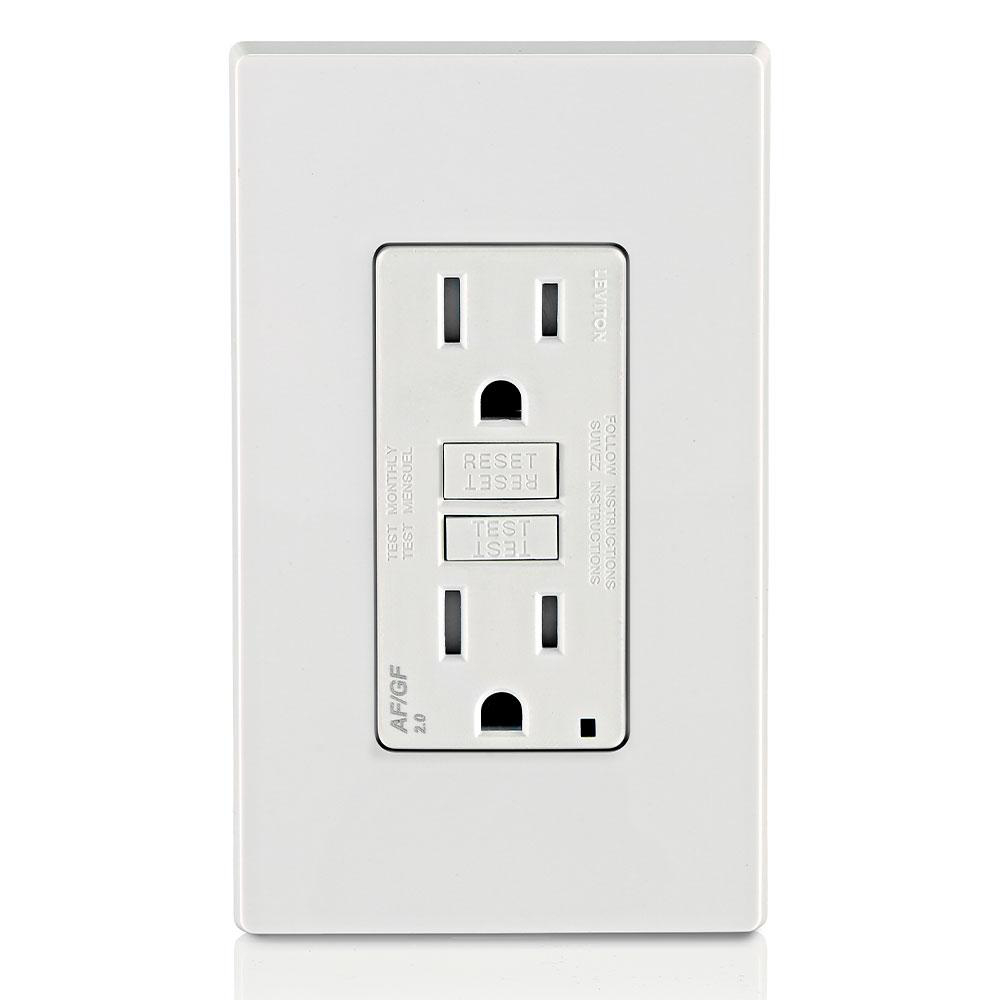

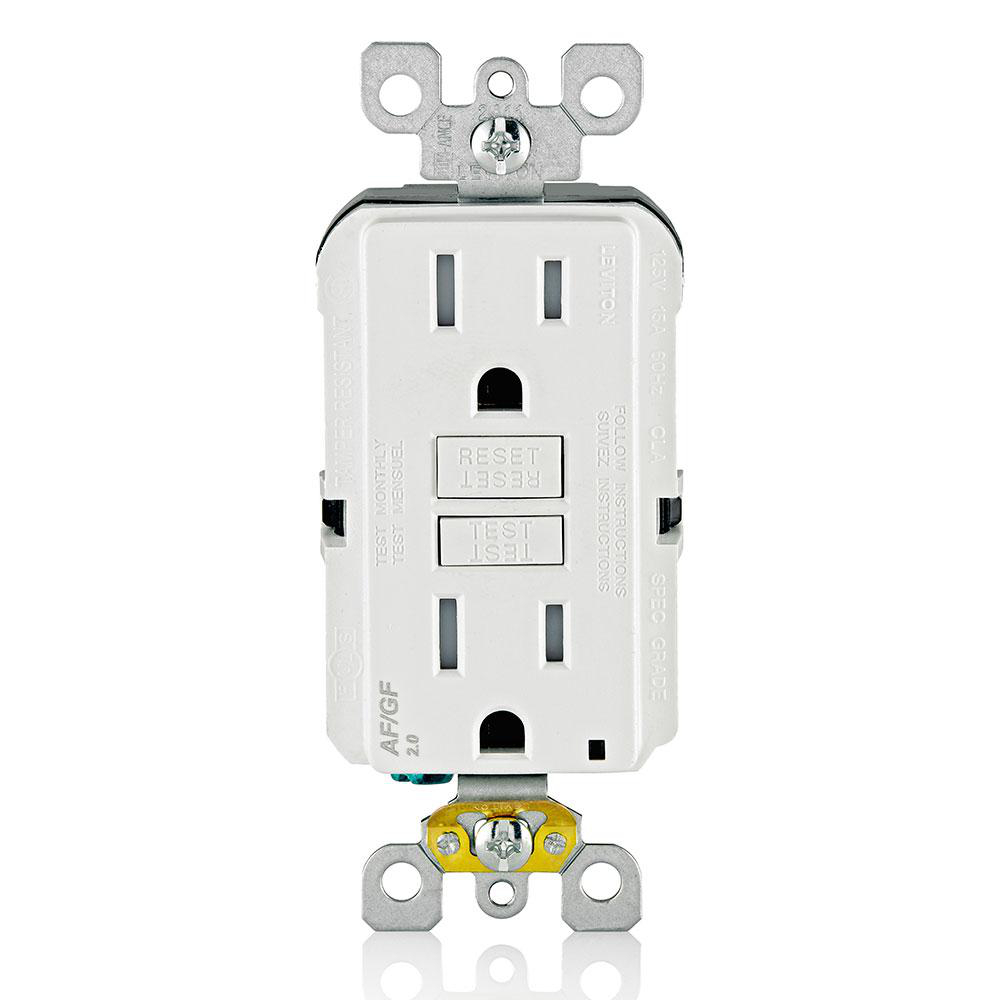

Product image for LEVITON AGTR1-W RECEPTACLE COMBO AFCI AND SELF TEST GFCI 15A 125V WHITE
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 7
Email

LEVITON AGTR1-W RECEPTACLE COMBO AFCI AND SELF TEST GFCI 15A 125V WHITE

Manufacturer: Leviton Manufacturing | Catalog # AGTR1-W | Electrozad South Part # 291301
$46.22 /ea
ea
Log in or register to view your price, purchase history, and more!
8 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet
The SmartlockPro AFCI/GFCI Receptacle offers an effective alternative to a Dual Function breaker and features the convenience of localized test and reset. It provides clear visual indication of status making it intuitive for users to assess various conditions such as power availability and GFCI self-test status. The device also distinguishes between a trip caused by a ground fault and a trip caused by an arc fault.

Technical Information

Amperage
15 A
Body Material
Polycarbonate,Polycarbonate
Face Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-2 Per UL 94,Rated V-2 Per UL 94
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Surface
NEMA
5-15R
Number of Poles
2
Number of Wires
3
Operating Temperature
66 degrees C
Rated Insulation Voltage
1250 V
Standard
UL
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Tamper-Resistant, Self-Test
Wire Count
3,3

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477744505
Color
White
Finish
Enamel Painted, Matte
GTiN
00078477744505
Product UPC
07847774450

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
China
