Cat 6 28 AWG UTP Copper Patch Cord, 3 ft, Blue

Manufacturer: Panduit | Catalog # UTP28SP3BU | Electrozad South Part # 292950
$20.96 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

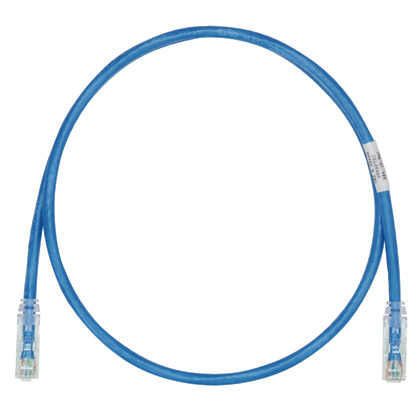

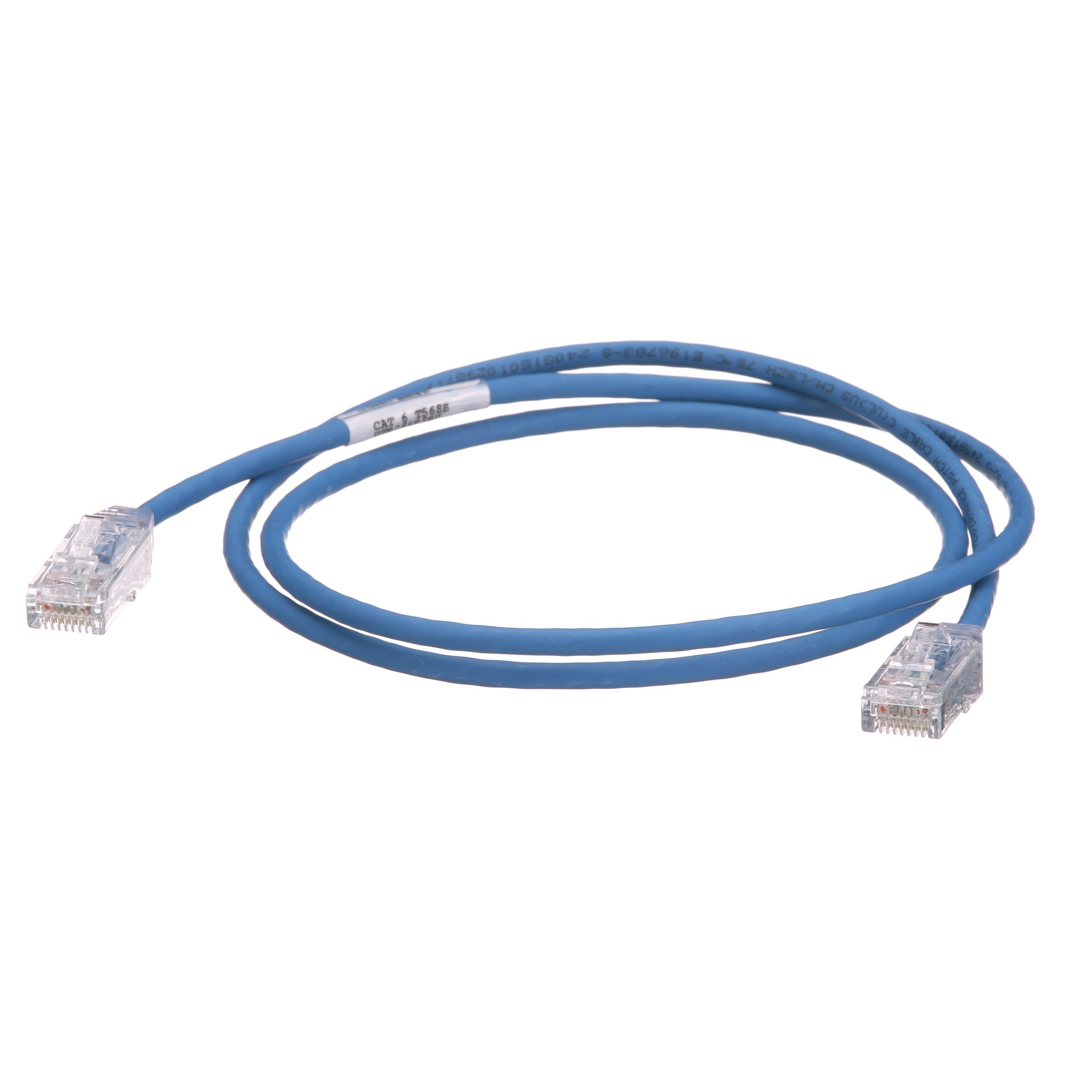

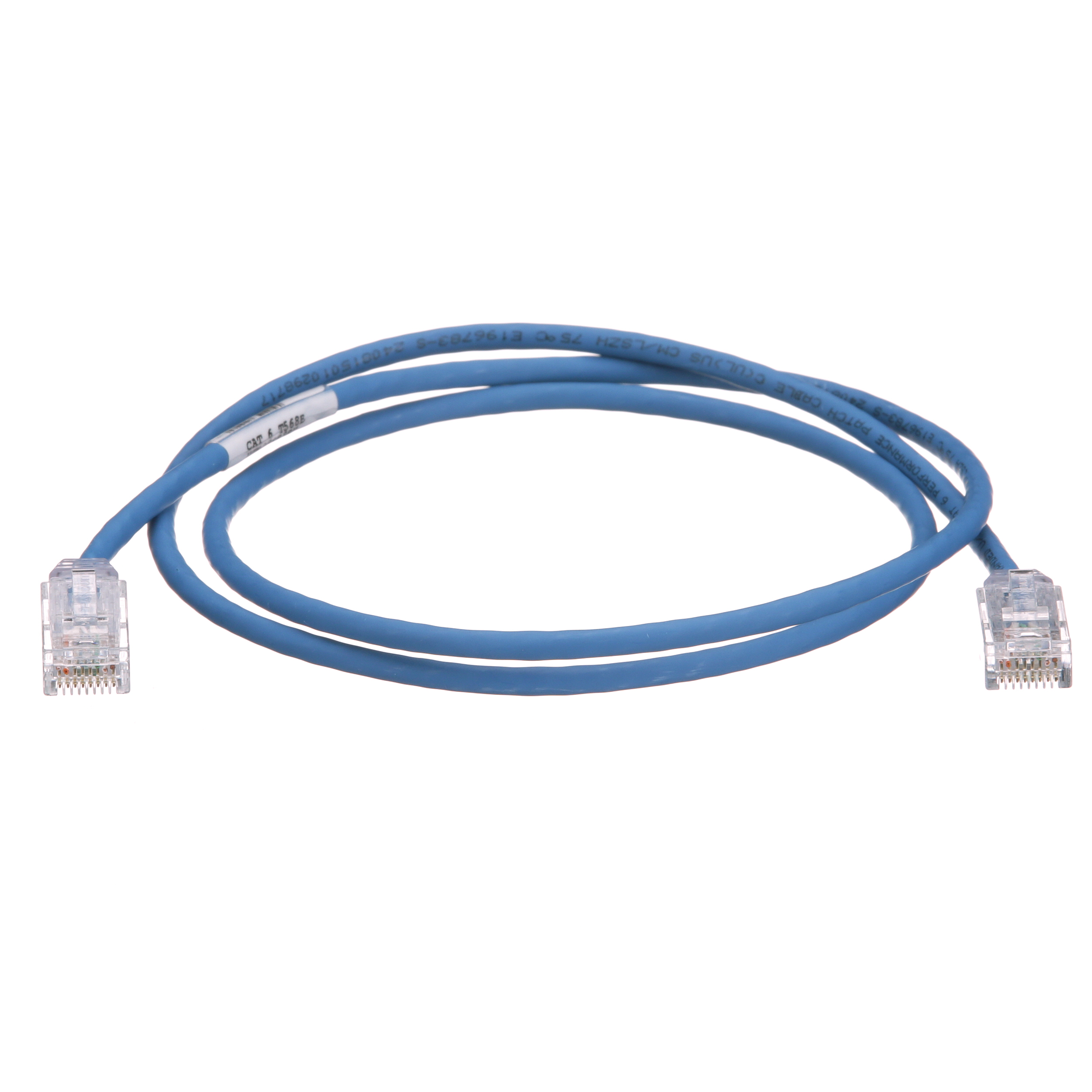

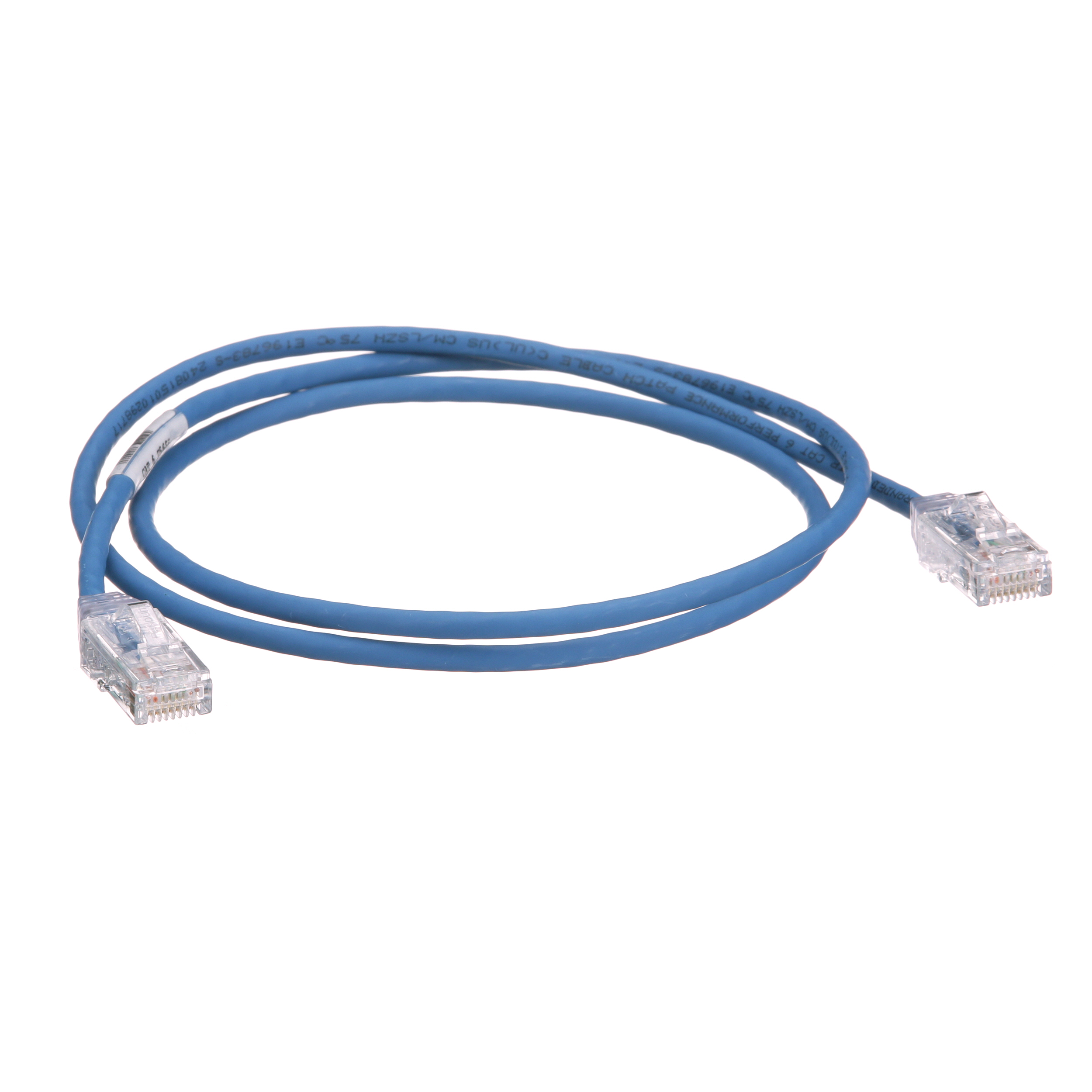

The TX6-28™ Cat 6 UTP Patch Cord is a 3-Foot, 0.150-inch (3.8mm) diameter, Blue cord constructed of 28 AWG, unshielded, twisted pair, stranded, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Technical Information

Applications
(1) 1000BASE-T (Gigabit Ethernet), 100BASE-T (Fast Ethernet) (2 ) 155 Mb/s ATM, 622 Mb/s ATM (3) Digital video and broadband/baseband analog video (4) Voice/data systems (5) Voice over Internet Protocol (VoIP)
Boot Color
Clear
Cable Type
28 AWG U/UTP
Conductor Material
Copper
Conductor Size
28 AWG
Conductor Type
Stranded
Connector Type
Modular Plug
Material
Copper
Max Operating Temperature
167 degrees F
Minimum Operating Temperature
-10 degrees C
Performance Level
Category 6
Plug Type
Modular Plug
Temperature Rating
167 degrees F
Type
Category 6, Small Diameter
Wire Size
28 in

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983651979
Color
Blue
GTIN
00074983651979
Jacket Material
LSZH Material
Product UPC
07498365197

Dimensions

Cable Length
3 ft
Length
3.00
Outer Diameter
0.15 in
Outside Diameter
3.8 mm
Overall Length
3 ft

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
China,Costa Rica,Romania
