Lug 1hole long cu black 2/0AWG 1/2in Color-Keyed

Manufacturer: ABB | Thomas & Betts | Catalog # 54951BE | Electrozad South Part # 293551
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL

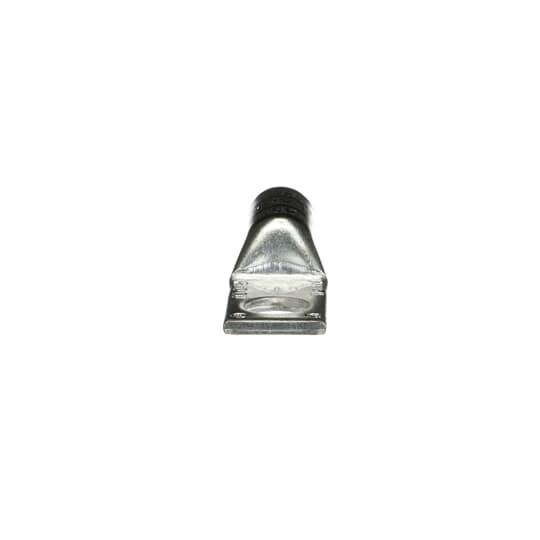

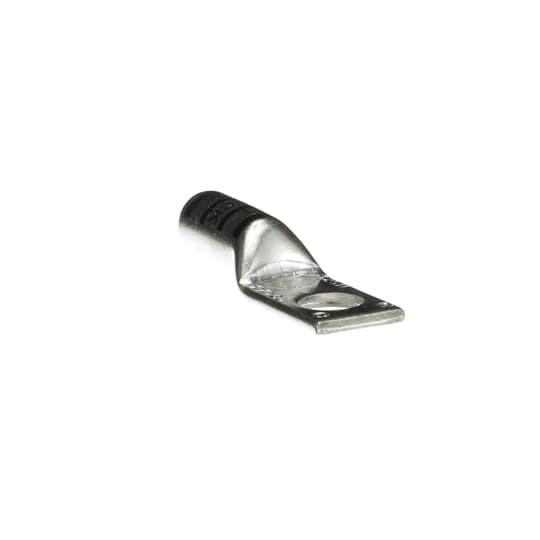

Color-Keyed® one hole lug with long barrel is a compression connector for copper conductors. Made of high-conductivity wrought copper with electro-tin plate. 1/2 inch bolt is used and the lug is used for 600 V to 35 kV applications.

Technical Information

Barrel Length
Long
Barrel Shape
Standard
Barrel Type
Long, Straight
Cable Size
2/0 AWG
Conductor Size
2/0 AWG
Die Code
45
Insulated?
No
Material
Copper
Number of Holes
1
Number of Studs
1
Stud Size
1/2 in
Tongue Angle
Straight
Tongue Width
Standard
Type
Long Barrel
Voltage
600 V
Wire Size
2/0 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Color-Keyed®

General Product Info

12-Digit UPC
786210190297
Color
Black
Finish
Tin Plated
GTIN
05414363144595
Product UPC
78621019029
Shape
Round
