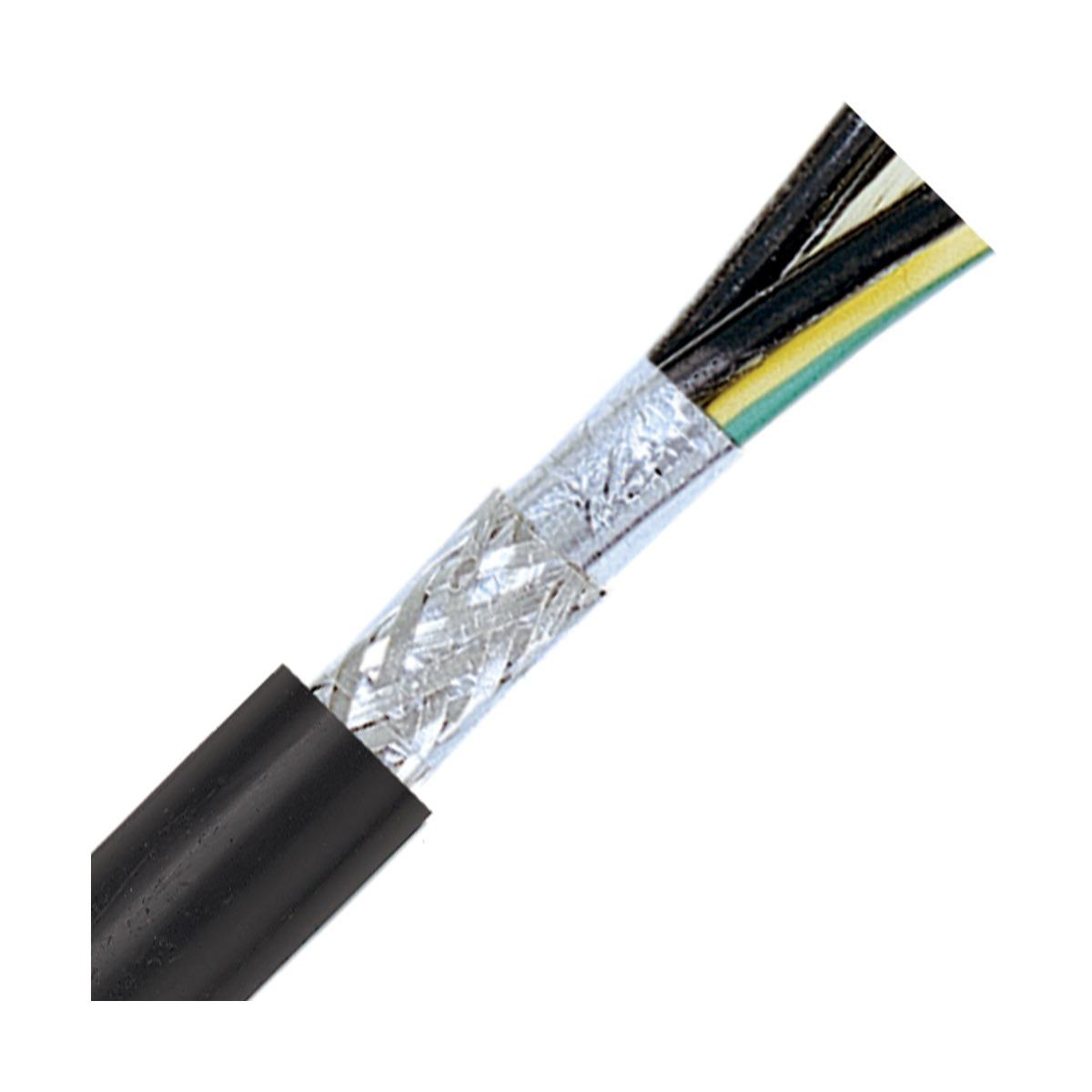

Product image for OLFLEX 2216050 WIRE CUTS #16G 5 CONDUCTOR FLEXIBLE TRAY CABLE SHIELDED TRAY II CY 600V PVC BLACK
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

OLFLEX 2216050 WIRE CUTS #16G 5 CONDUCTOR FLEXIBLE TRAY CABLE SHIELDED TRAY II CY 600V PVC BLACK

Manufacturer: Olflex Wire Cables | Catalog # 2216050 | Electrozad South Part # 294054
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page
Control cable; 5G1.5; U₀/U: 0,6 / 1 kV; Conductor identification: Numbers; Shielded; UL listed; Flexible

Technical Information

Applications
For Industrial Plant Expansions, Automotive Plants, Tray Wiring, Industrial Machinery, Plant Engineering
Bend Radius
60.3 mm
Conductor Material
Bare Copper
Conductor Size
16 AWG
Gauge
16 AWG
Insulation Material
PVC
Number of Conductors
5
Operating Temperature
-25 degrees C
Stranding
Class 5 Fine Wire
Temperature Rating
-25 to 105 degrees C
Type
Oil-Resistant, Flexible, Shielded
Voltage
1 kV

Manufacturer Information

Brand
Lapp
Sub Brand
Olflex Tray II CY

General Product Info

Jacket Color
Black
Jacket Material
PVC

Dimensions

Outside Diameter
10.3 mm
