Tester receptacle 3-wire 50/60Hz 110/125V

Manufacturer: Klein Tools | Catalog # RT110 | Electrozad South Part # 294477
$9.08 /ea
pc
Log in or register to view your price, purchase history, and more!
3 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual

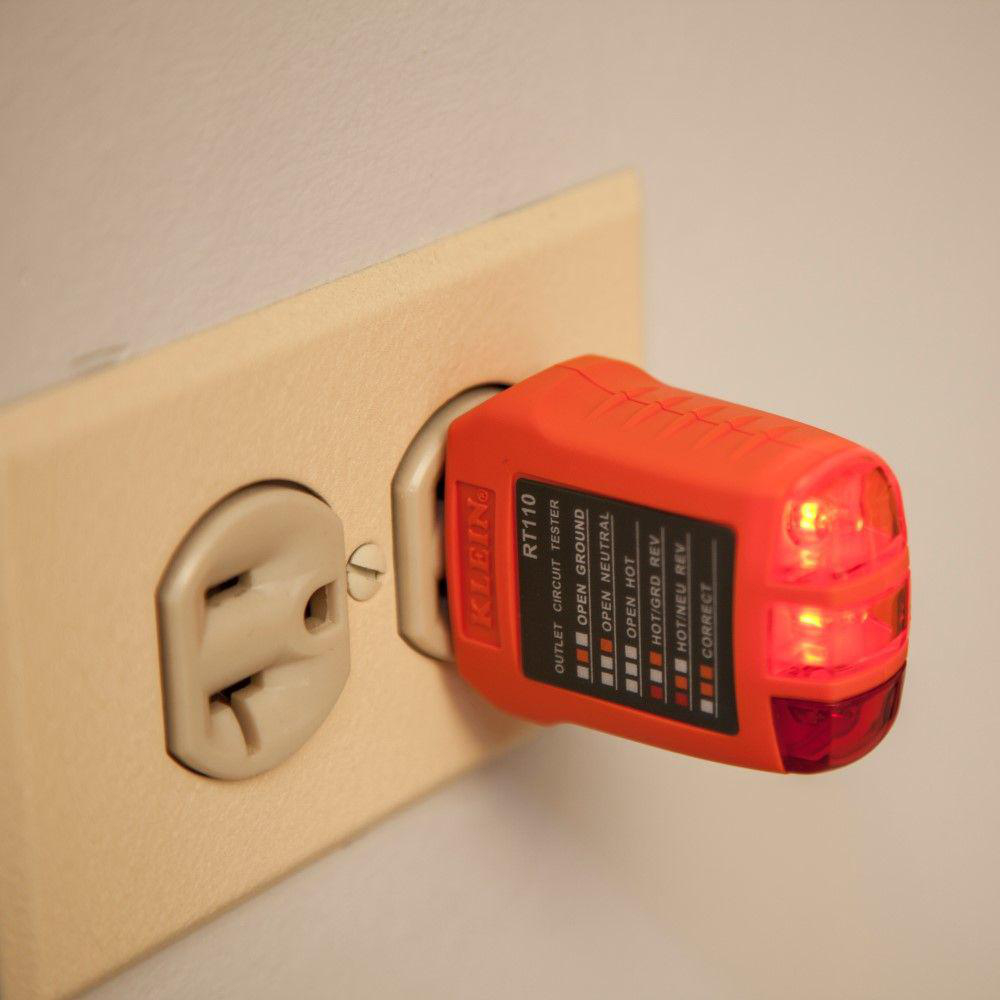

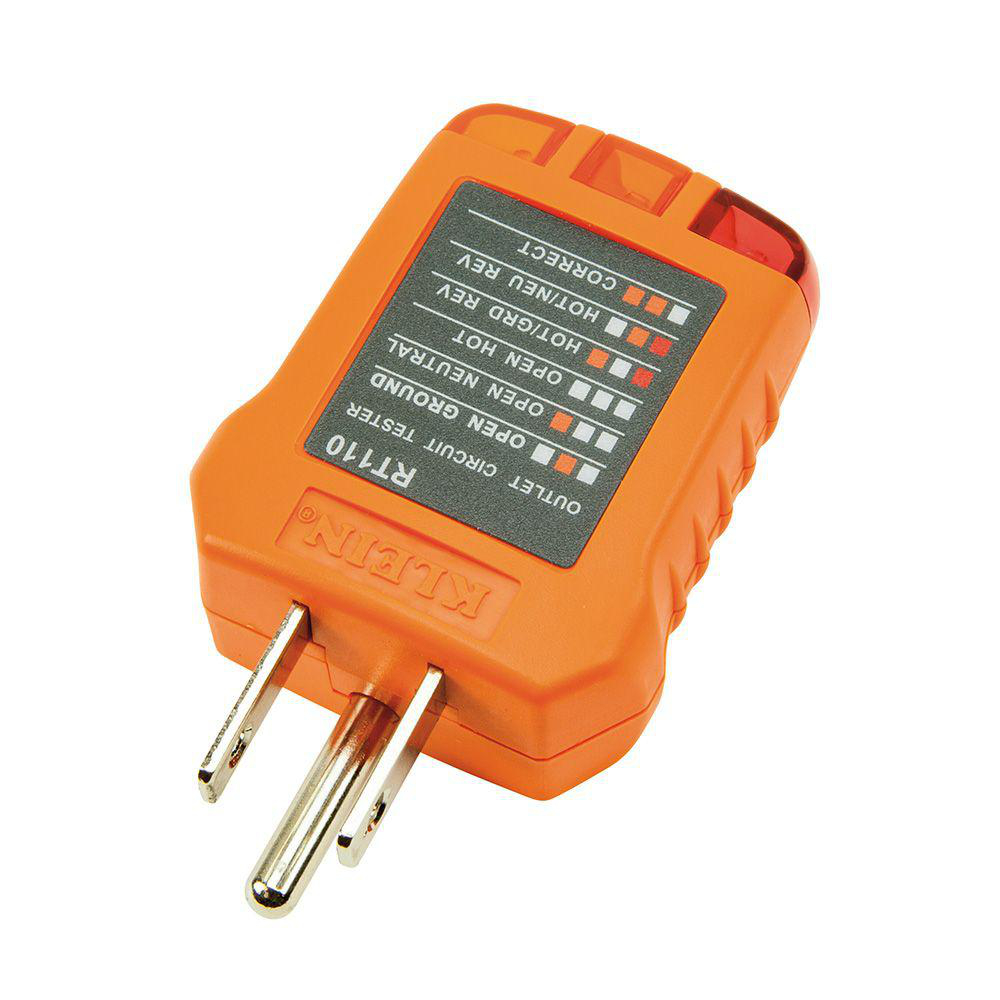

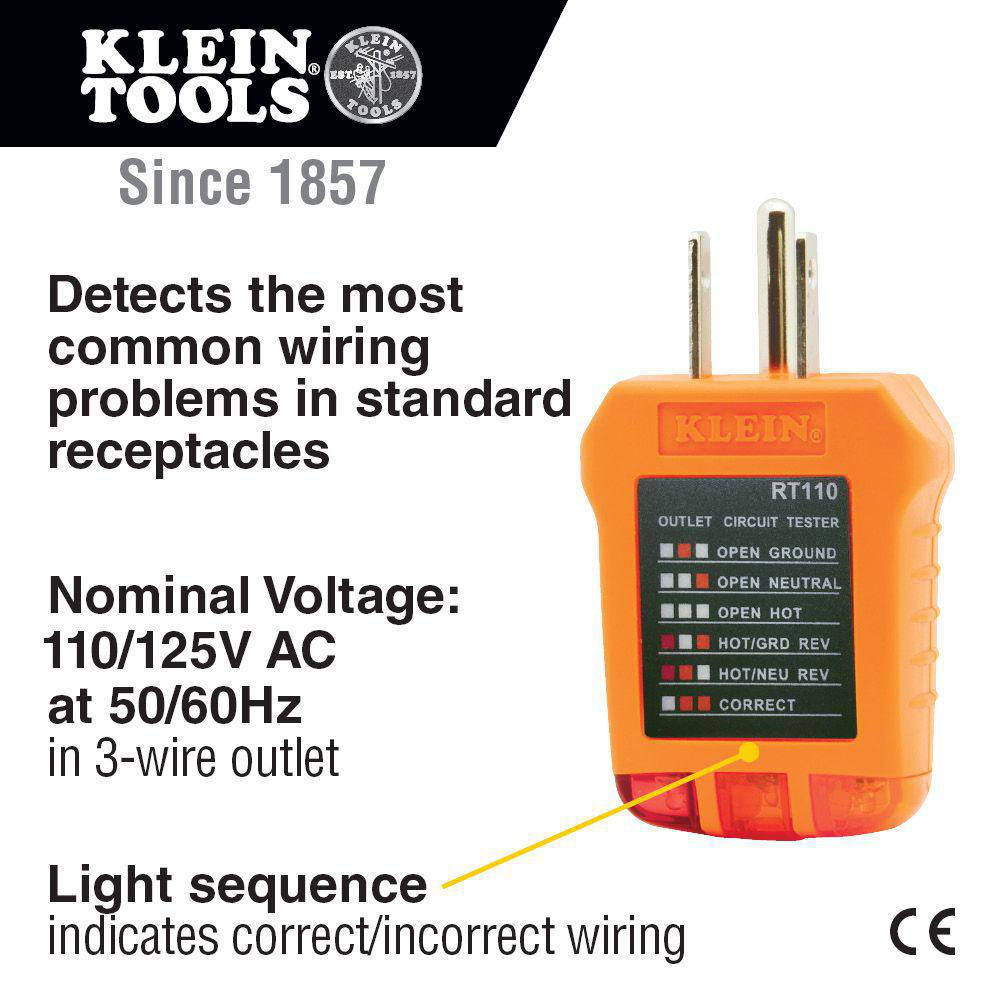

Receptacle tester. Light sequence indicates correct or incorrect wiring. Operating temperature 32 to 140°F. Built to withstand a 6.6 ft drop. Nominal voltage 110/125 VAC at 50/60 Hz in 3 wire outlet. Designed to detect the most common wiring problems in standard receptacles.

Technical Information

Applications
For Wiring Correct, Open Ground, Reverse Polarity, Open Hot, Open Neutral, Hot/Ground Reversed
Enclosure
Plastic
Number of Rows
2
Temperature Rating
32 - 142 degrees F
Type
3-Wire
Voltage
110/125 V

Manufacturer Information

Brand
Klein Tools

General Product Info

12-Digit UPC
092644690266
GTIN
00092644690266
Product UPC
09264469026
Weight
0.122 lb

Dimensions

Depth
3.000 in
Height
2.88 in
Length
1.62 in
Overall Length
1.62 in
Width
1.88 in

Certifications & Compliance

Country of Origin
China
Overview
  • Nominal Voltage: 110/125V AC at 50/60Hz in 3-wire outlet
  • Operating temp: 32-degrees F to 140-degrees F (0-degrees C to 40-degrees C)
  • Outlet tester's light sequence on receptacle tester indicates correct/incorrect wiring
  • Receptacle tester conforms to UL Std 1436, Certified to CSA Std C22.2 #160
  • Designed to detect the most common wiring problems in standard receptacles
