Haven grip wire rope swl 8000lb .28-.75in

Manufacturer: Klein Tools | Catalog # 1625-20 | Electrozad South Part # 29494
$322.91 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL I INSTALL ASSEMBLY INSTRUCTIONS URL

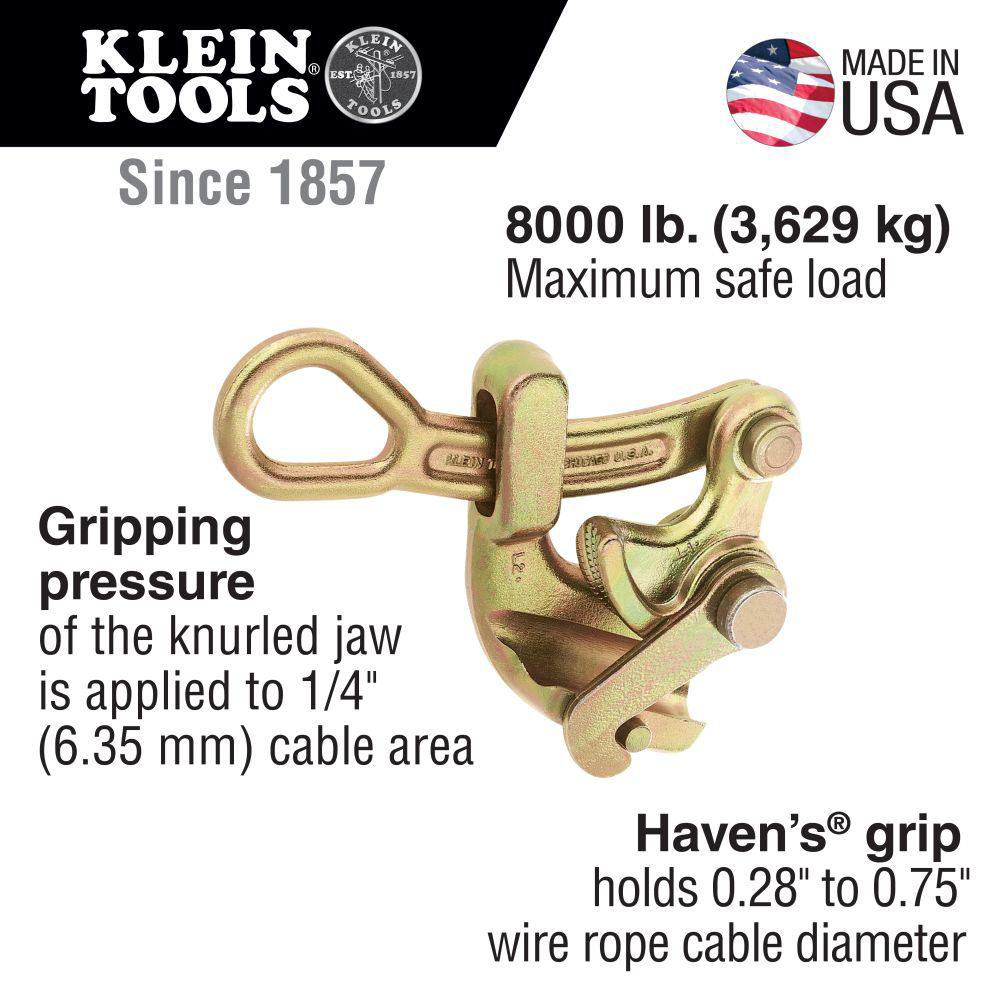

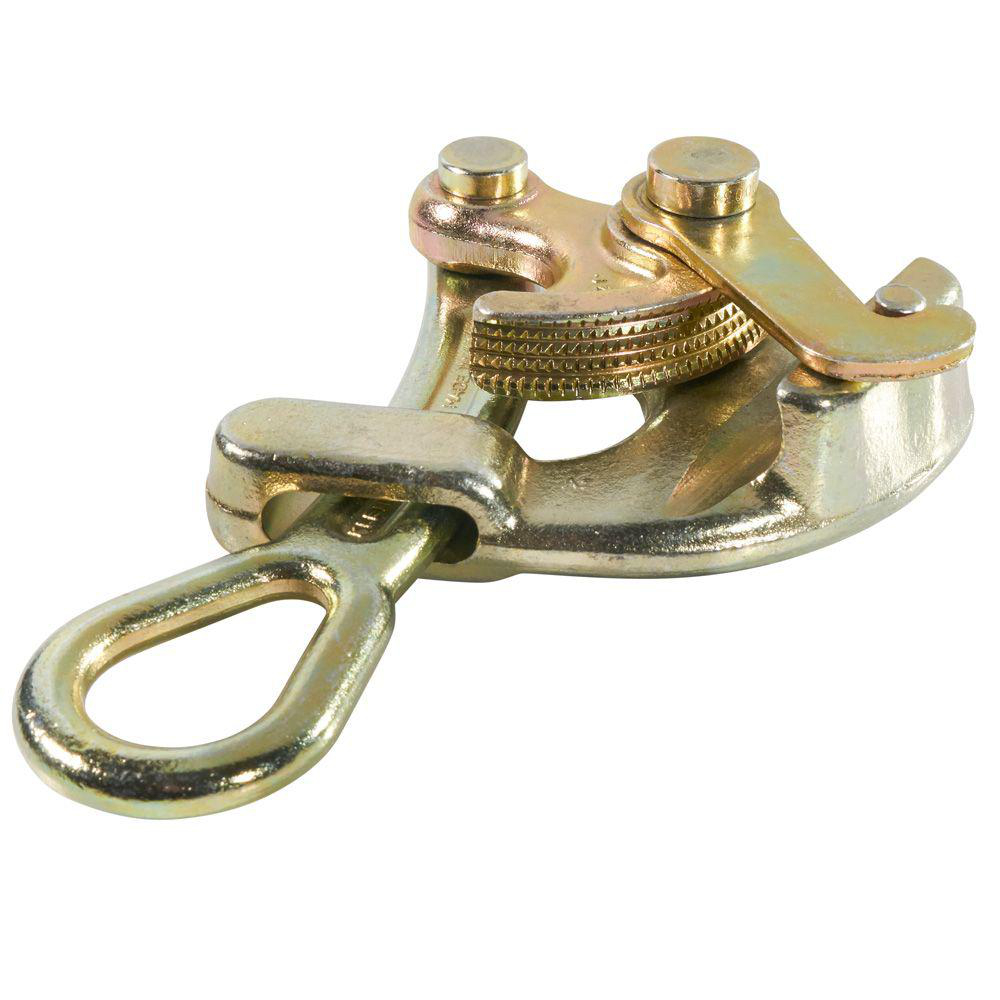

Designed for use when light, compact grip is desired and where conductor damage is not a factor. Gripping pressure of the knurled jaw is applied to 1/4'' (6.35 mm) cable area. Has a swing latch to help hold cable in the jaw.

Technical Information

Applications
Wire Pulling
Cable Type
Wire Rope
Conductor Size
#1
Jaw Type
Aggressive
Material
Drop Forged Steel
Number of Rows
1
Type
Knurl Jaw, Light, Compact

Manufacturer Information

Brand
Klein Tools
Sub Brand
Havens®

General Product Info

12-Digit UPC
092644472206
GTIN
00092644472206
Product UPC
09264447220
Weight
3.492 lb

Dimensions

Chain Cable Diameter
0.28 To 0.75 in
Depth
6.075 in
Height
1.800 in
Jaw Length
0.25 in
Length
1/4 in Jaw
Width
3.825 in

Certifications & Compliance

Country of Origin
USA
