Locking Devices, Industrial, Female Connector Body, 30A 125V, 2-Pole 3-Wire Grounding, L5-30P, Screw Terminal, Black and White

Manufacturer: Bryant Wiring Device | Catalog # 70530NC | Electrozad South Part # 295382
$98.71 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page D BRAND LOGO IMAGE URL
Locking Devices, Industrial, Female Connector Body, 30A 125V, 2-Pole 3-Wire Grounding, L5-30P, Screw Terminal, Black and White

Technical Information

Amperage
30 A
Applications
Heavy Duty Industrial
Conductor Size
12-8 AWG
Current
30 A
Grounding
Grounding
Material
Composite
Mounting Type
Cord
NEMA
L5-30R
Number of Conductors
3-Wire Grounding
Number of Poles
2
Number of Wires
3
Size
Standard
Style
Internal Cord Clamp
TC Connection
Screw Terminals
Temperature Rating
-25 to 75 degrees C
Type
Standard
Voltage
125 V
Wire Size
18-8 AWG

Manufacturer Information

Brand
Bryant
Sub Brand
Tech-Spec®, Triple Gripper®

General Product Info

12-Digit UPC
781786688797
Color
Black/White
GTIN
00781786688797
Product UPC
78178668879

Dimensions

Height
3.90 in
Length
2.13 in
Width
2.13 in

Certifications & Compliance

Country of Origin
China
Overview
  • Impact/chemical resistant, toughened nylon construction
  • Face and body feature alignment keys for easy assembly

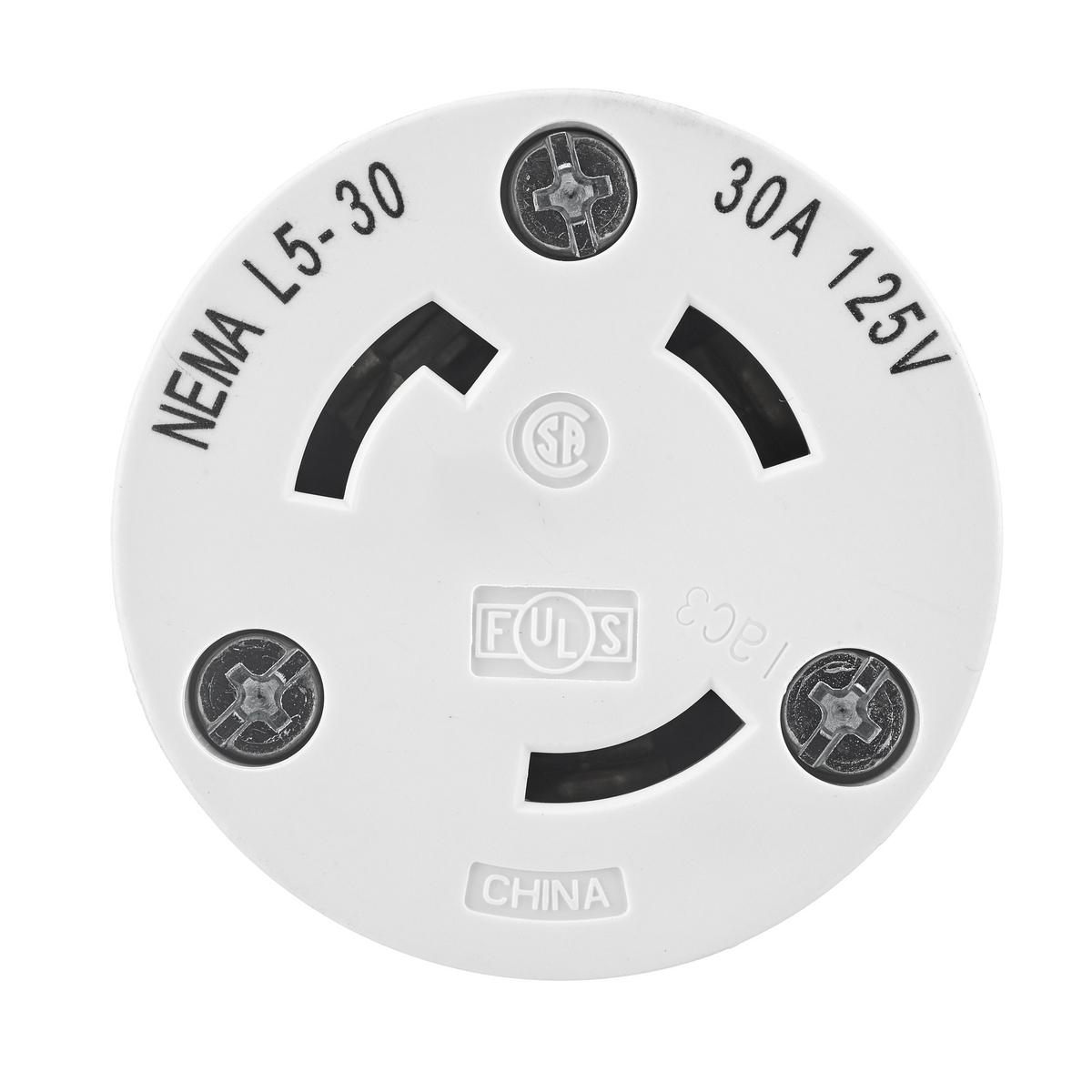

  • Amperage, voltage and NEMA configuration imprinted on face for easy identification
  • Internal self-centering Triple Gripper® cord grip with radius teeth design provides secure cord retention
