Recessed TC housing INC 4in Non-IC construction

Manufacturer: Juno Lighting | Catalog # TC1 | Electrozad South Part # 296650
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Installation / Instruction Manual I INSTALL ASSEMBLY INSTRUCTIONS URL

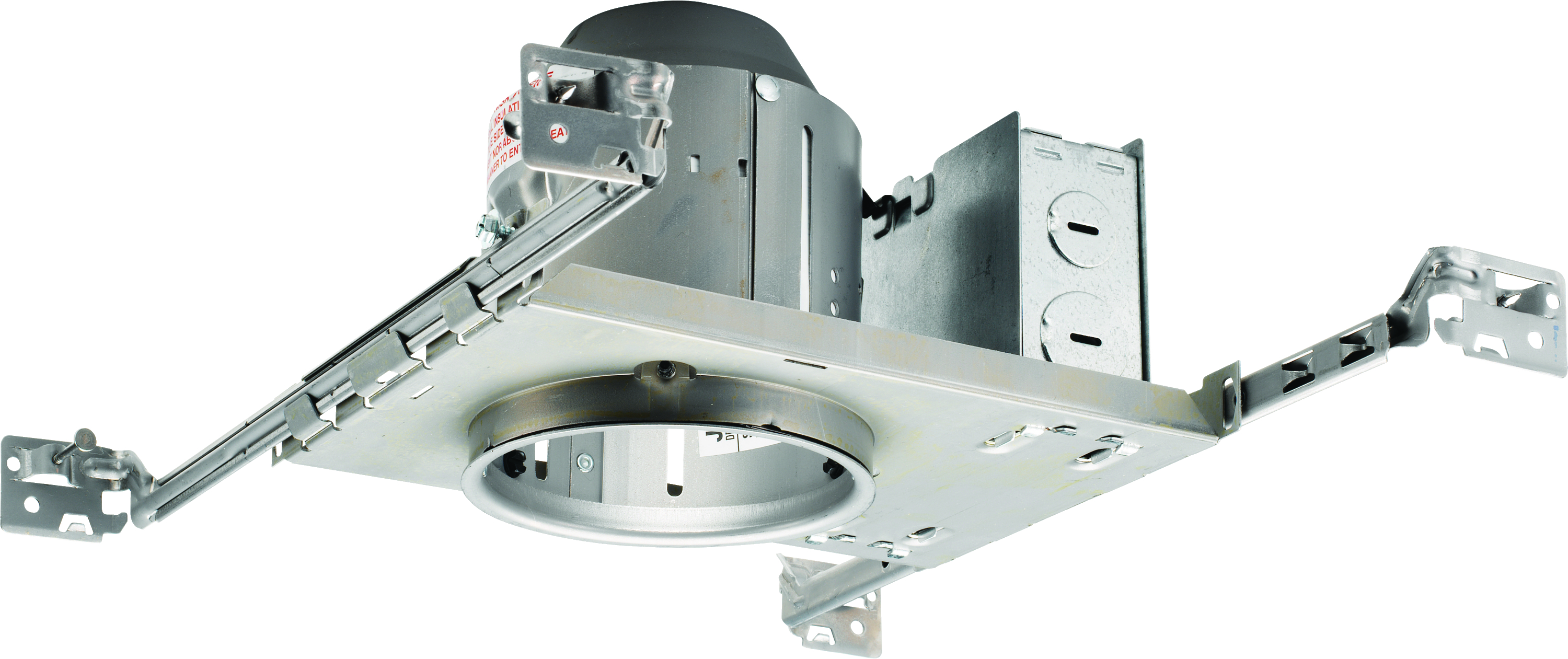

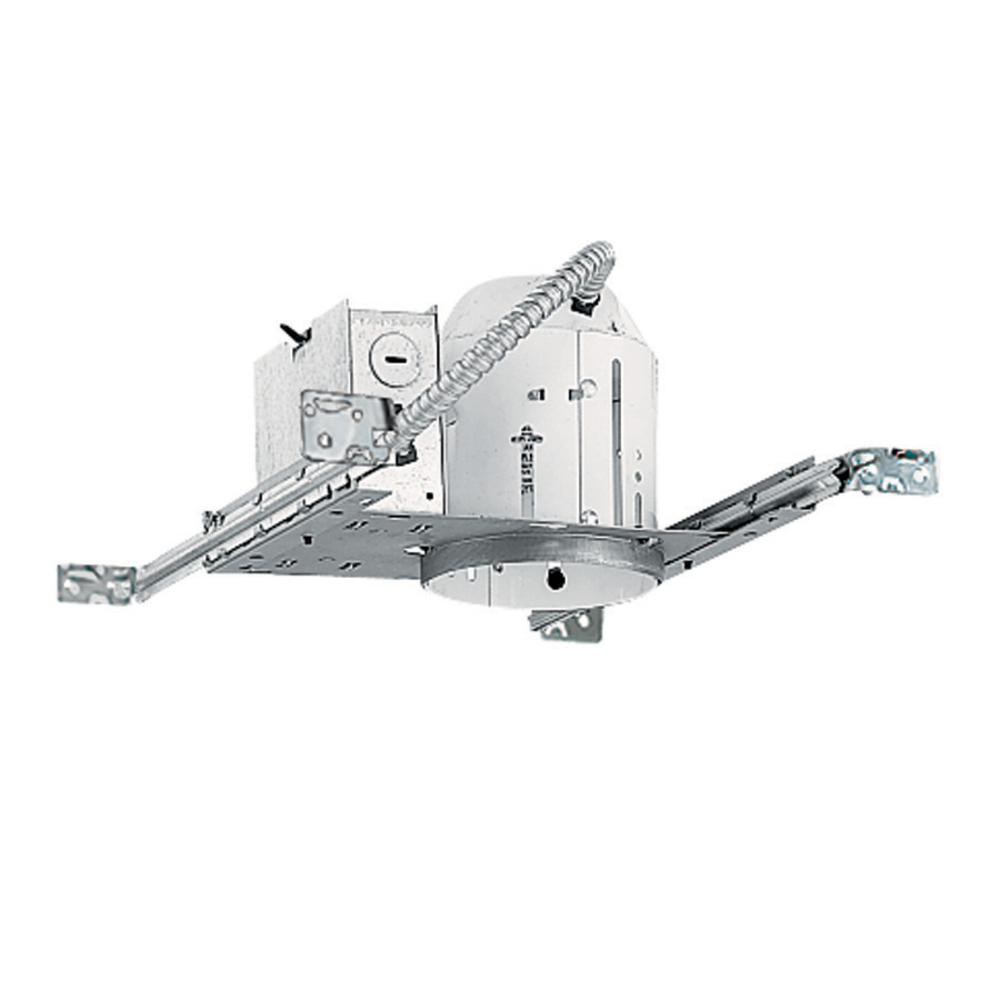

4" TC Incandescent Housing NON-I/C

Technical Information

Aperture Size
4 in
Applications
Residential
Lamp Type
Incandescent (Lamp Not Included)
Lamp Wattage
100 W
Mounting Type
Recessed
Number of Lamps
1
Power Source
Hardwired
Type
Housing

Manufacturer Information

Brand
Acuity Brands
Sub Brand
Juno

General Product Info

12-Digit UPC
661209700193
Color
Unfinished
Construction
New Construction
Environment
Indoor
Environmental Conditions
Indoor
Fixture Type
Incandescent Line Voltage
GTIN
00661209700193
Housing Material
Steel
Product UPC
66120970019
Shape
Round
Weight
2.3 lb

Dimensions

Height
5.375 in
Length
12.125 in
Width
13.5 in

Certifications & Compliance

Country of Origin
Mexico,Mexico
Overview
  • WARRANTY: 1-year limited warranty
  • VOLTAGE: Standard 120 volts used in most residential applications
  • DESIGN FEATURE: Air-Loc housing stops infiltration and exfiltration of air, reducing heating and cooling costs
  • INCLUDES: Housings include medium base porcelain socket with nickel-plated copper screw shell
  • If installed where insulation is present, the insulation must be pulled back 3❠from all sides of the TC housing.
  • RECOMMENDED LAMPS: TC1: R14/R16/R20/PAR16/PAR20
  • BAFFLE: Trim options include 4\" baffles, all in white finish
  • FEATURE: The IC1 is suitable to use for damp locations
  • DIMENSIONS: Height 5 3/8-in. x Width 6-3/4-in. x Full Width 13-1/2-in. x Length 9-1/8-in. x Full Length 12-1/8-in.
  • LISTINGS: UL Listed, CSA certified to US and Canadian standards, listed for damp locations
