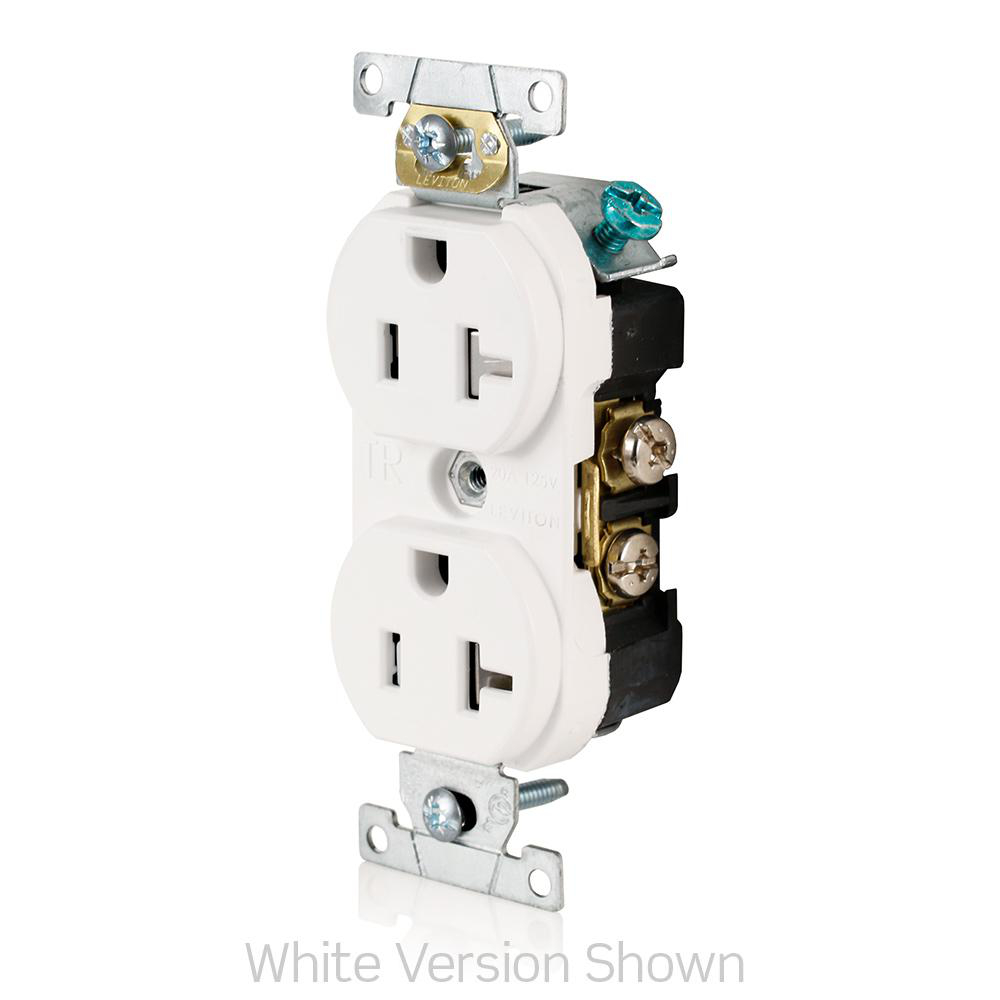

Receptacle straight duplex tamper-resistant 2P 3W 125V 20AMP white

Manufacturer: Leviton Manufacturing | Catalog # TCR20-W | Electrozad South Part # 296921

*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Commercial spec grade tamper-resistant receptacle meet or exceed all existing codes and standards. NEC (National Electrical Code) requirements for commercial facilities necessitate the use of tamper-resistant receptacles and to bring you more options. Mechanical shutter mechanism prevents access to contacts unless a two-pronged plug is inserted, helping ensure that foreign objects will be locked out. Ultrasonically welded for additional assembly security. Body and face made of high impact thermoplastic for durability. Convenient break-off plaster ears for best flush alignment. Self-grounding clip staked on, will never fall off.

Technical Information

Amperage
20 A
Applications
Commercial
Body Material
Thermoplastic
Connection Type
Side Wire
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Enclosure
WD-6
Face Material
Thermoplastic
Grade
Commercial
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic Face/Base, Zinc-Plated Steel Strap
NEMA
WD-1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Standard
ANSI C-73
Style
Straight Blade
Temperature Rise
150 %
Termination Type
Side Wire
Type
Tamper-Resistant, Self Grounding
Voltage
125 V
Wire Count
3
Wire Type
Solid Building Wire,Stranded Building Wire

Manufacturer Information

Brand
Leviton
Sub Brand
TAMPER RESISTANT COMMERCIAL R

General Product Info

12-Digit UPC
078477655429
Color
White
GTIN
00078477655429
Product UPC
07847765542

Dimensions

Height
46 in
Length
1.36 in
Warranty Length
10 yr
Width
1.20 in

Certifications & Compliance

Country of Origin
Mexico
