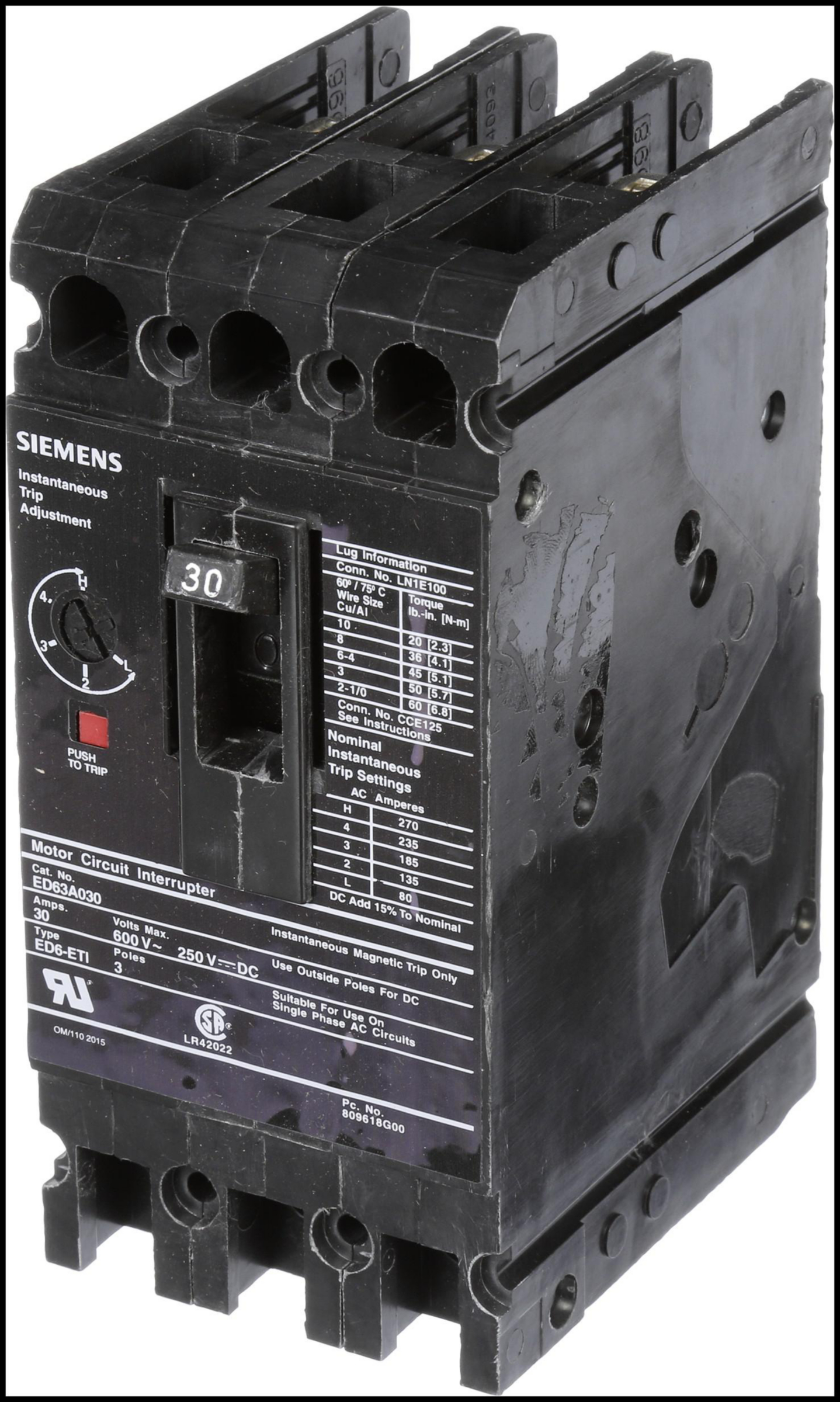

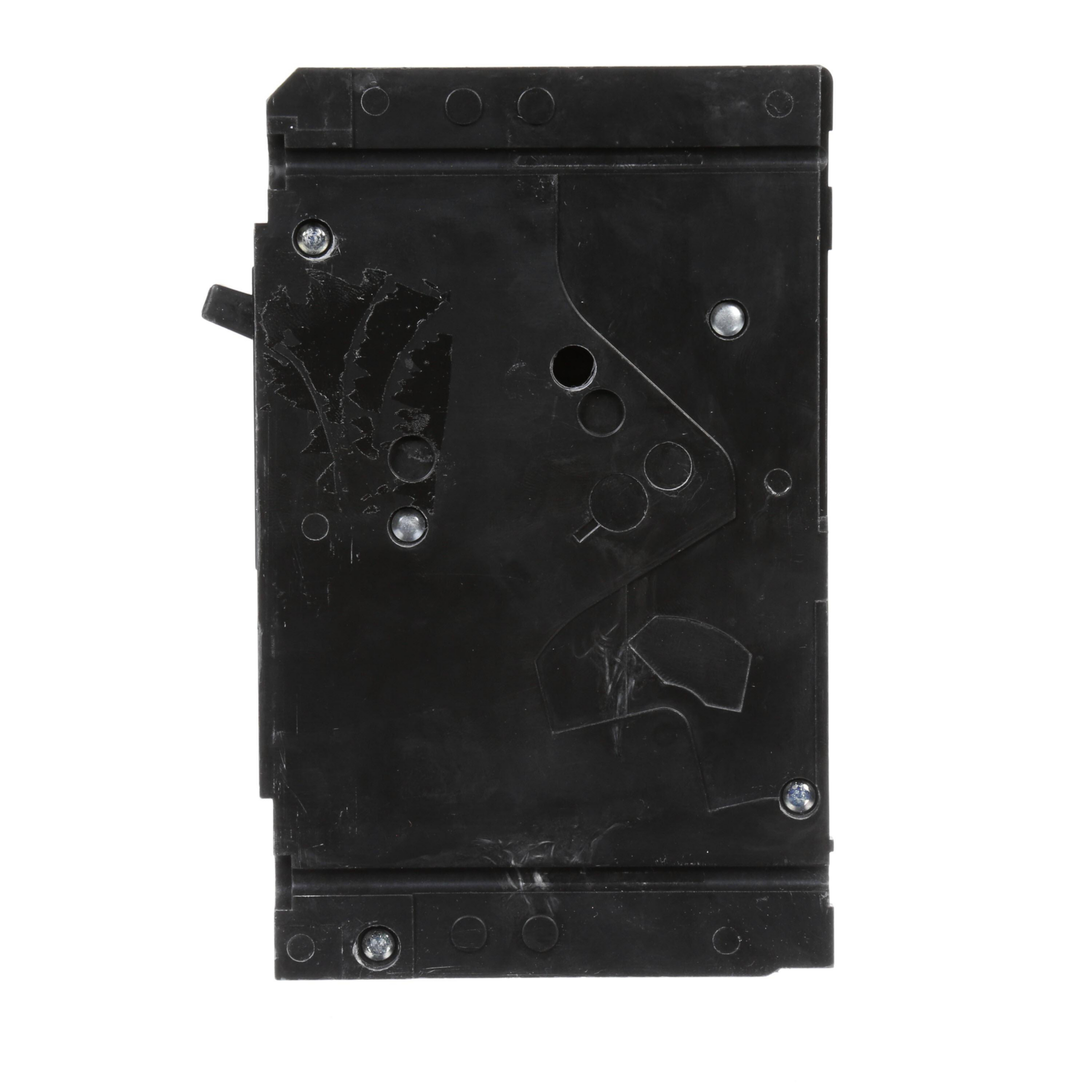

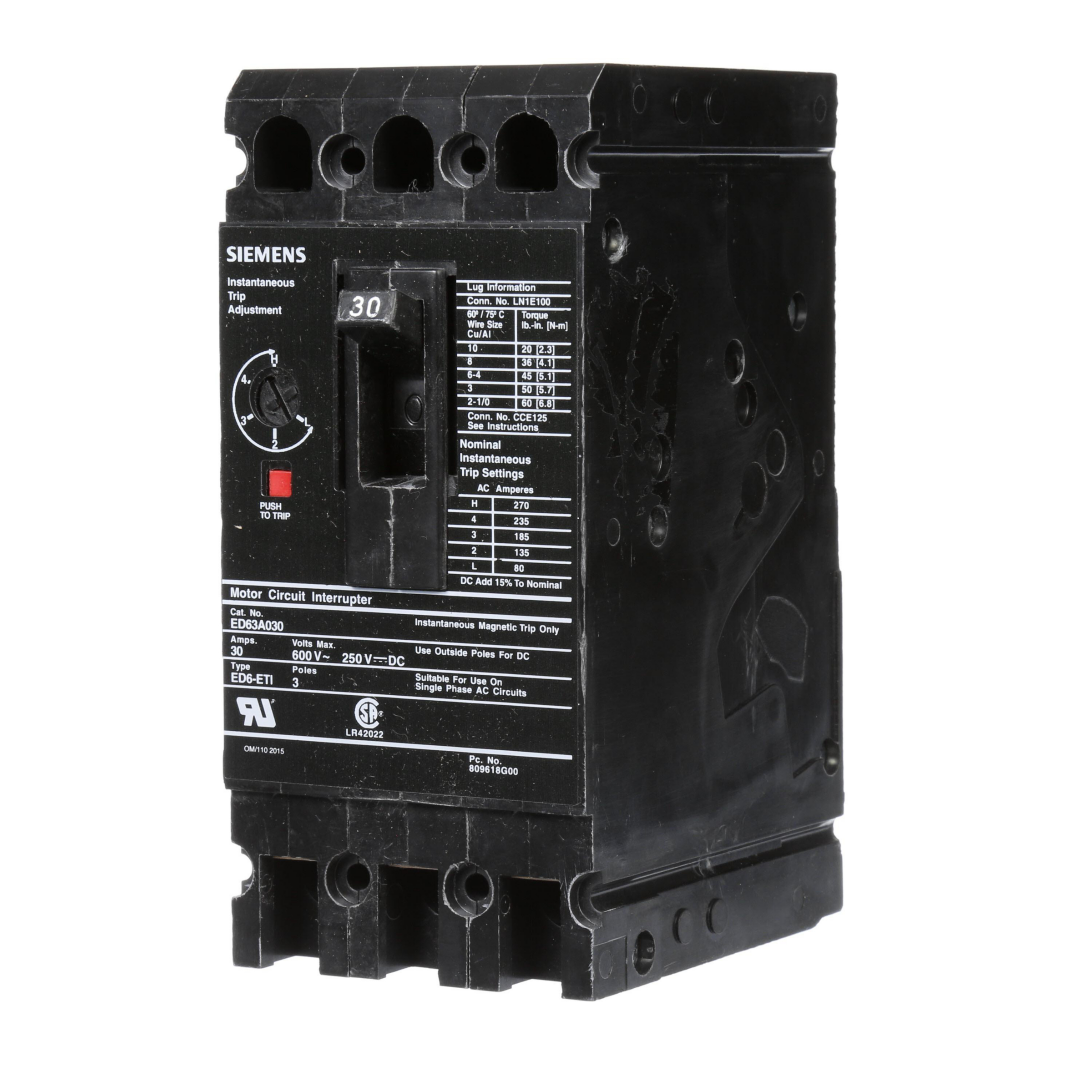

SIED ED63A030 BREAKER 30A 3P 600V INCLUDING LINE AND LOAD LUGS

Manufacturer: Siemens Distribution | Catalog # ED63A030 | Electrozad South Part # 29725
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page
Molded case circuit breakers for ED125A frame sentron mounting are supplied with load side lugs in 1 type of tripping speed ED6=18/30KA depend on voltage selected. Available in version 1 pole 347vac, 2 poles 250vdc 600vac, 3 poles 500vdc 600vac. Features adjustable trip range to compensate higher and lower current at motor start/stop.

Technical Information

Actuator
Varying
Applications
For Standard Range ETI Breaker
Enclosure
Varying
Frame
ED6
Interrupt Rating
18 kAIC
Load Rating
N/A
Number of Poles
3
Operating Temperature
40C
TC Connection
N/A
Temperature Rating
40 degrees C
Trip Range
80 - 270 A
Trip Type
Thermal Magnetic
Type
ED6

Manufacturer Information

Brand
Siemens
Sub Brand
Sentron

General Product Info

12-Digit UPC
783643210844
GTIN
00783643210844
Product UPC
78364321084
Weight
0.350 lb

Dimensions

Height
5.700 in
Length
4.200 in
Width
7.450 in

Certifications & Compliance

Country of Origin
Mexico
