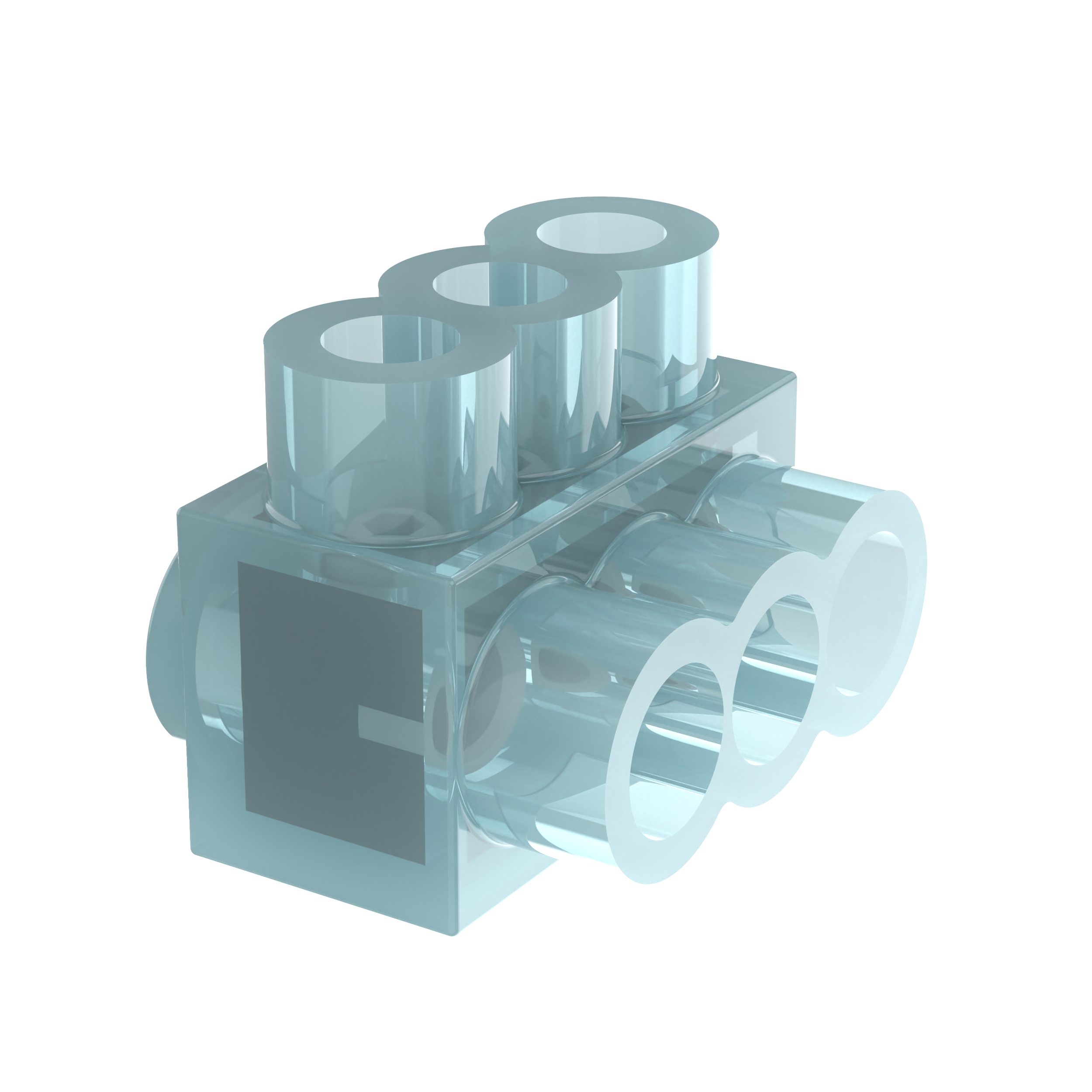

Image thumbnail 1

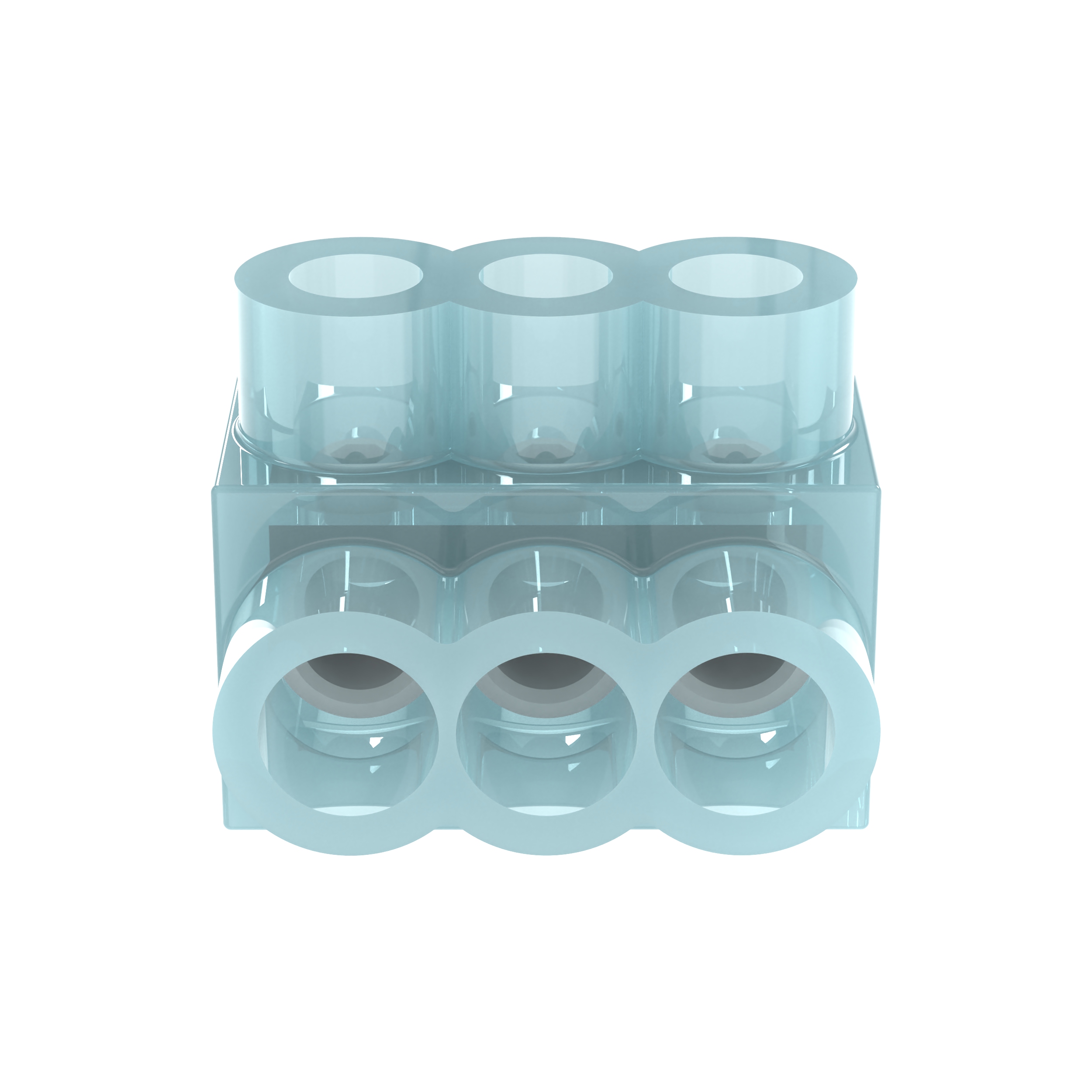

Image thumbnail 2

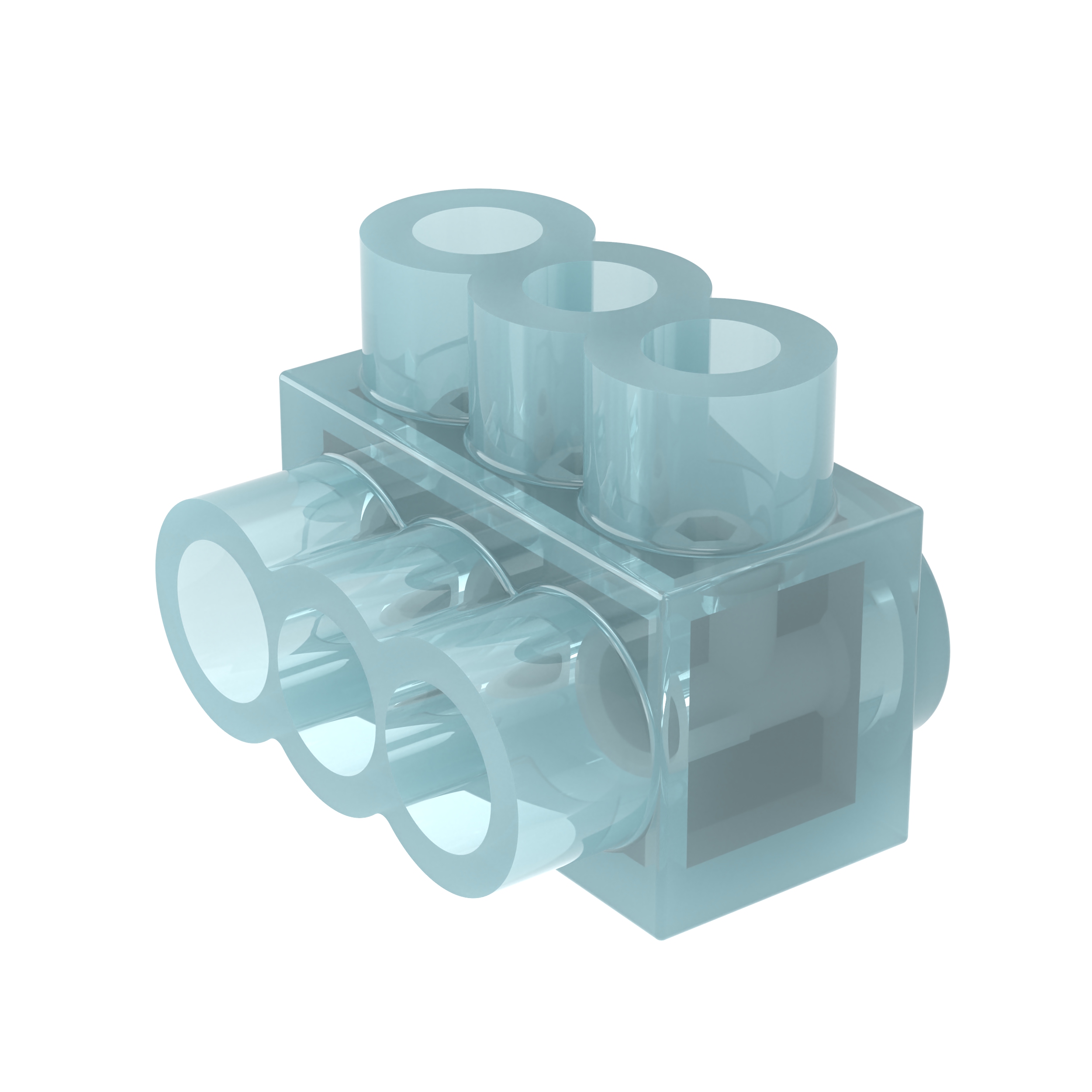

Image thumbnail 3
Email

PANDUIT PCSB4-3S-12Y MULTI-TAP CONNECTOR #4G- #14G 3PORT SINGLE SIDED CLEAR ALUM OR COPPER CONDUCTORS

Manufacturer: Panduit | Catalog # PCSB4-3S-12Y | Electrozad South Part # 297892
$3,344.84 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet
The PCSB4-3S-12Y Multi-Tap Mechanical Lug has a flexible design that can be used as a tap, splice, or dead-end Lug. Made from high strength, extruded aluminum alloy to provide premium electrical and mechanical performance. Insulated with clear PVC to eliminate the need for taping and allow for visual inspection of the complete conductor insertion. UL Listed and CSA Certified.

Technical Information

Applications
Aluminum or Copper Code Conductors
Base Material
Aluminum
Conductor Size
14-4 AWG Stranded
Material
Aluminum, PVC Insulation
Number of Ports
3
Standard
CSA,E2186,UL
Temperature Rating
90 degrees C
Type
Mechanical, Single-Sided

Packaging

Package Qty
12

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983597574
Finish
Tin Plated
GTiN
00074983597574
Product UPC
07498359757

Dimensions

Height
1.25 in
Overall Length
1.76 in
Width
1.25 in

Certifications & Compliance

Country of Origin
USA
