Watertight Series, Straight Blade DuplexReceptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA 5-15R, Yellow | Electrozad South

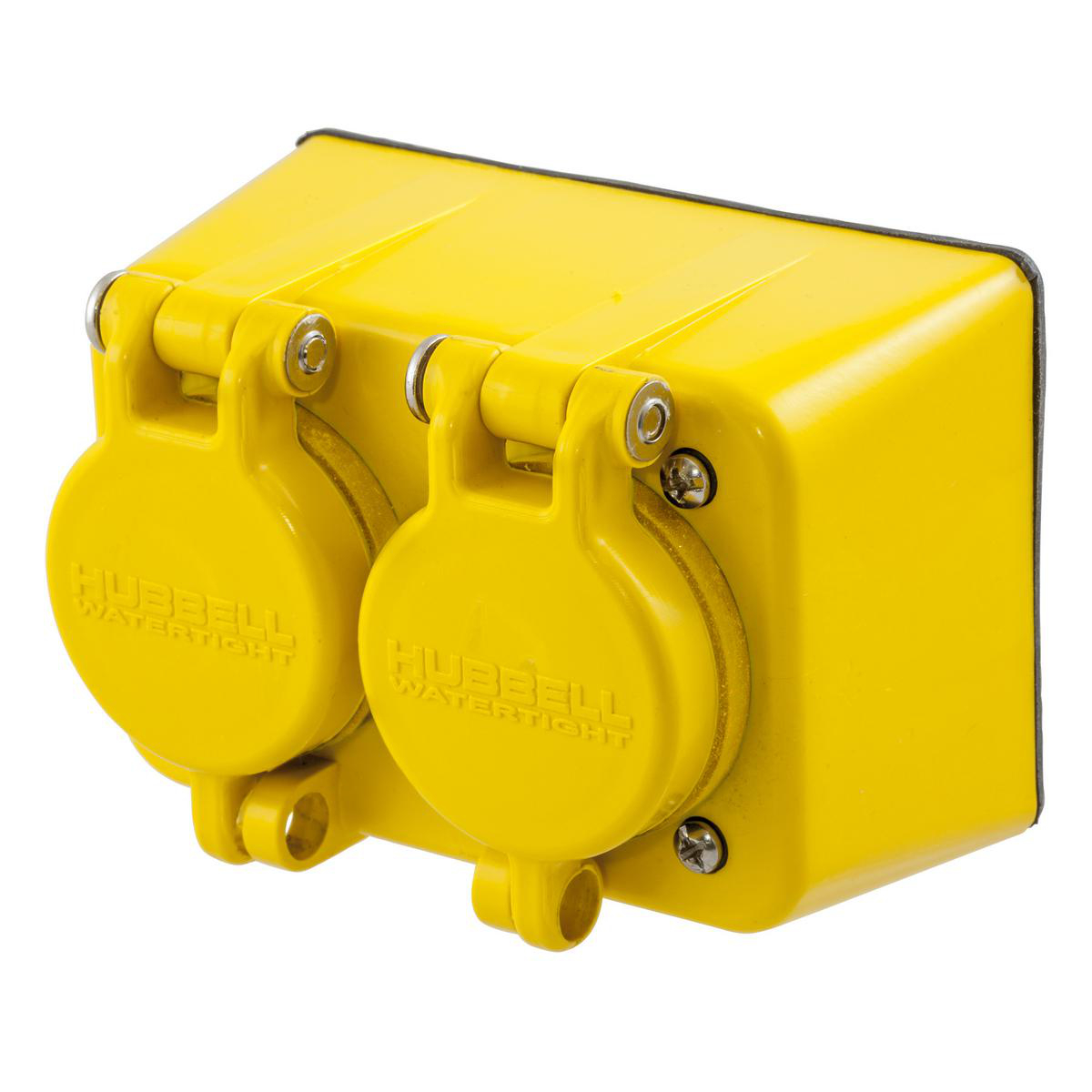

Product image for Watertight Series, Straight Blade DuplexReceptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA 5-15R, Yellow
Image thumbnail 0
Image thumbnail 1
Email

Watertight Series, Straight Blade DuplexReceptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA 5-15R, Yellow

Manufacturer: Hubbell Wiring Devices | Catalog # HBL60W47D | Electrozad South Part # 298241
$135.96 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Watertight Series, Straight Blade DuplexReceptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA 5-15R, Yellow

Technical Information

Amperage
15 A
Applications
For Industrial, Commercial
Body Material
PBT
Conductor Size
14-12 AWG
Contact Material
Nickel-Plated Brass
Current
15 A
Material
PBT
Mounting Type
Screw
NEMA
5-15R
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size
Standard Sized Product
TC Connection
Terminal Screws
Type
Single, Watertight
Voltage
125 V
Wattage
1875 W
Wire Count
3
Wire Size
#14 to #12

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585528700
Color
Yellow
Environmental Conditions
Indoor Dry unless protected by additional means
GTIN
00783585528700
Product UPC
78358552870

Dimensions

Height
3.248 in
Length
5.048 in
Width
5.1 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Stainless steel hardware and corrosion-resistant connection points
  • Impact resistant PBT lid, cover plate, and receptacle body
  • Thermoplastic elastomer seal
