Duct wiring narrow slot PVC type-F 4x3"x6' | Electrozad South

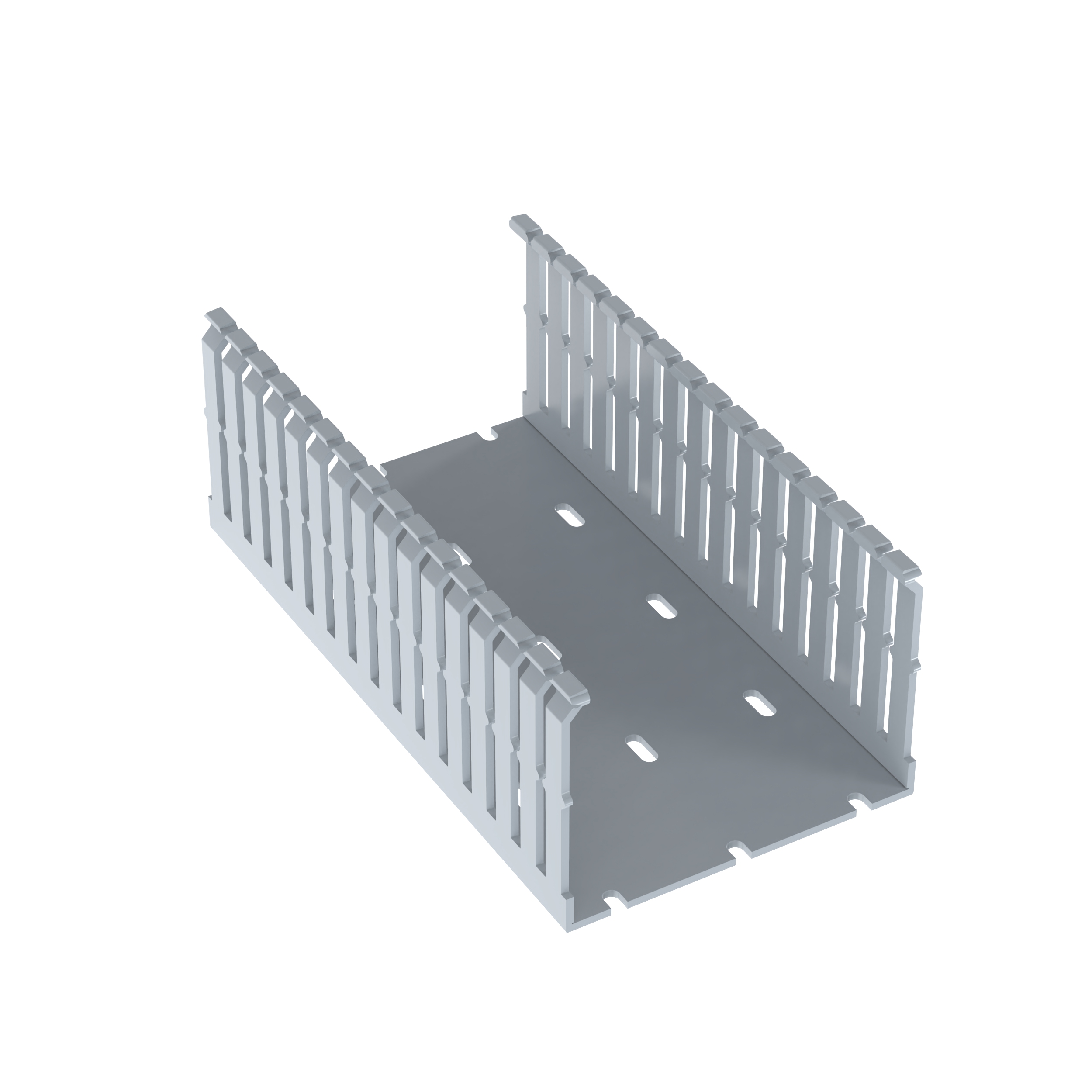

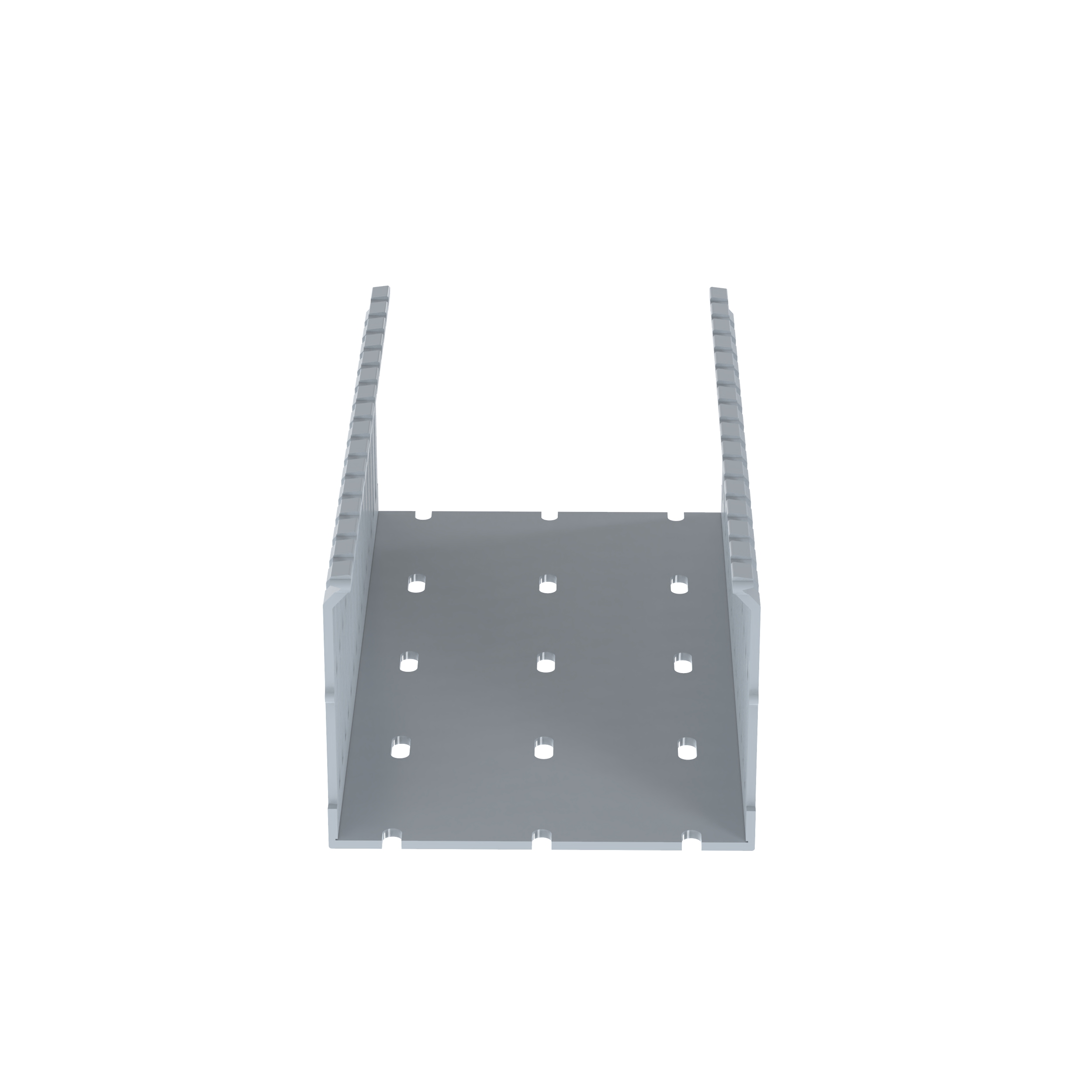

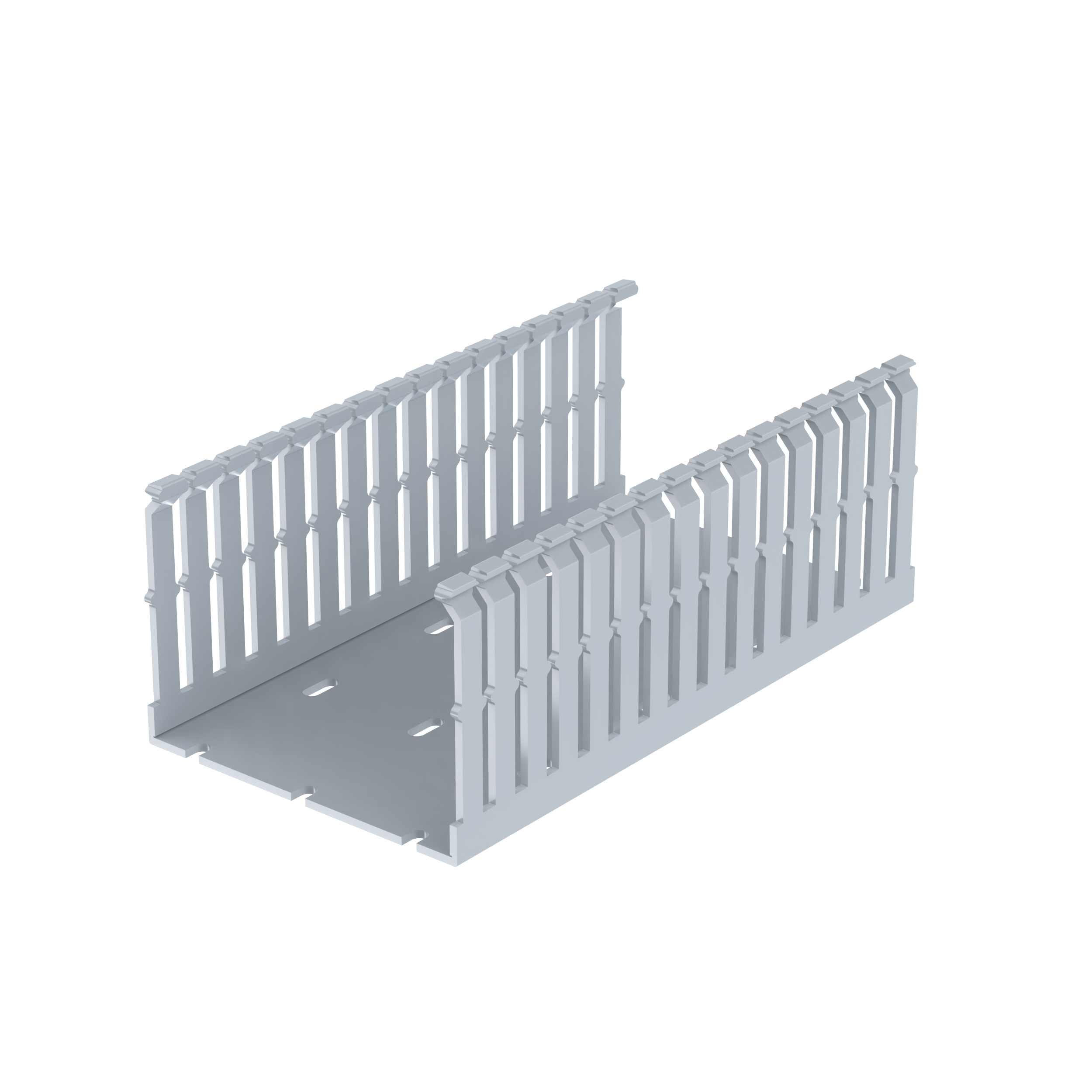

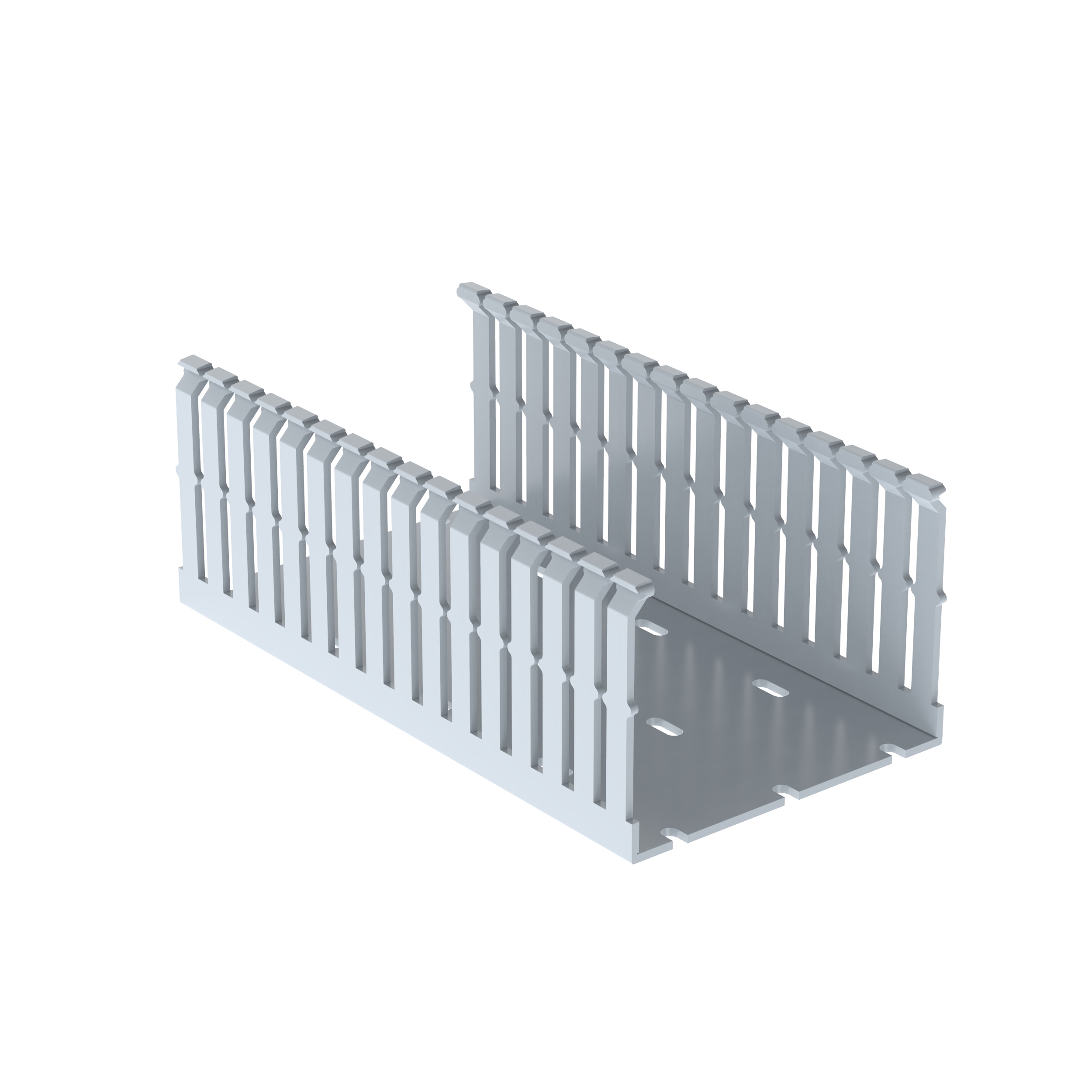

Product image for Duct wiring narrow slot PVC type-F 4x3"x6'
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Duct wiring narrow slot PVC type-F 4x3"x6'

Manufacturer: Panduit | Catalog # F4X3LG6 | Electrozad South Part # 30063
$12.74 /ft
ft
Order in multiples of 6 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL
Panduct® Type-F narrow slot wiring duct narrow slot/finger design provides more slots to fit the spacing of high-density terminal blocks and other hardware. Material lead-free PVC. UL recognized continuous use temperature 122°F. UL 94 flammability rating of V-0. Conforms with NFPA 79-2007 section 13.3.1 requirement for flame retardant material. Provided with mounting holes.

Technical Information

Applications
For Indoor use
Material
Lead-Free PVC
Mounting Type
Standard Hole
Size
4.00 x 3.00
Slot Size
5 mm Pitch
TC Connection
Standard Mounting Holes
Type
Type F, Bottom Perforation

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Panduct

General Product Info

12-Digit UPC
074983375936
Color
Light Gray
GTIN
00074983375936
Product UPC
07498337593

Dimensions

Depth
79.2 mm
Height
3.12 in
Length
1.8 m
Overall Length
6 ft
Thickness
0.1 IN
Width
108 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
