Switch unfused disconnect sloped-top SS 30A

Manufacturer: Hubbell Wiring Devices | Catalog # HBLDS3SSR | Electrozad South Part # 301274
$1,532.51 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Circuit-Lock® Non-metallic disconnect is frequently used in harsh environments. Frequent wash down, hot and high pressure water, caustic cleaning agents and UV light are common place. Permanent labelless marking IP69k and type 4X, 12 water ingress protection. Molded in corrosion and impact resistant material that is UV stabilized SCCR rating of 65 kA when protected by class-J fuses. Highly visible red handle which meets OSHA LO/TO capabilities. Cover cannot be removed with switch in the On position. Accepts up to 2 auxiliary contacts.

Technical Information

Amperage
30 A
Applications
For Motor Starting without Overload Protection
Connection Type
Pressure Screw
Current
30 A
Enclosure Type
Type 4X, IP69k
Load Rating
18000 W
Mounting Type
Screw
Number of Phases
Three
Number of Poles
3
Operating Temperature
-40 degrees C
Power Rating
18,000 W
Size
8.6 in x 5.41 in x 4.92 in
Style
Heavy Duty
TC Connection
Pressure Screw Terminals
Temperature Rating
-40 degrees C
Type

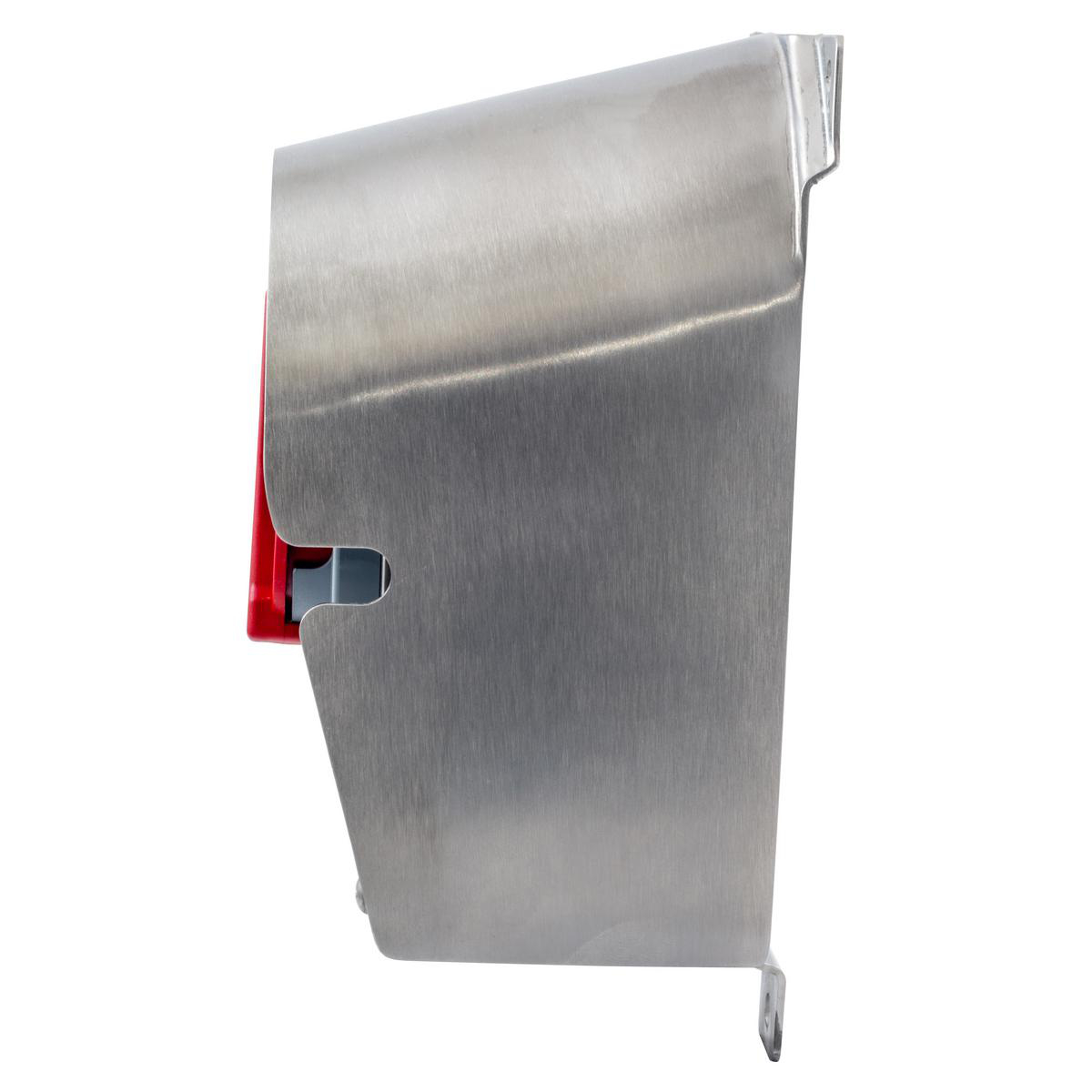

Standard, Unfused, Sloped Top

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Motor Disconnects

General Product Info

12-Digit UPC
783585541549
GTIN
00783585541549
Housing Material
Stainless Steel
Product Series
Non-Fused
Product UPC
78358554154
Shape
Sloped Top

Dimensions

Height
4.92 in
Length
8.6 in
Width
5.41 in

Certifications & Compliance

Country of Origin
Poland
Overview

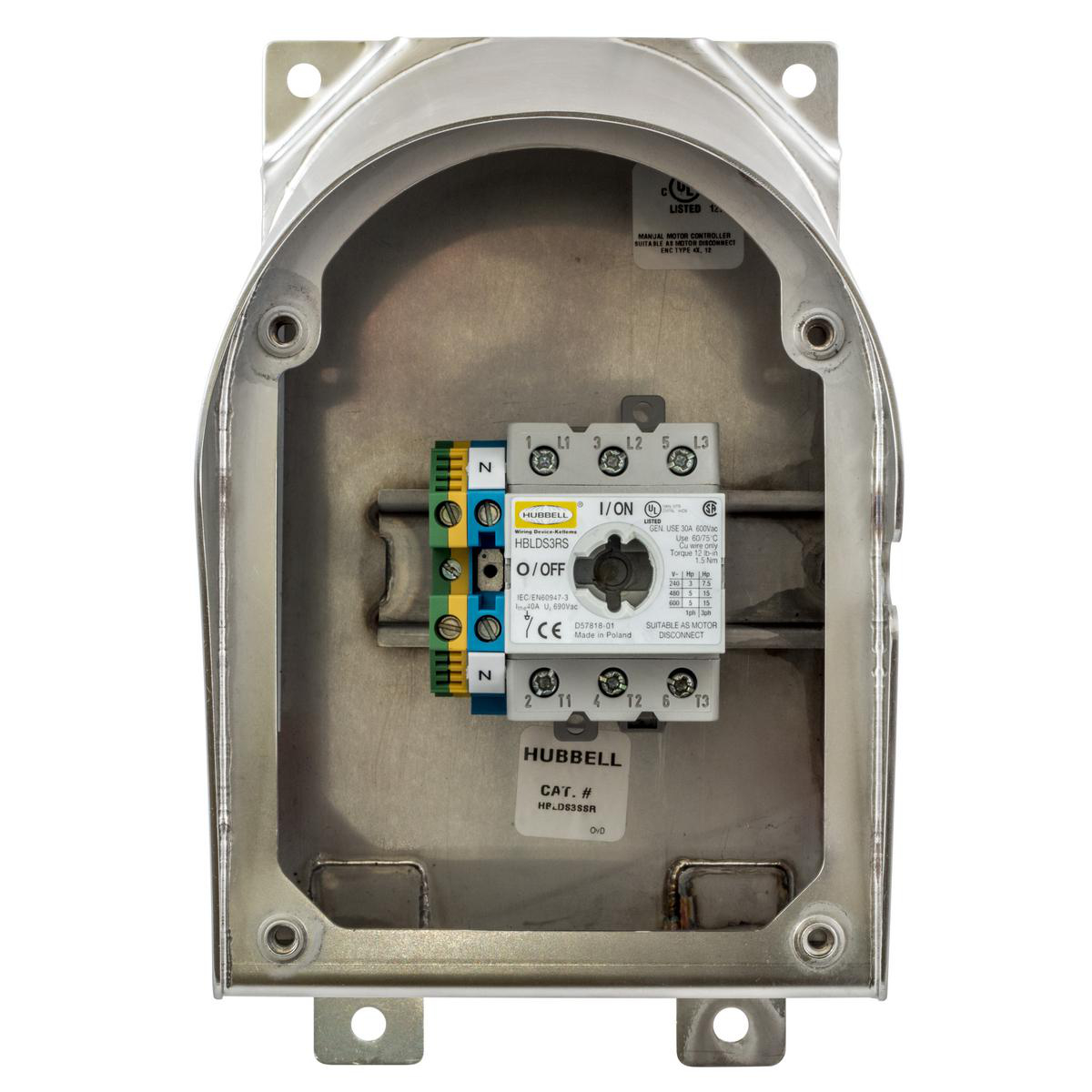

  • Accepts up to 2 Auxiliary contacts
  • Certified by NSF for hygiene in food processing applications
  • Formed in nonporous 304 stainless steel
  • IP69k and Type 4X,12K water ingress protection

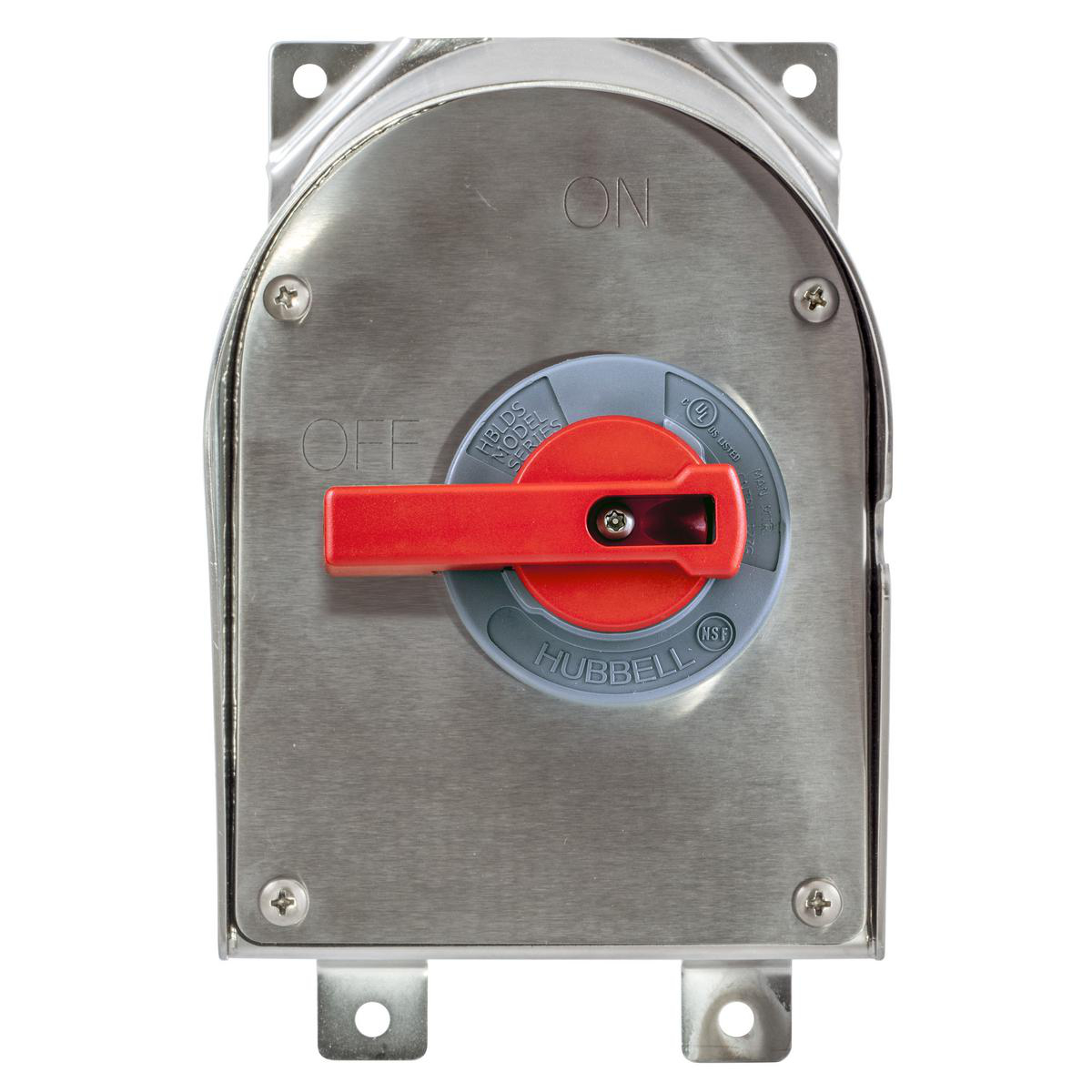

  • Highly visible red handle which meets OSHA Lockout/Tagout capabilities
