PANDUIT HSTTA50-48-5 HEATSHRINK THIN ADHESIVE .50" ID BLACK

Manufacturer: Panduit | Catalog # HSTTA50-48-5 | Electrozad South Part # 301906
$25.35 /ea
ea
Order in multiples of 5 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet

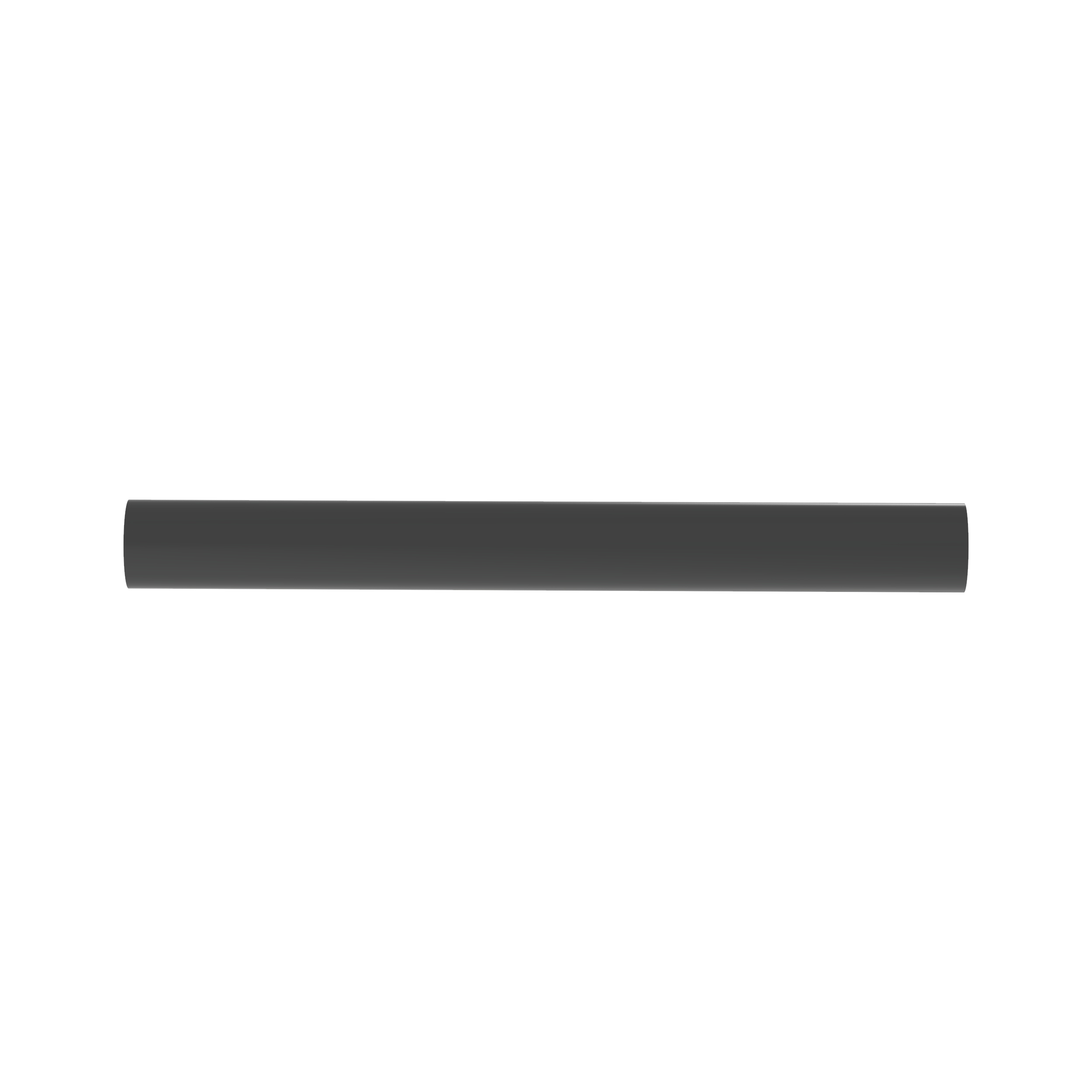

The HSTTA50-48-5 Thin Wall Heat Shrink features an adhesive lined inner wall that seals and provides excellent protection against moisture. Applications include insulating and protecting wires/cables in damp locations. Voltage rating: 600 V. Shrink ratio: 3:1. Temperature range: -67°F to 230°F (-55°C to 110°C). Cross-linked Polyolefin. 0.50" (12.7 mm) diameter, 4' (1.2 m) length. Color Black. 5 per package.

Technical Information

Material
Polyolefin
Max Operating Temperature
110 degrees C
Minimum Operating Temperature
-55 degrees C
Shrink Ratio
3:1
Standard
Yes
Temperature Rating
-55 to 110 degrees C
Type
Flame Retardant

Packaging

Package Qty
5

Manufacturer Information

Brand
Panduit
Sub Brand
Damp-Shrink™

General Product Info

12-Digit UPC
074983369935
Color
Black
GTiN
00074983369935
Product UPC
07498336993

Dimensions

Inside Diameter
4.1 mm
Outside Diameter
12.7 mm
Overall Length
48 in
Thickness
1.8 mm

Certifications & Compliance

Country of Origin
South Korea,USA
