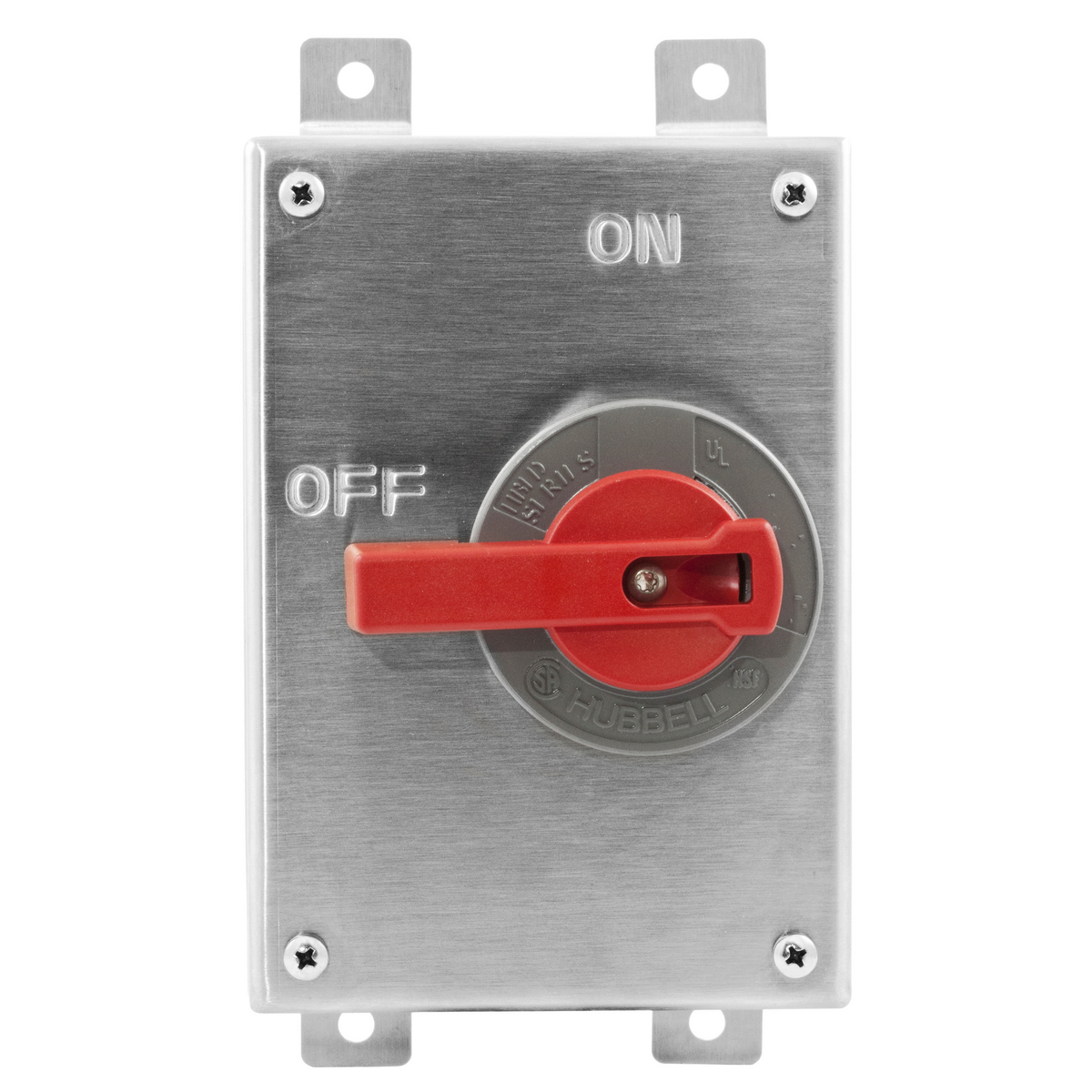

Product image for HUB HBLDS6SS DISCONNECT 60A UNFUSED NEMA4X SS
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HUB HBLDS6SS DISCONNECT 60A UNFUSED NEMA4X SS

Manufacturer: Hubbell Wiring Devices | Catalog # HBLDS6SS | Electrozad South Part # 304677
$1,372.00 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual
Switches and Motor Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 60A 600V AC, Screw Terminals, Stainless Steel, NEMA 4X Enclosure

Technical Information

Action
Snap
Actuator
Lever
Amperage
60 A
Applications
Labelless
Contact Configuration
Two Position
Contact Rating
60A
Current
60 A
Enclosure
Type 4X, IP69k
Material
Composite
Number of Poles
3 Pole
Operating Cycles
6k
Operating Temperature
-40 degrees C
Size
11.63 in x 7.3 in x 5.39 in
Style
Heavy Duty
TC Connection
Terminal Screws
Type
Non-Reversing
Wattage
36 kW

Manufacturer Information

Brand
Hubbell
Sub Brand
Circuit-Lock

General Product Info

12-Digit UPC
783585372563
Environmental Conditions
NEMA 4X
GTIN
00783585372563
Product Series
Non-Fused
Product UPC
78358537256
Shape
Square Top

Dimensions

Height
5.39 in
Length
11.63 in
Width
7.3 in

Certifications & Compliance

Country of Origin
Poland
