HUB HBLDS3SS DISCONNECT 30A UNFUSED NEMA4X SS | Electrozad South

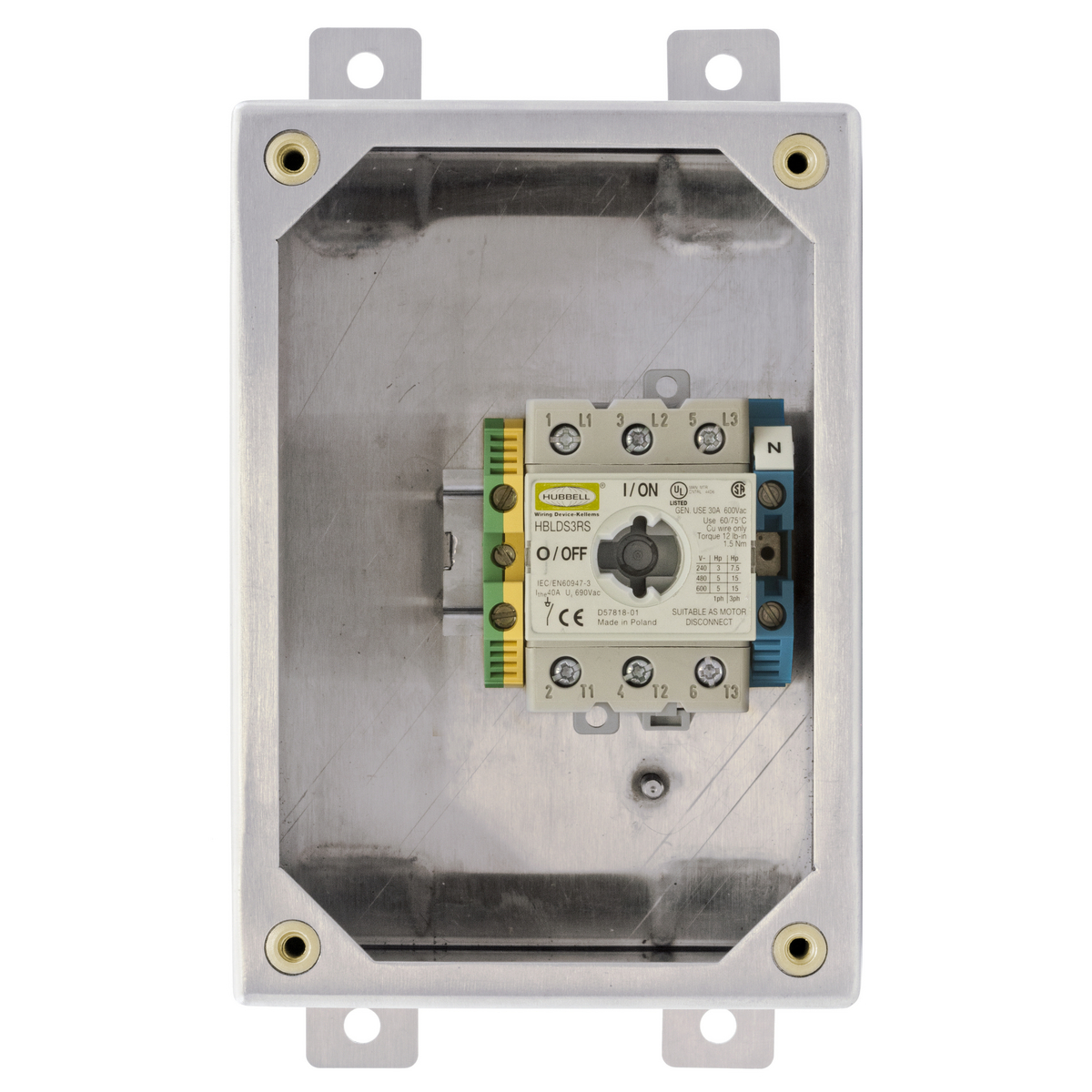

Product image for HUB HBLDS3SS DISCONNECT 30A UNFUSED NEMA4X SS
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HUB HBLDS3SS DISCONNECT 30A UNFUSED NEMA4X SS

Manufacturer: Hubbell Wiring Devices | Catalog # HBLDS3SS | Electrozad South Part # 304678
$1,025.62 /ea
pc
Log in or register to view your price, purchase history, and more!
8 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual
Switches and Motor Controls, Industrial Grade, Disconnect Switches, Unfused Switch, Three Pole, 30A 600V AC, Screw Terminals, Stainless Steel, NEMA 4X Enclosure

Technical Information

Action
Snap
Actuator
Lever
Amperage
30 A
Applications
Labelless
Connection Type
Screw Terminal
Contact Configuration
Two Position
Contact Rating
30A
Current
30 A
Enclosure
Stainless Steel
Load Rating
18000 W
Material
Composite
Mounting Type
Feet
Number of Poles
3
Operating Cycles
6000
Operating Temperature
-40 degrees C
Size
8.38 in x 4.87 in x 5.39 in
Standard
UL
TC Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C
Type
2-Position, Industrial Grade, Non-Fusible, Non-Reversing, Standard
Wattage
18,000 Watt

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Circuit-Lock®

General Product Info

12-Digit UPC
783585242736
Environmental Conditions
UL94 5VA and V0 Flammability Rating
GTIN
00783585242736
Housing Material
Stainless Steel
Product UPC
78358524273
Shape
Square Top

Dimensions

Height
5.39 in
Length
8.38 in
Width
4.87 in

Certifications & Compliance

Country of Origin
Poland
