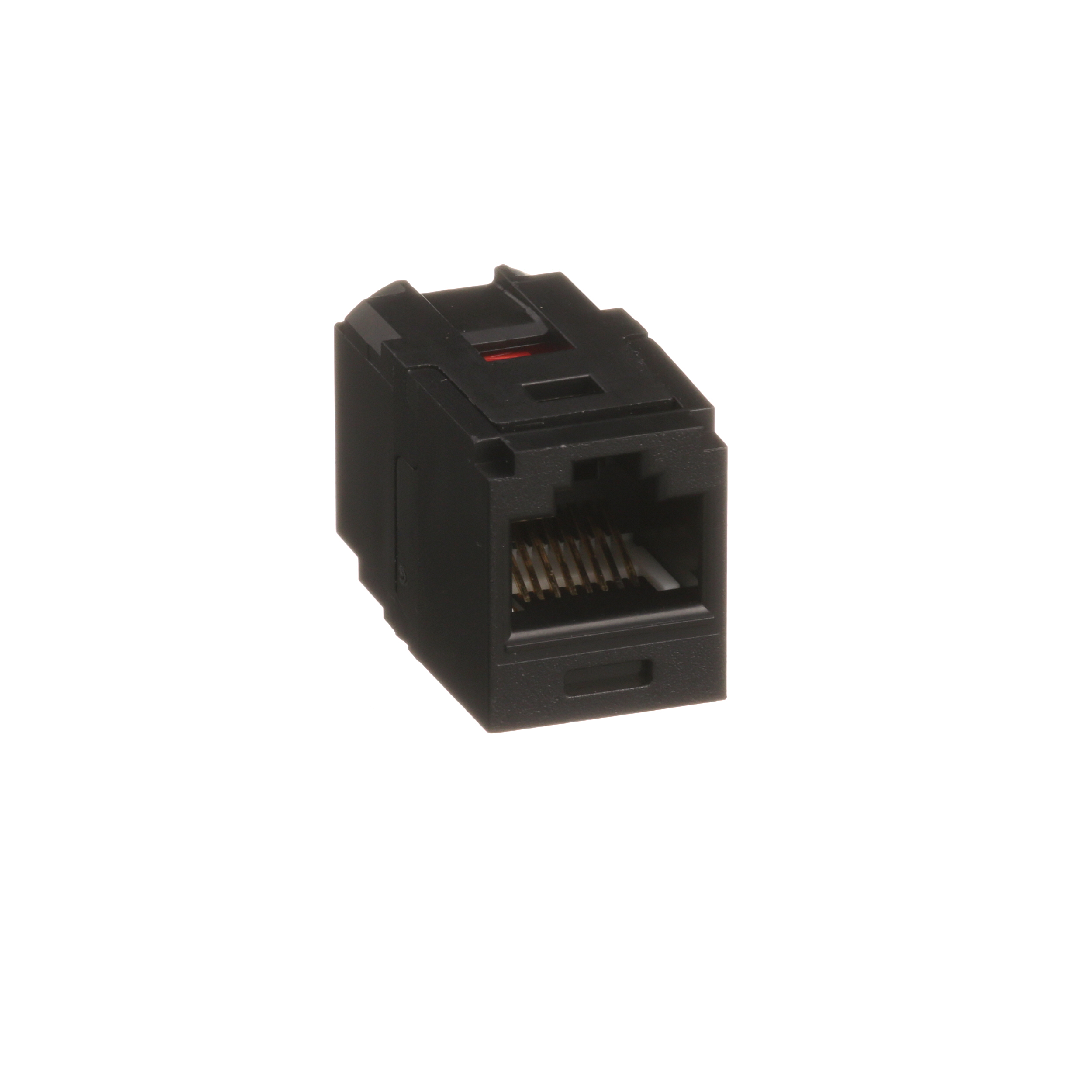

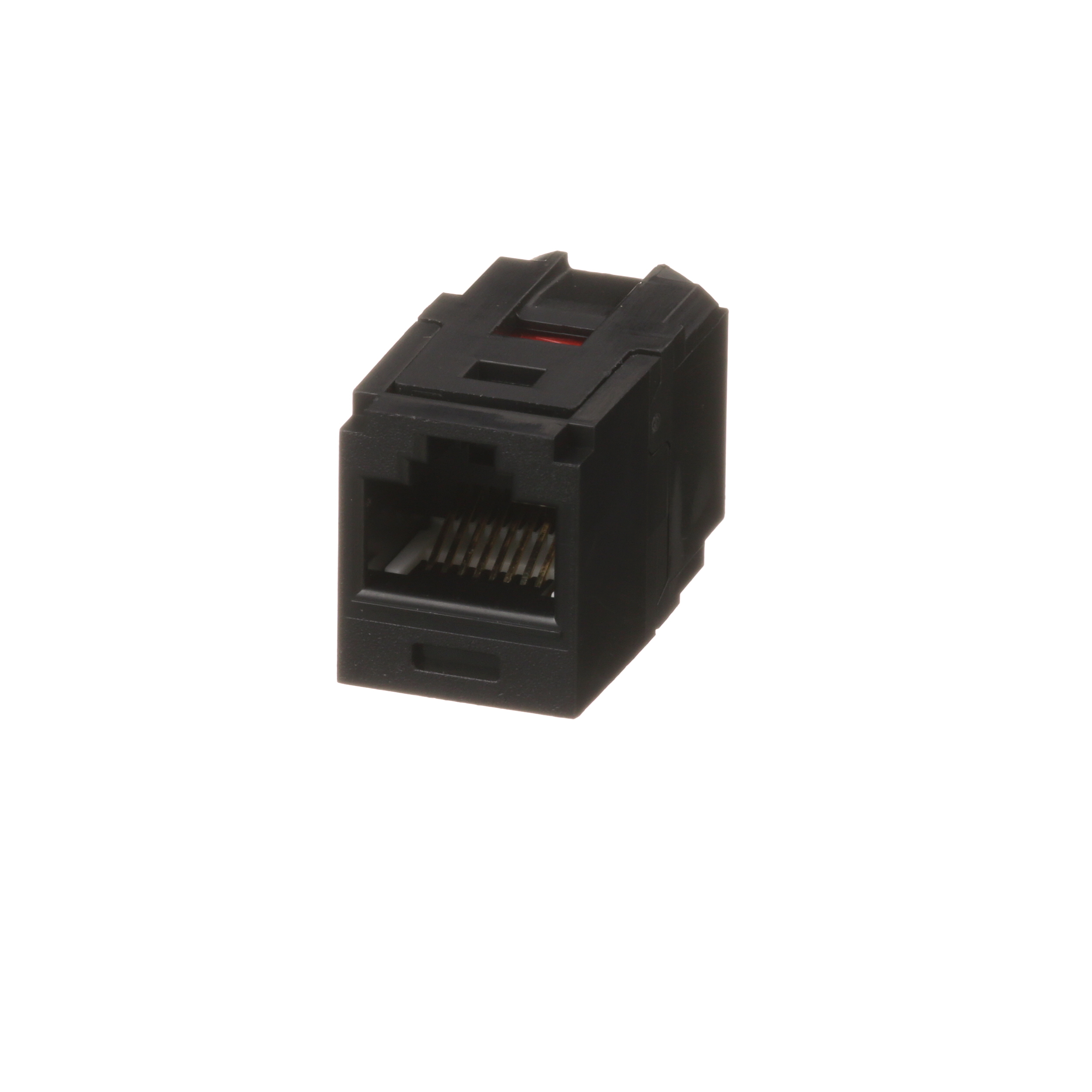

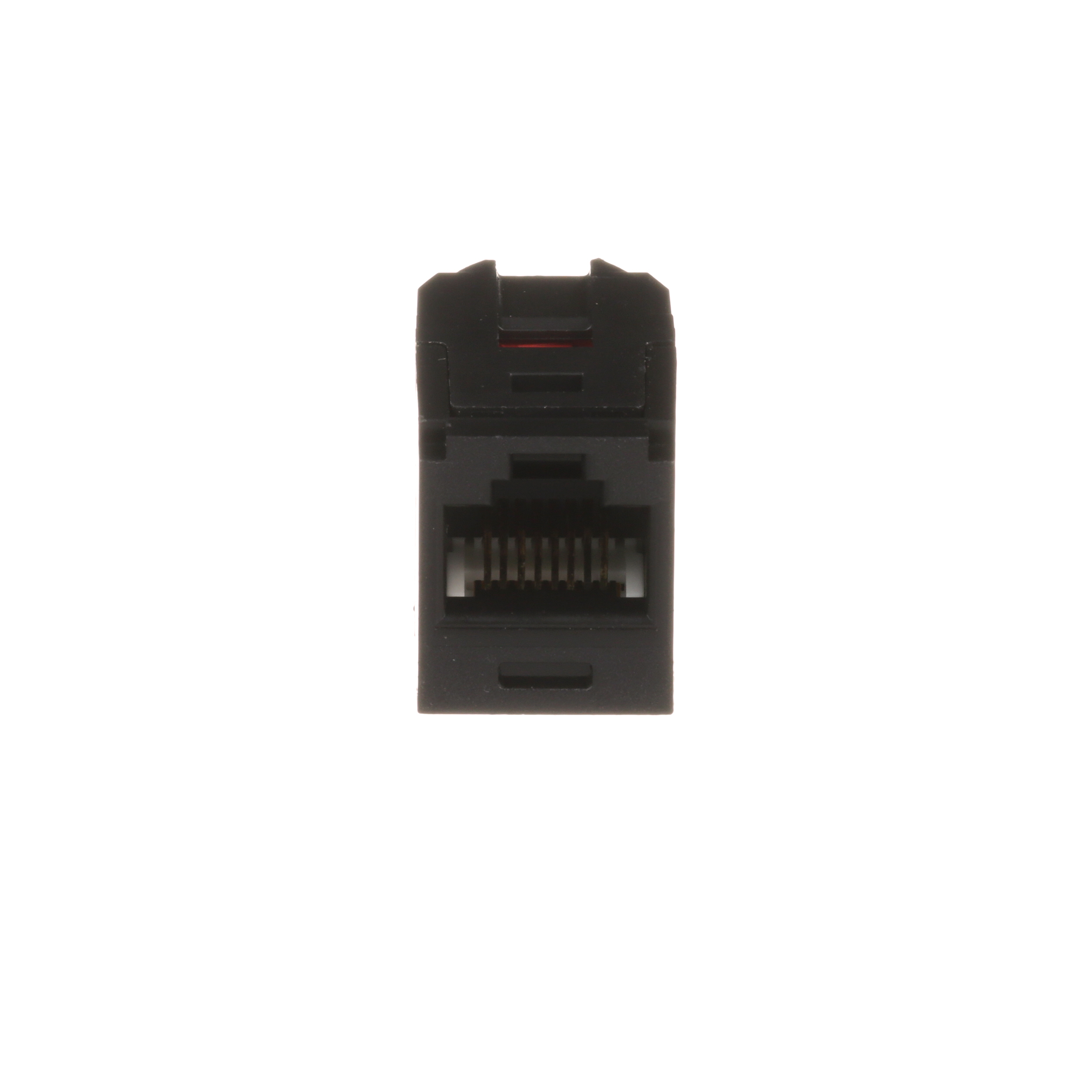

Product image for Mini-Com® Cat 6 UTP RJ45 Coupler Module, Black
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Mini-Com® Cat 6 UTP RJ45 Coupler Module, Black

Manufacturer: Panduit | Catalog # CC688BL | Electrozad South Part # 304715
$36.91 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
The Mini-Com® Cat 6 UTP RJ45 Coupler Module is designed and 100% factory tested to allow for up to two couplers to be used and meet channel performance requirements. Contacts are plated with 50 microinches of gold for superior performance. The coupler module is compatible with Mini-Com Modular Patch Panels and Faceplates. The coupler is black.

Technical Information

Applications
For Ethernet 10BASE-T, 100BASE-T (Fast Ethernet) and 1000BASE-T (Gigabit Ethernet), 155 Mbps ATM, 622 Mbps ATM, 1.2 Gbps ATM, Token Ring 4/16, Voice Over Internet Protocol (VoIP)
Cable Entry
T568A/T568B
Cable Type
Category 6
Material
ABS
Max Operating Temperature
167 degrees F
Minimum Operating Temperature
-10 degrees C
Mounting Type
Patch Panel
Number of Positions
8
Performance Level
Category 6
Temperature Rating
-10 to 65 degrees C
Type
Unshielded, Universal, 8-Wire, RJ45

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
Mini-Com, TX6™ Plus

General Product Info

12-Digit UPC
074983017812
Color
Black
Environmental Conditions
< 40 m Humidity, < 40 m Thermal Shock
GTIN
00074983017812
Product UPC
07498301781
Used With
T568A/T568B Cable

Dimensions

Depth
1.09 in
Height
0.71 in
Overall Length
1.09 in
Width
0.62 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
China
