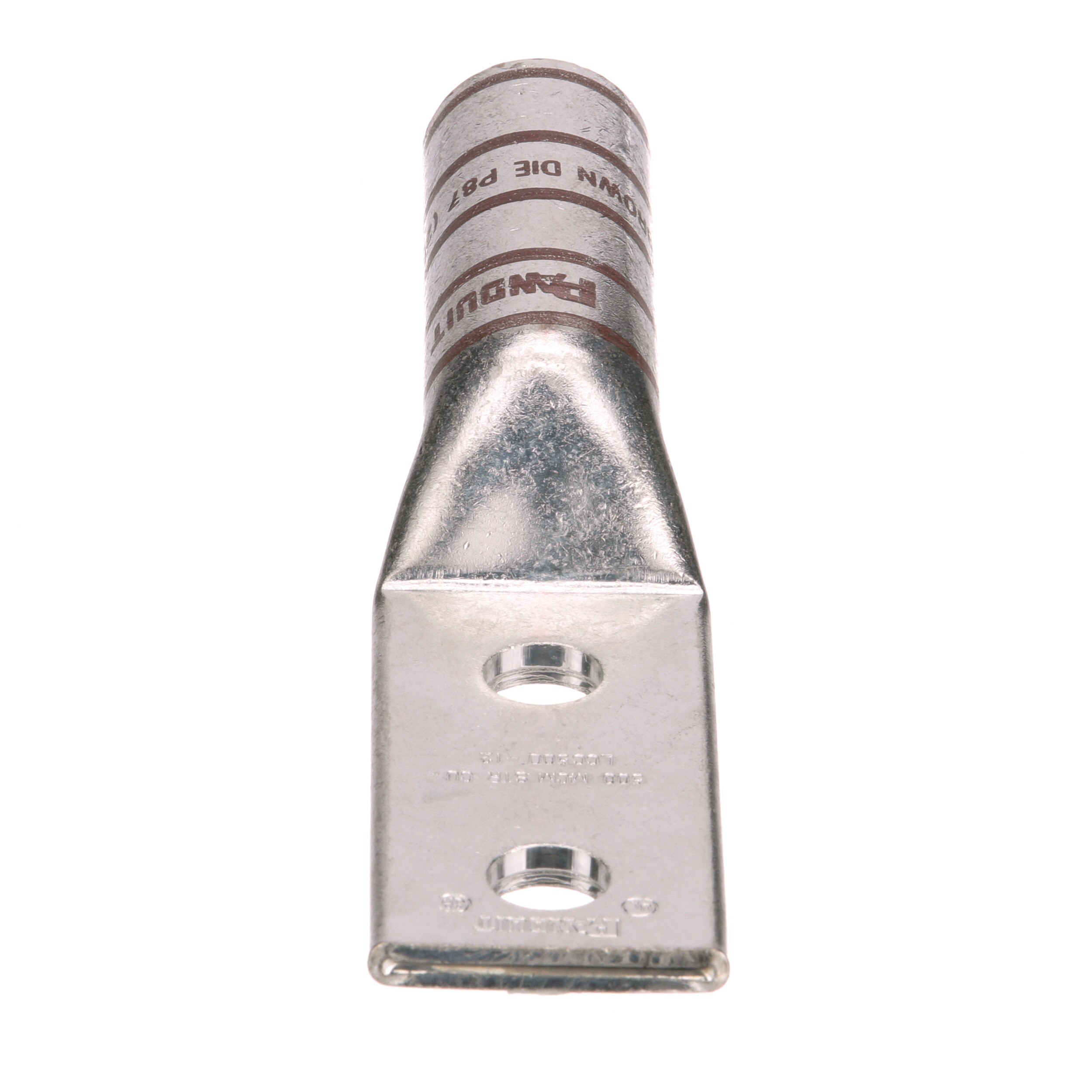

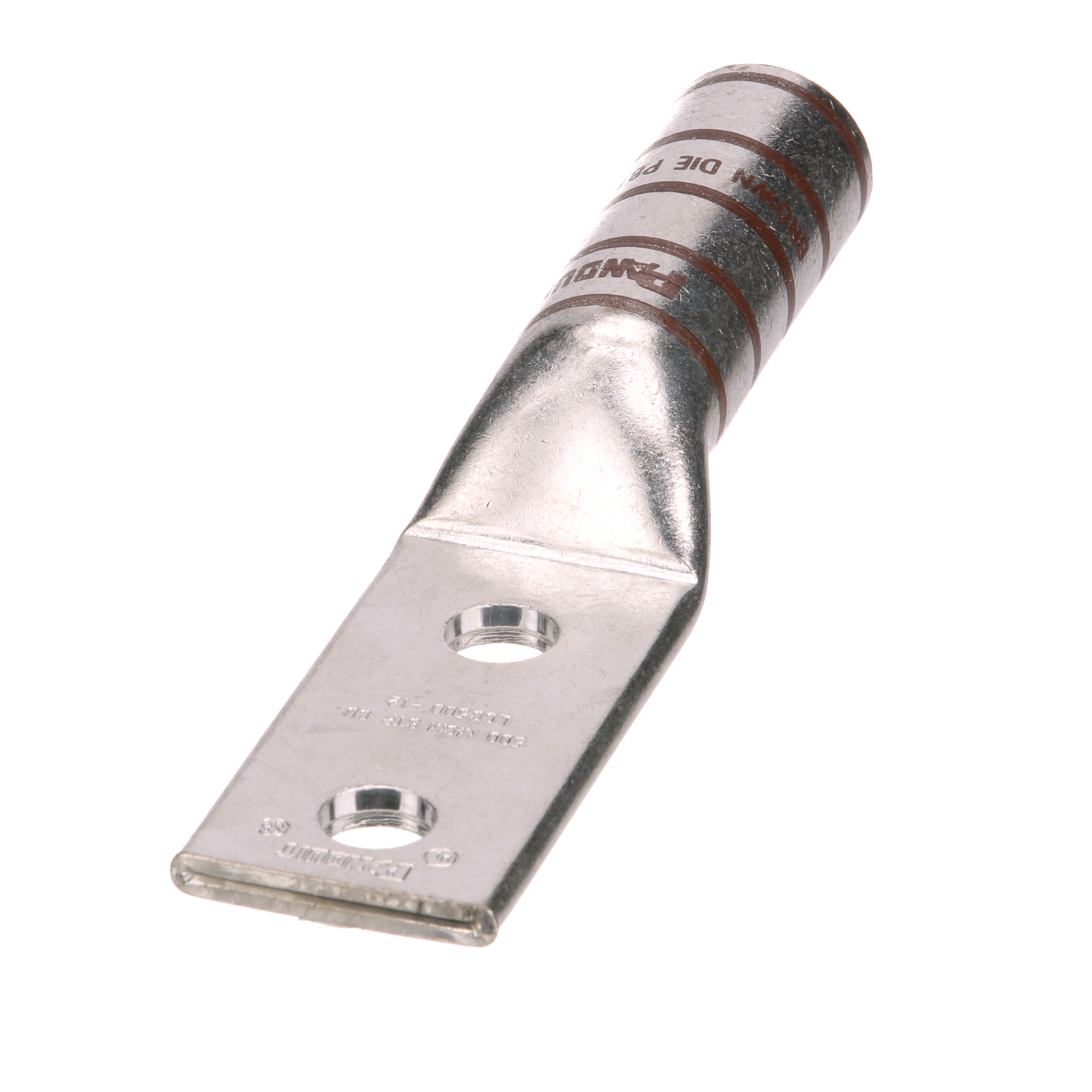

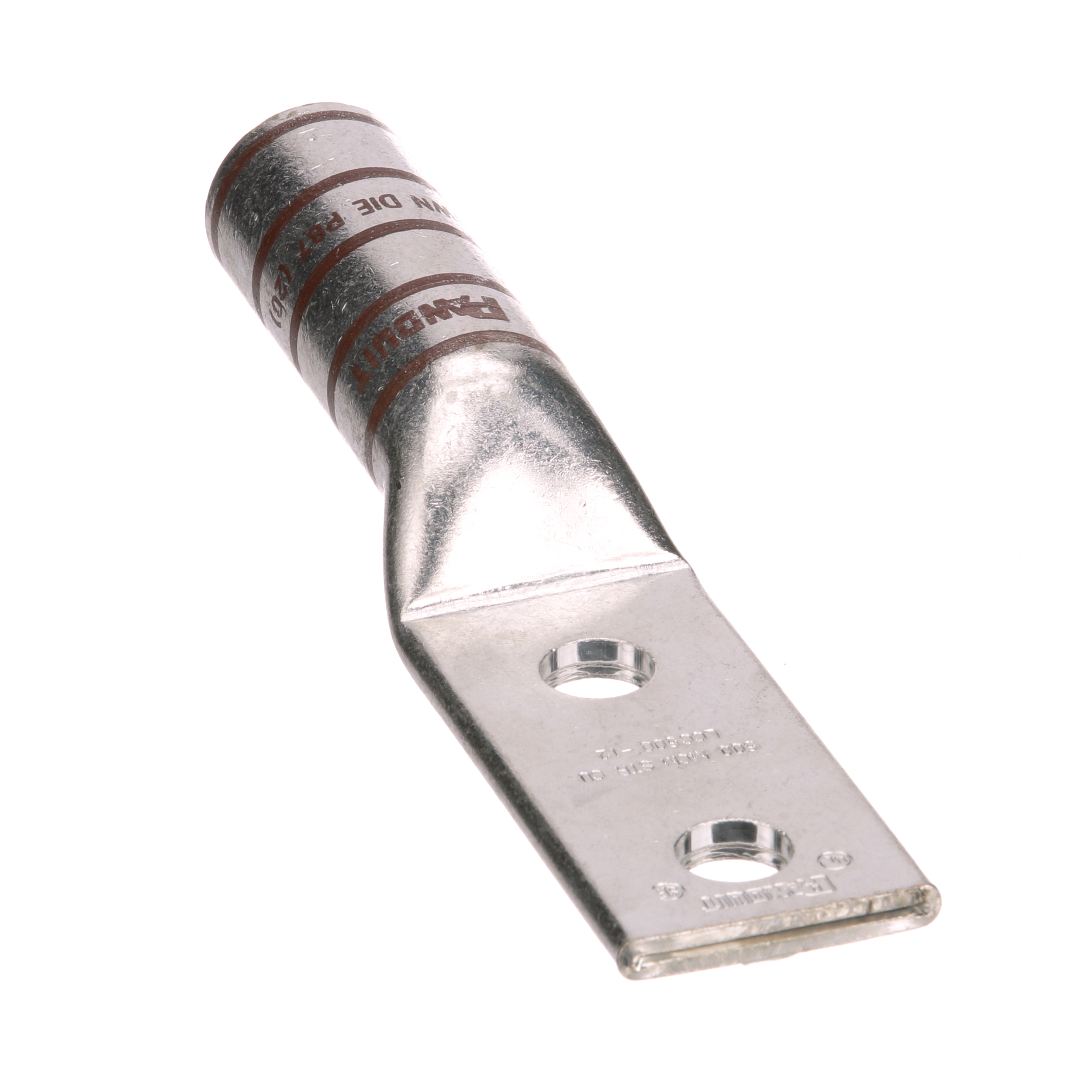

Lug straight 2-hole long-barrel copper 500KCMIL brown 1/2"

Manufacturer: Panduit | Catalog # LCC500-12-6 | Electrozad South Part # 30519
$5,949.97 /c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
Long-barrel lug, two-hole for use with stranded copper conductors. Long-barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance. Colour-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. Enclosed barrel prevents corrosive material from entering barrel when used in harsh environments. Tin-plated to inhibit corrosion. Temperature rated to 90..C when crimped with Panduit and specified competitor crimping tools and dies.

Technical Information

Angle
Straight
Barrel Length
2.5 in
Barrel Type
Long without Inspection Window
Cable Size
AWG
Color Coding
Brown
Conductor Size
500 kcmil
Material
Copper
Number of Holes
2
Size
500 kcmil Code
Stud Size
1/2 in
Tongue Thickness
0.22 in
Tongue Type
Standard
Tongue Width
1.54 in
Type
Type LCC

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983902651
Color
Light Brown
Finish
Tin Plated
GTIN
00074983902651
Product UPC
07498390265

Dimensions

Outer Diameter
1.06 in
Overall Length
6.36 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Mexico
