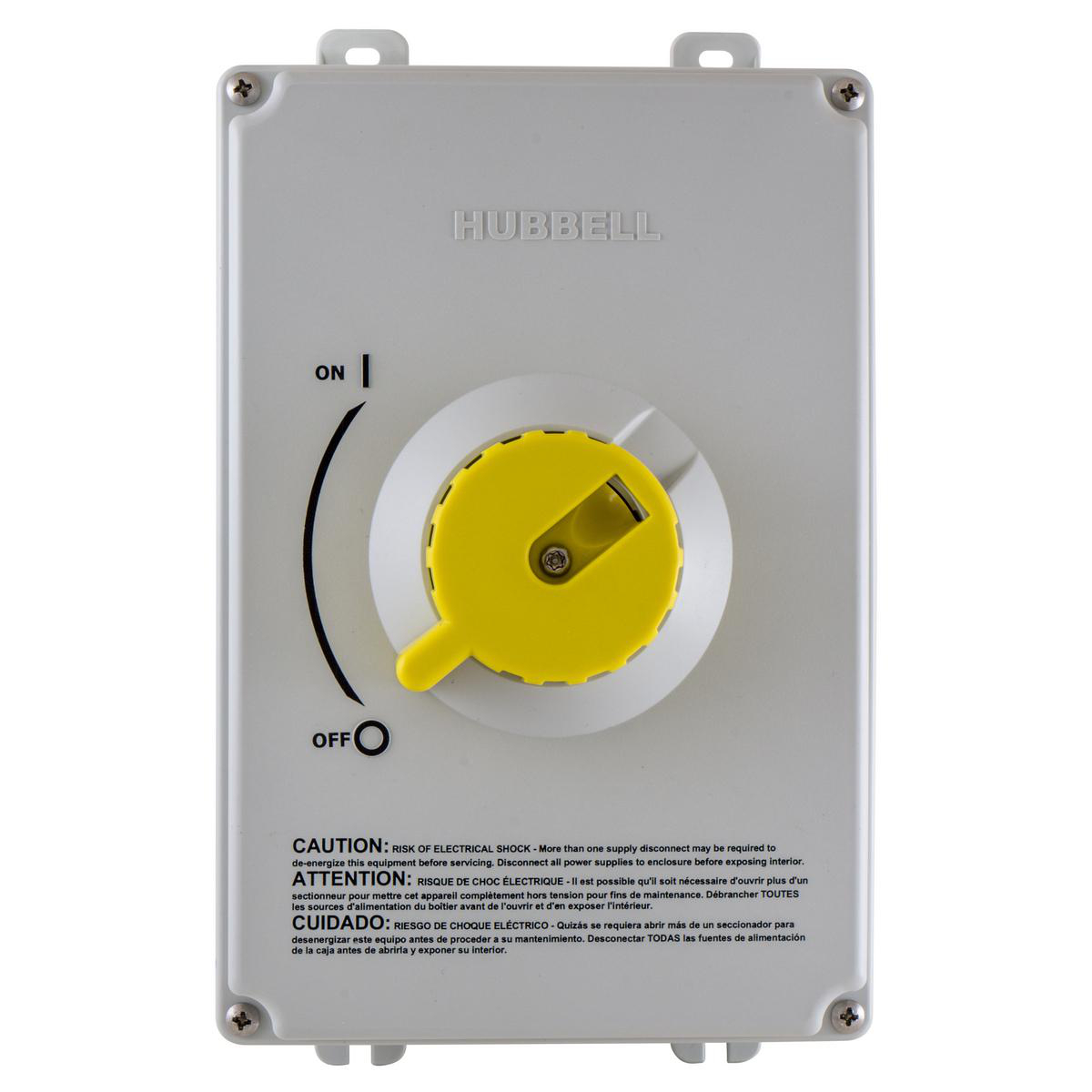

Product image for HUB MD60 DISCONNECT MOTOR 60A NEMA4X
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HUB MD60 DISCONNECT MOTOR 60A NEMA4X

Manufacturer: Hubbell Wiring Devices | Catalog # MD60 | Electrozad South Part # 306860
$154.47 /ea
pc
Log in or register to view your price, purchase history, and more!
34 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual
Motor Disconnect. HP Rated. Type 4X, 12. Accepts up to 2 Auxiliary Contacts. OSHA Compliant LO/TO Handle. Compact, Installation Friendly Enclosure. Unable to Open the Cover when ON Position; cover Locked when Energized

Technical Information

Applications
Circuit Control
Contact Configuration
NO, NC or 2 NO
Contact Rating
10A 600V AC
Enclosure
NEMA 4X
Number of Poles
2 Pole
Operating Cycles
10,000 Minimum
Operating Temperature
-40 Degrees C to 75 Degrees C
Size
Standard Sized Product
TC Connection
Terminal Screws
Type
Unfused
Wattage
36 kW

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Disconnect Switches

General Product Info

12-Digit UPC
783585457840
GTiN
00783585457840
Housing Material
Polycarbonate
Product UPC
78358545784
Used With
20 and 40 metric hp Motor

Dimensions

Width
6.500 in

Certifications & Compliance

Country of Origin
China
