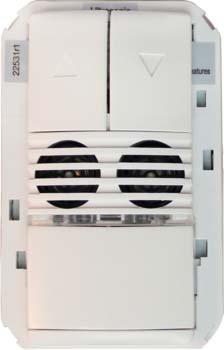

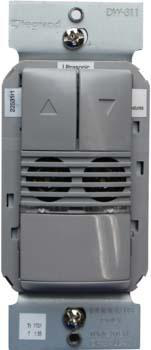

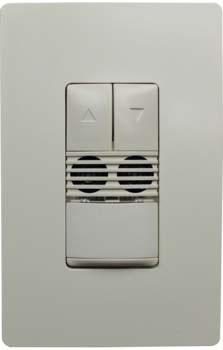

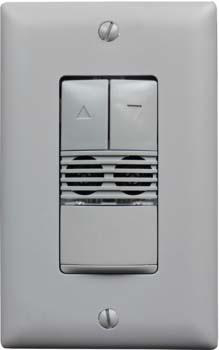

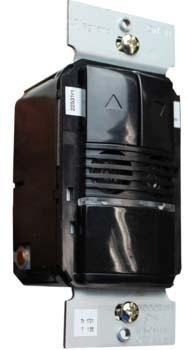

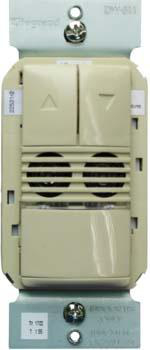

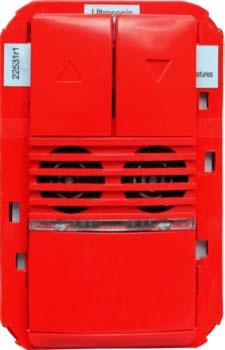

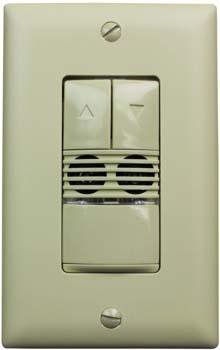

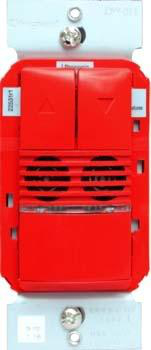

Wattstopper® Dual Technology 0-10V Dimming Wall Mounted Occupancy Sensor,

Manufacturer: Watt Stopper | Catalog # DW-311-W | Electrozad South Part # 308771
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 5 to 7 days
Specification Sheet Installation / Instruction Manual CAD Drawing #1 CAD Drawing #2 CAD Drawing #3 D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL L WIRING DIAGRAM URL
The DW-311 dual technology dimming wall switch sensor can turn lights OFF and ON based on occupancy and allow the user to increase or decrease the lighting level. It combines the benefits of passive infrared (PIR) and ultrasonic occupancy detection technologies and works with 0-10 VDC dimming drivers and ballasts to control lighting loads including LEDs.

Technical Information

Amperage
8.3 A
Applications
For Offices, Conference Rooms, Lunch/Break Rooms, Commercial
Connection Type
Wired
Enclosure
Plastic Housing
Indicator
True
Input Voltage
120/230/240/277 VAC
Mounting Type
In-Wall
Sensing Range
Major motion, PIR 35 x 30, Ultrasonic 20 x 20 Minor motion, PIR 20 x 15, Ultrasonic 15 x 15
Sensor Type
Occupancy
Standard
CSA C22.2 No. 14,IEC 60947-3,UL 508
Type
Automatic, Metered, Service Entrance, Advanced
Voltage
120/277 V
Wattage
1200 W

Manufacturer Information

Brand
Legrand
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
754182939428
Color
White
Finish
Matte
GTIN
00754182939428
Product UPC
75418293942

Dimensions

Depth
1.81 in
Height
2.73 in
Length
2.73 in
Width
1.75 in

Certifications & Compliance

Country of Origin
China
