Receptacle locking 2P3W 28VDC 30A Yellow

Manufacturer: Hubbell Wiring Devices | Catalog # HBL328DCR | Electrozad South Part # 309584
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL P WARRANTY URL

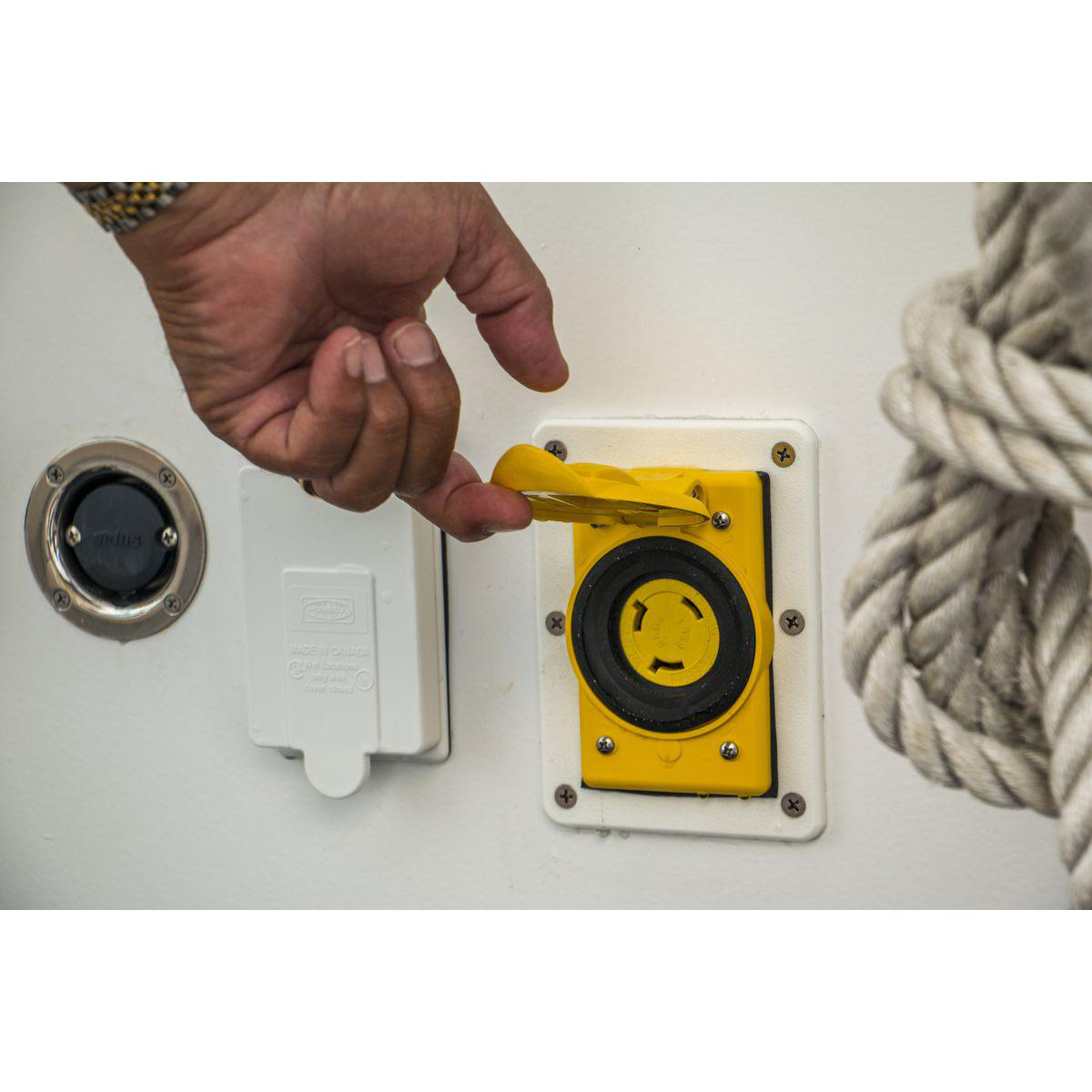

Locking receptacle DC rated electrical system designed specifically for larger electric fishing reel systems. Up until now, larger electrical fishing reel systems typically utilized 30Amp AC rated corrosion resistant devices since there were no DC rated devices. The new system features a corrosion resistant plug, connector Body and receptacle and can be used along with a Hubbell Outlet box and weather proof cover plate to complete the installation.

Technical Information

Amperage
30 A
Applications
Electric Fishing Reel Devices
Conductor Size
10 AWG
Current
30 A
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
1
Number of Poles
2
Number of Wires
3
Rating
28 V
Size
Standard
Standard
UL
TC Connection
Screw Terminal
Type
Corrosion-Resistant
Voltage
28 V
Wattage
840 W
Wire Count
3
Wire Size
10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585353166
Color
Yellow
Environmental Conditions
Weather Resistant
GTIN
00783585353166
Product UPC
78358535316
Weight
0.25 lb

Dimensions

Height
8.700 in
Length
7.500 in
Width
1.700 in

Certifications & Compliance

Country of Origin
Puerto Rico
