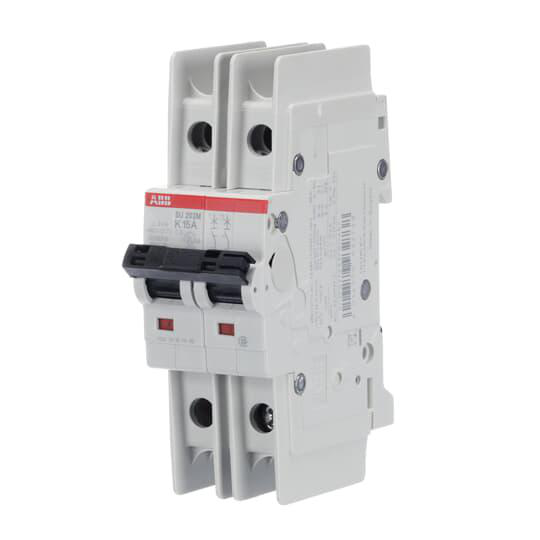

Image thumbnail 1
Image thumbnail 2

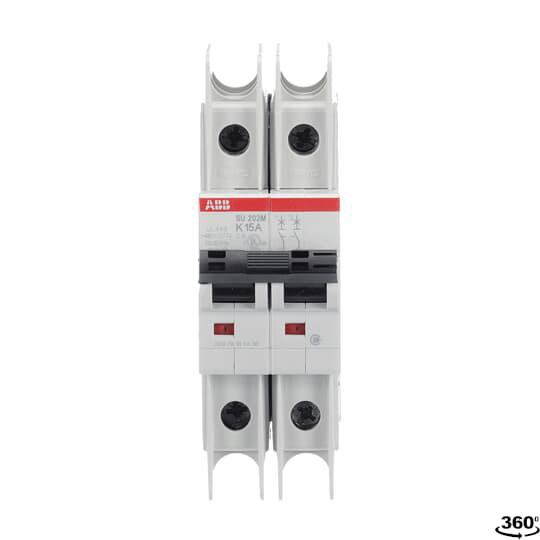

Image thumbnail 3
Email

ABB SU202M-K15 BREAKER CIRCUIT MINIATURE 2P 15A 480V/ 277V

Manufacturer: ABB Inc | Catalog # SU202M-K15 | Electrozad South Part # 309765
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure CAD Drawing #1
Miniature Circuit Breaker, Rated Current 15 Amps, 2 Pole, Interrupt Rating 10 kA, Trip Curve K, Voltage up to 277/Y480 VAC, 48/96 VDC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, UL 489, CSA 22.2 No. 5

Technical Information

Amperage
15 A
Applications
Branch Circuit Protection
Conductor Size
18-4 AWG Conductor, 18-8 AWG Busbars
Current
15 A
Interrupt Rating
10 kA
Mounting Type
35 mm DIN Rail
Number of Poles
2
Operating Temperature
55 degrees C
Power Rating
2.4 W
Standard
CSA 22.2 No. 5,EN 60947-2,IEC,UL 489
Temperature Rating
-25 to 55 degrees C
Terminal Type
Screw Terminals
Trip Type
K-Curve
Type
High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
Voltage
277/480 V

Manufacturer Information

Brand
ABB

General Product Info

12-Digit UPC
888614423398
Environmental Conditions
25 °C at 95 - 100% Relative Humidity, 55 °C at 90 - 96% Relative Humidity, 3 Pollution Degree
GTIN
04016779932738
Product UPC
88861442339

Dimensions

Height
111 mm
Length
69 mm
Width
35 mm
