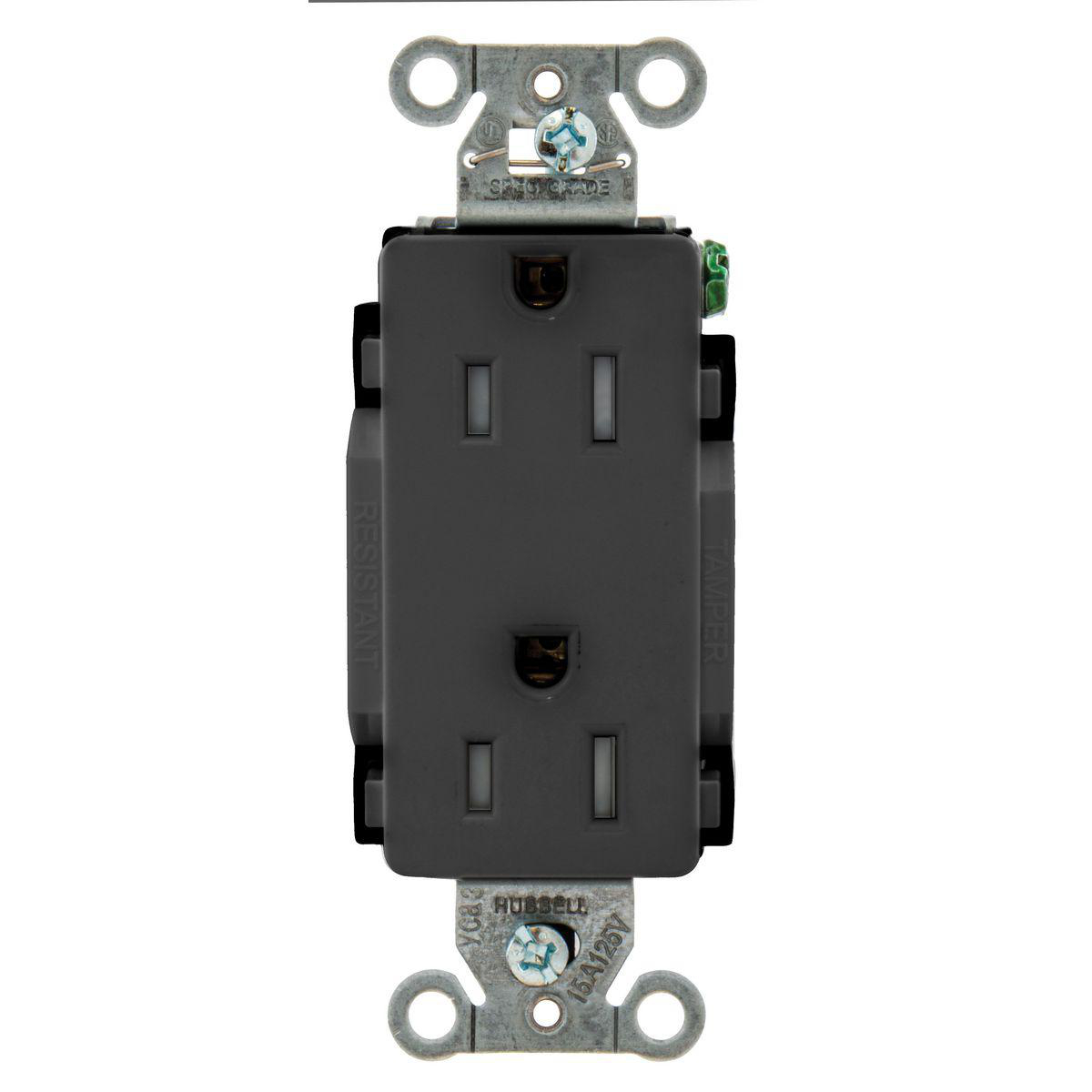

Receptacle 5-15R TR duplex 2P 15A 125V DECO blk

Manufacturer: Hubbell Wiring Devices | Catalog # DR15BLKTR | Electrozad South Part # 312864
$7.82 /ea
pc
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Hubbell STYLELINE receptacles strait blade are made of nylon plastic rectangular flat face duplex outlet, known commonly as Decora. Available in almond, brown, black, gray, ivory, light almond, white, off white (commercial and hospital grade) and orange (isolated ground), standard, WR (weather resistant) and TR (tamper proof) versions. They come in duplex 2 poles, 3 wires 15 or 20 amp, 125 volts.

Technical Information

Amperage
15 A
Applications
Commercial Specification Grade
Base Material
Nylon
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
15 A
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grade
Commercial
Grounding
Self
Horsepower
0.5 hp
Material
Thermoplastic
Mounting Type
Screw
NEMA
5-15R
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
Standard
Standard
C22.2,CSA,NEMA® WD-6,No. 42,UL,UL498 File No. E2186
Style
Style Line Decorator
Tamper Resistant?
Yes
TC Connection
Back and Side Wired
Type
Traditional, Temper-Resistant, Decorator
Voltage
125 V
Wattage
1875 W
Wire Count
3
Wire Size
14 - 10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585144344
Color
Black
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585144344
Product Series
Commercial Specification Grade
Product UPC
78358514434
Weight
0.15 lb

Dimensions

Height
3.28 in
Length
1.56 in
Width
1.14 in

Certifications & Compliance

Country of Origin
China
Overview
  • Smooth face
  • Tamper-resistant shutter complies with national electrical code requirements
  • Aesthetic Style Line® decorator design
  • Triple wipe contacts
