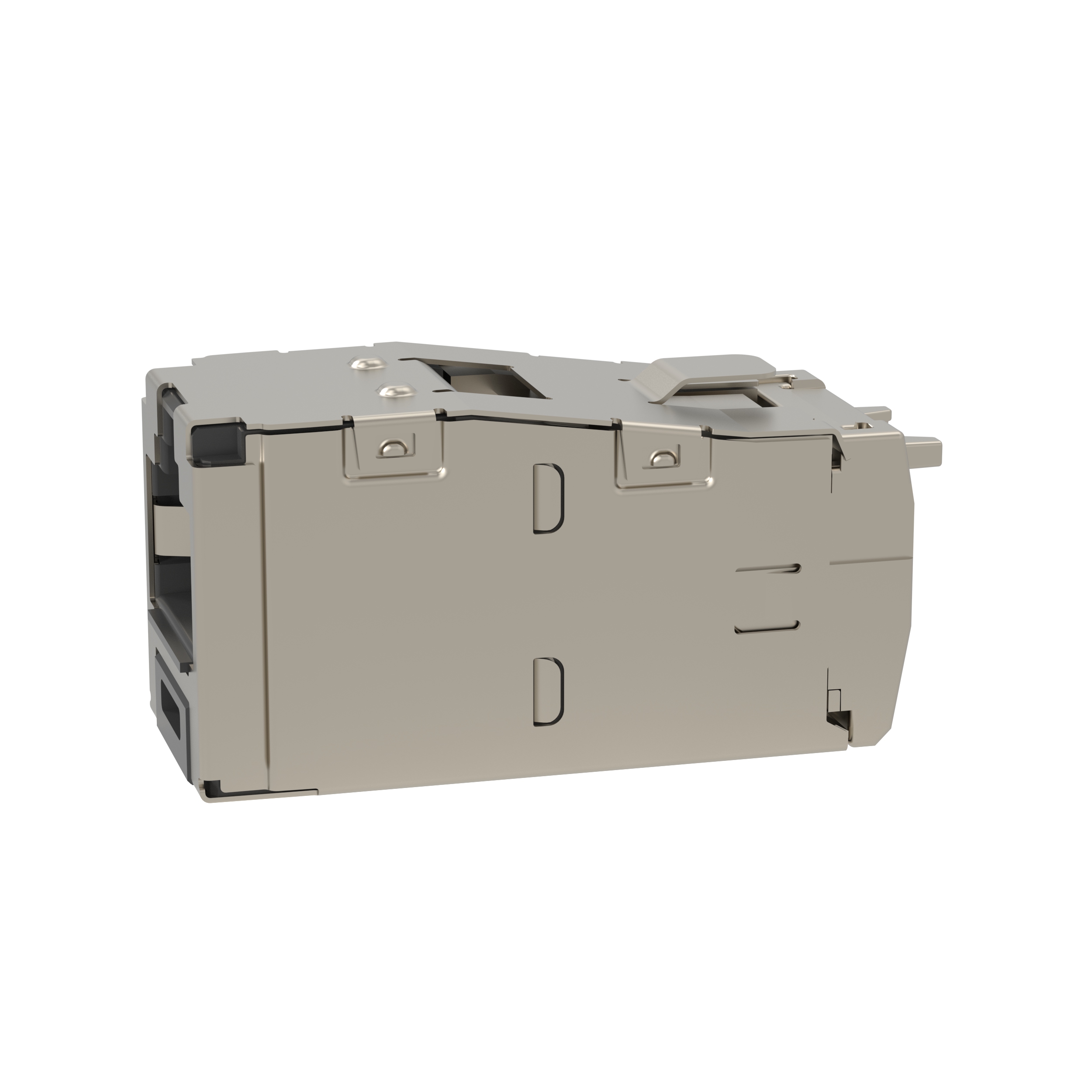

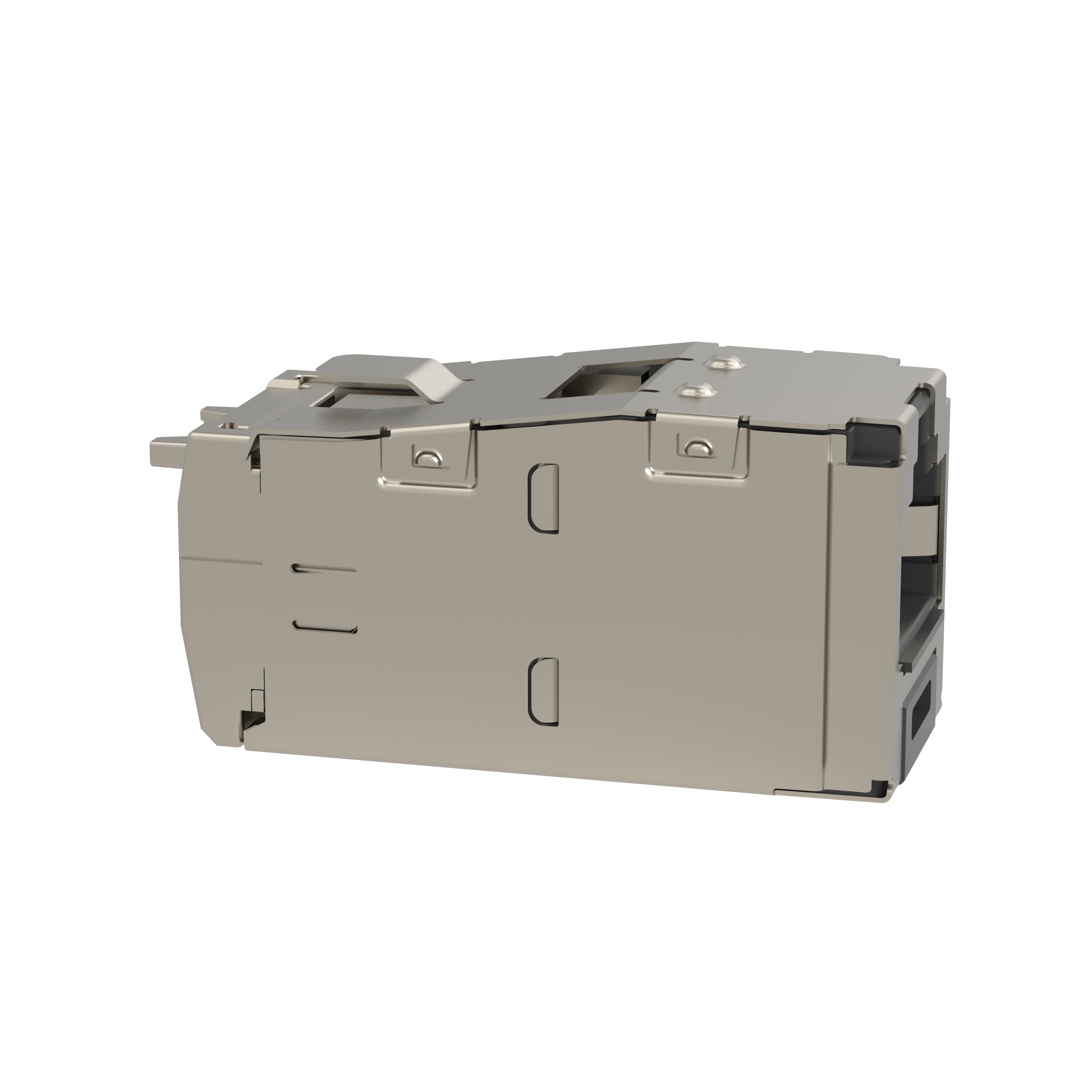

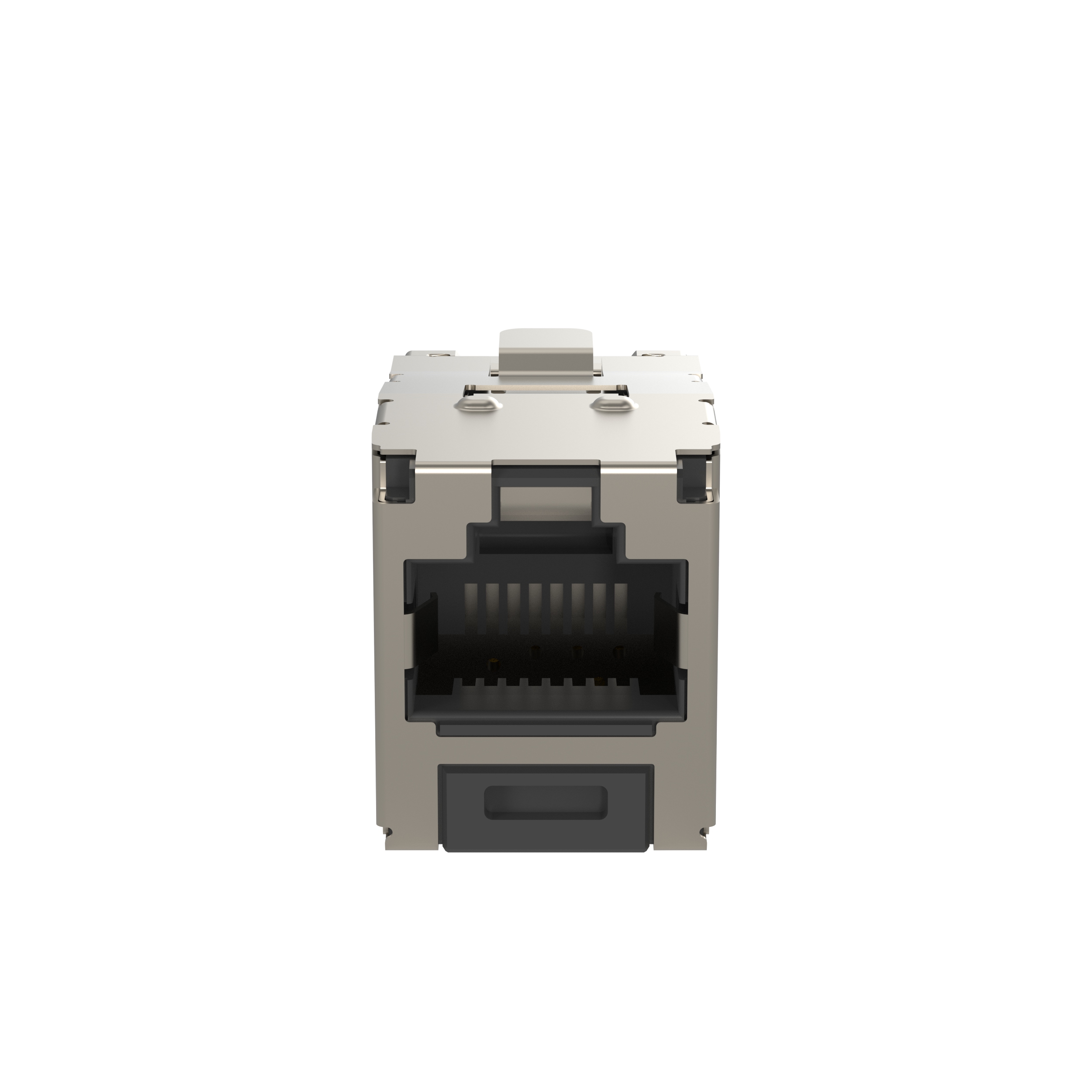

Shielded RJ45 Cat 6 TG Jack Module, Black

Manufacturer: Panduit | Catalog # CJS688TGY-24 | Electrozad South Part # 313130
$23.84 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
The Mini-Com® Cat 6 Shielded RJ45 TG Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Shielded Modular Patch Panels and Faceplates. The jack module is black and includes 24 per package.

Technical Information

Applications
Unshielded
Cable Entry
T568A/T568B
Cable Type
Category 6
Material
ABS
Max Operating Temperature
167 degrees F
Minimum Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6
Type
8-Wire, Shielded

Packaging

Package Qty
24

Manufacturer Information

Brand
Panduit
Sub Brand
Mini-Com

General Product Info

12-Digit UPC
074983010738
Color
Black
GTIN
00074983010738
Product UPC
07498301073

Dimensions

Depth
1.5 in
Height
0.73 in
Overall Length
38.1 mm
Width
15.7 mm

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
Costa Rica
