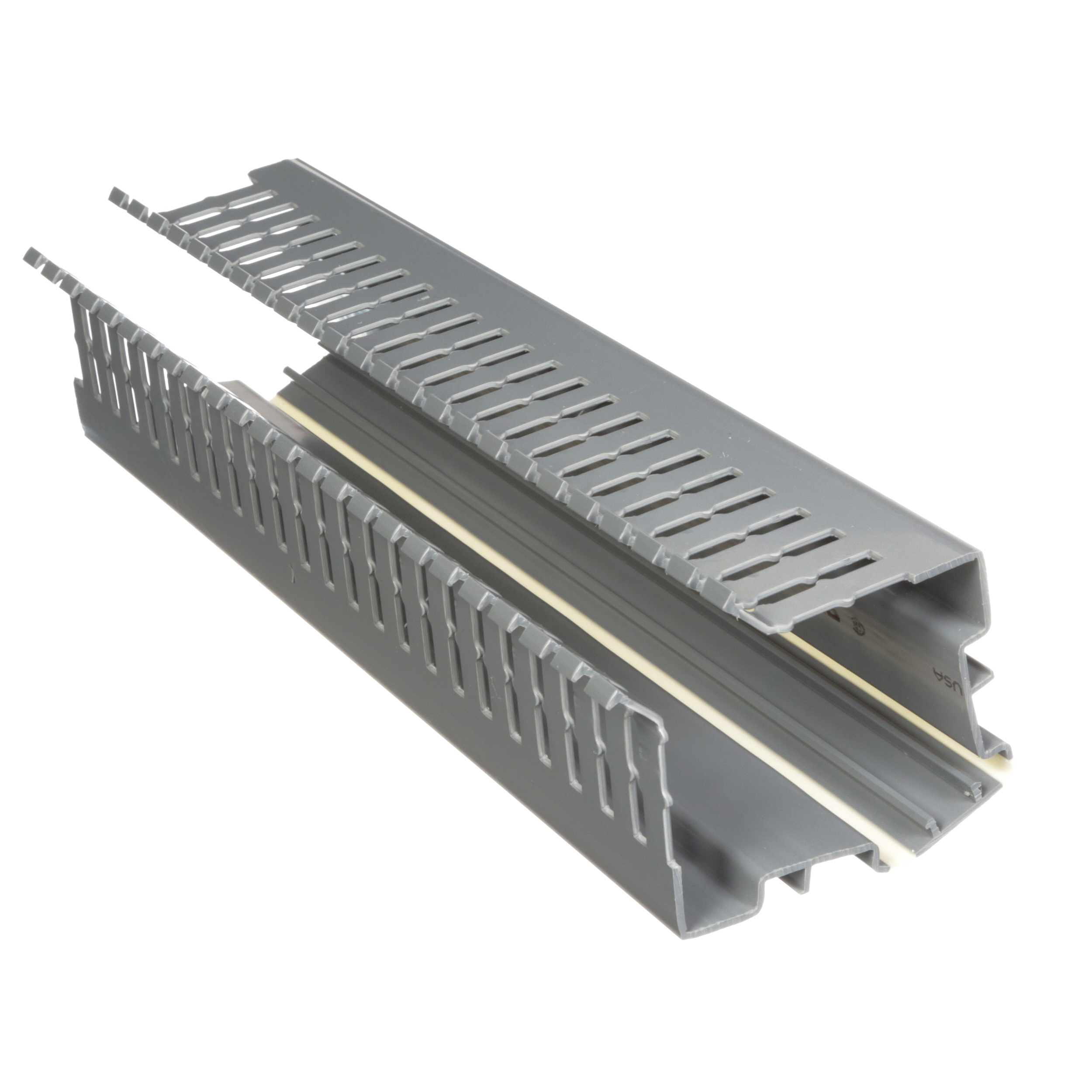

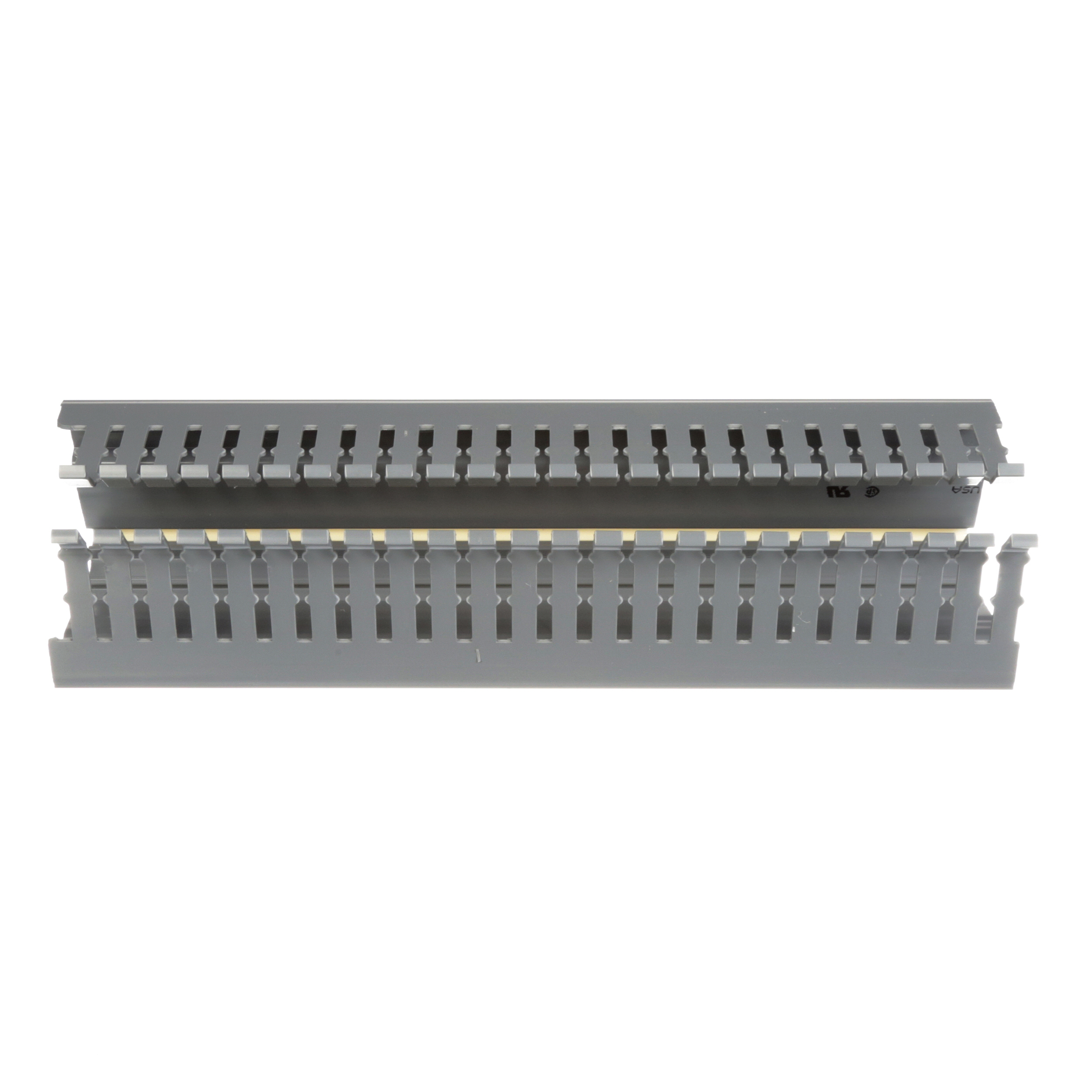

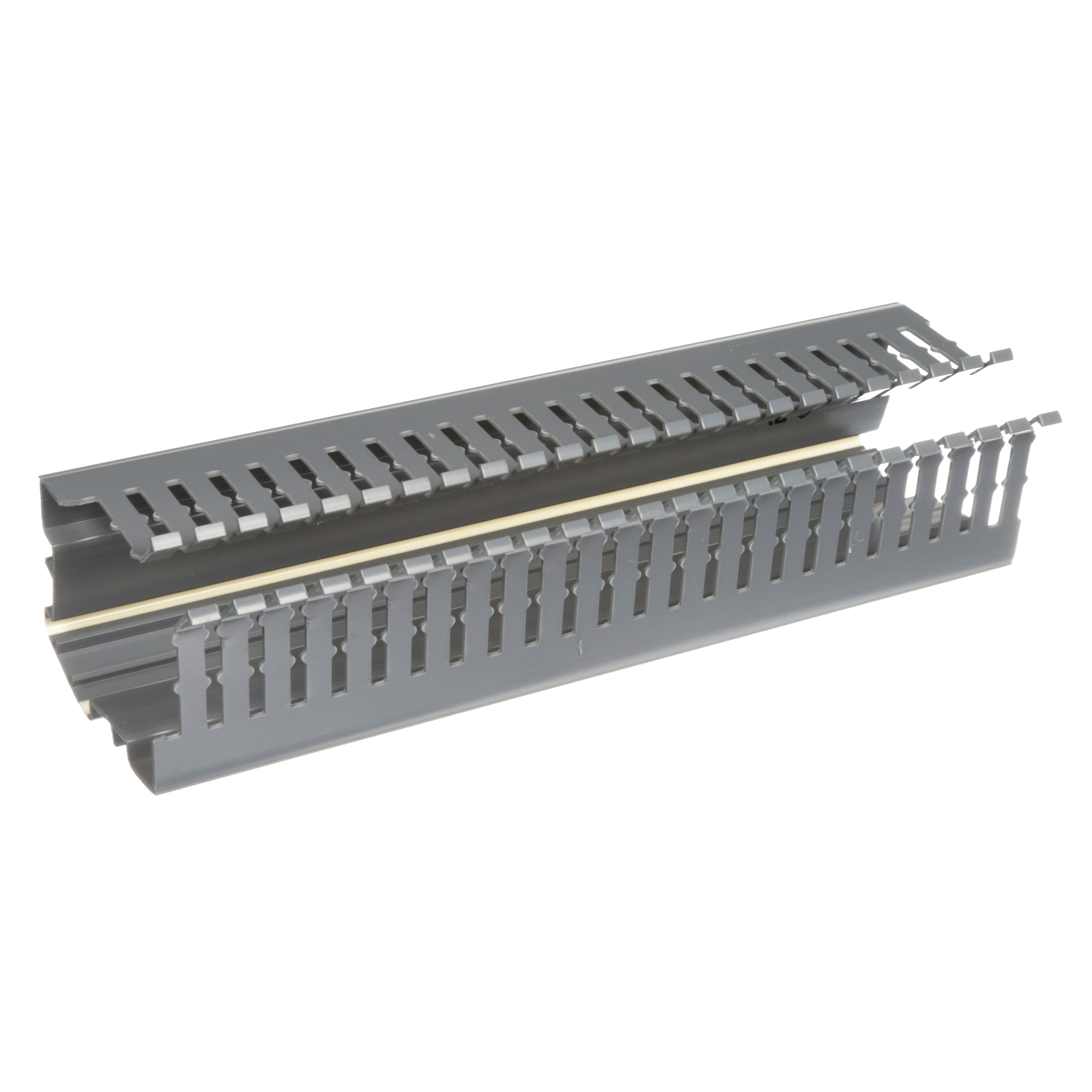

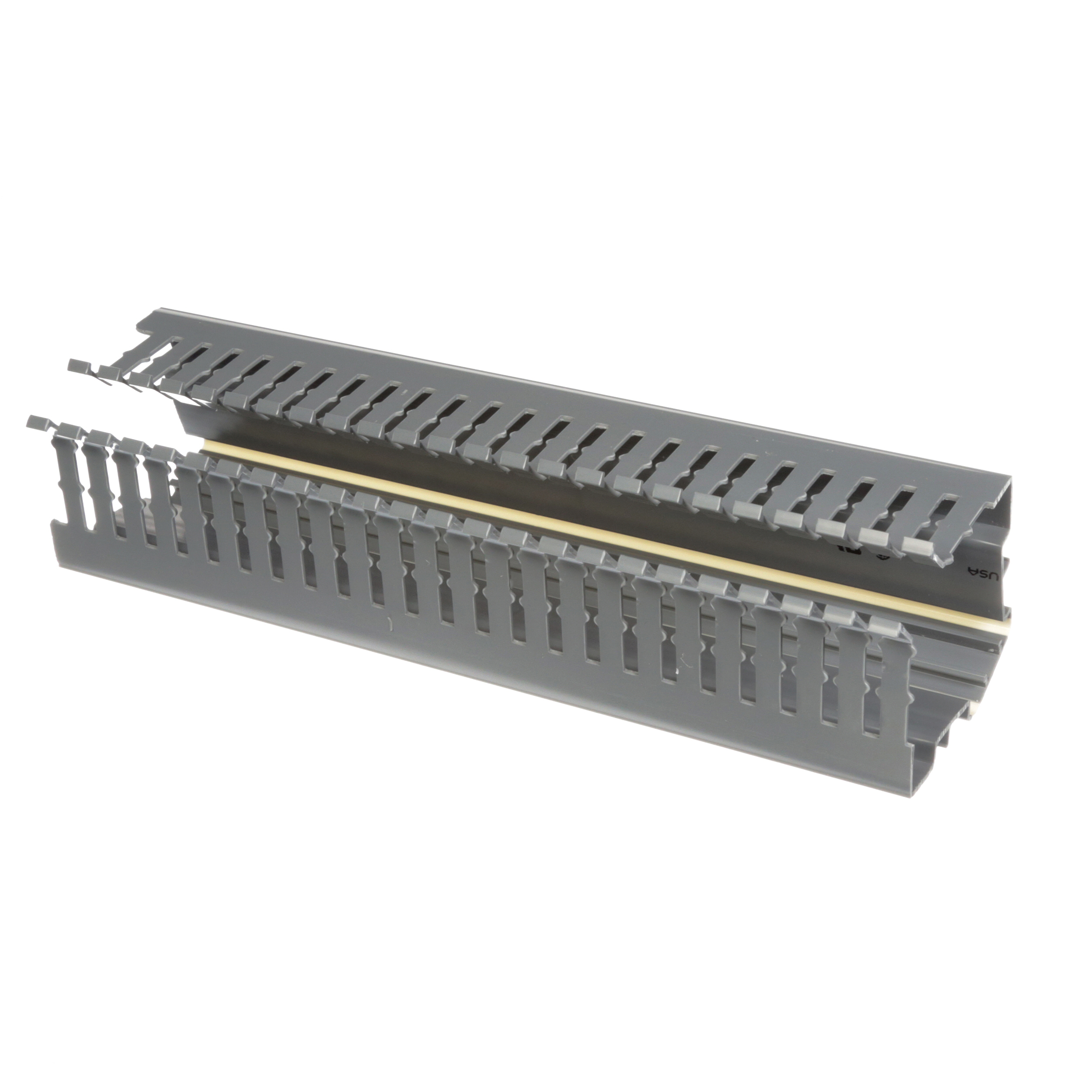

Product image for PANDUIT CWD2WH6 DUCT CORNER WIRIN PVC 3.35X2.57 WHITE 6FT
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

PANDUIT CWD2WH6 DUCT CORNER WIRIN PVC 3.35X2.57 WHITE 6FT

Manufacturer: Panduit | Catalog # CWD2WH6 | Electrozad South Part # 314083
$35.82 /ea
ft
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Installation / Instruction Manual
Panduct® PanelMax™ Corner wiring duct is an innovative one-piece wire management product which makes more efficient use of space inside enclosures, speeds installation and reduces control panel assembly costs. PanelMax ™ corner wiring duct is used in the vertical corners of compact to large electrical control panels (with both side and back panels) to route, conceal and protect electrical wiring. PanelMax™ corner wiring duct is part of a complete line of wire management solutions for control panels.

Technical Information

Applications
Corner Wiring Duct is Used in the Vertical Corners of Compact to Large Electrical Control Panels (With Both Side and Back Panels) to Route, Conceal, and Protect Electrical Wiring
Material
PVC
Mounting Type
Mounting Holes
Size
Compatable with standard 2" Height Wiring Duct
TC Connection
Standard
Type
Type 4 Mild Steel Freestanding Enclosure

Packaging

Package Qty
6

Manufacturer Information

Brand
Panduit
Sub Brand
PanelMax™

General Product Info

12-Digit UPC
074983646234
Color
White
GTIN
00074983646234
Product UPC
07498364623
UNSPSC
39131712

Dimensions

Height
2.57 in
Length
1.8 m
Overall Length
6 ft
Width
85 mm

Certifications & Compliance

Country of Origin
USA
