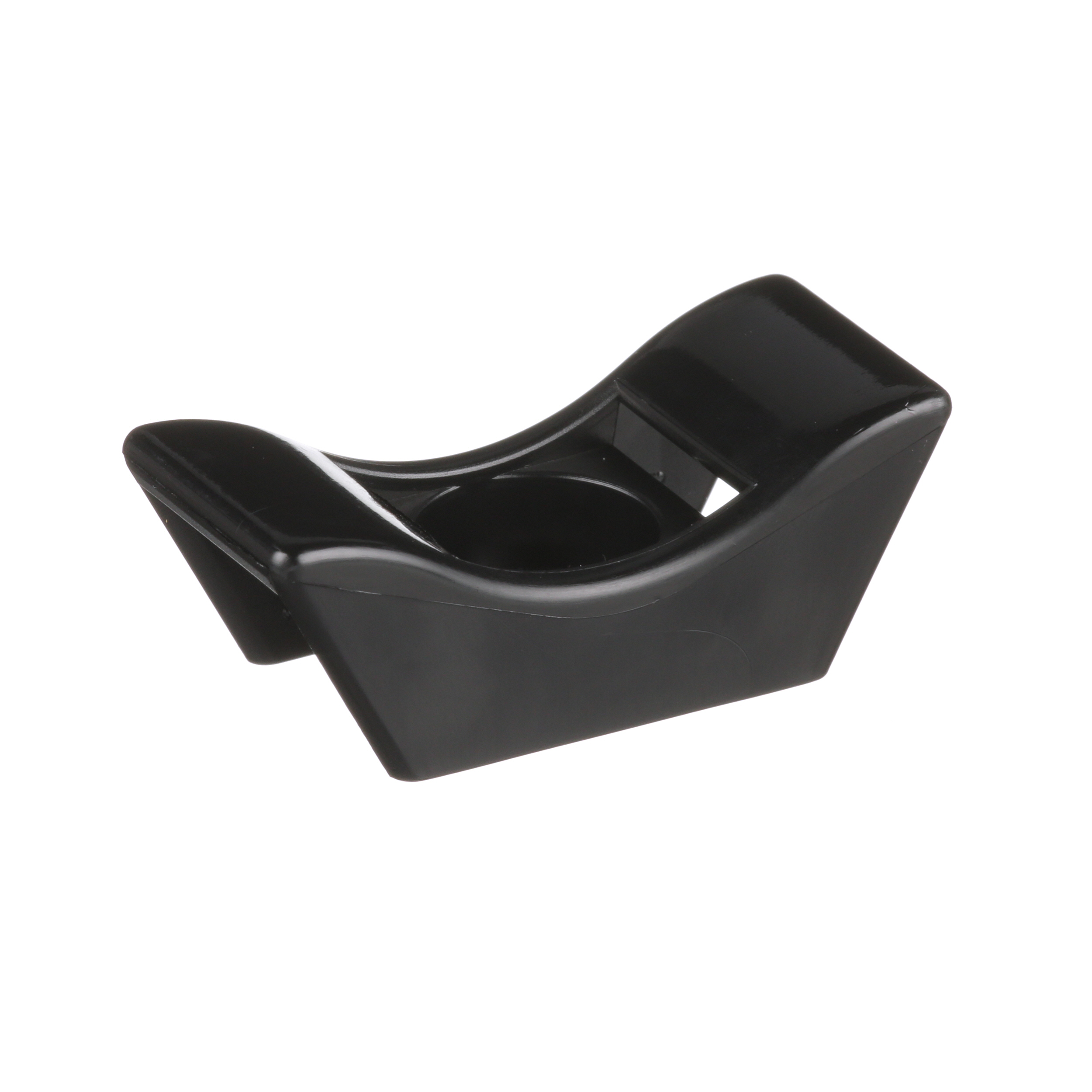

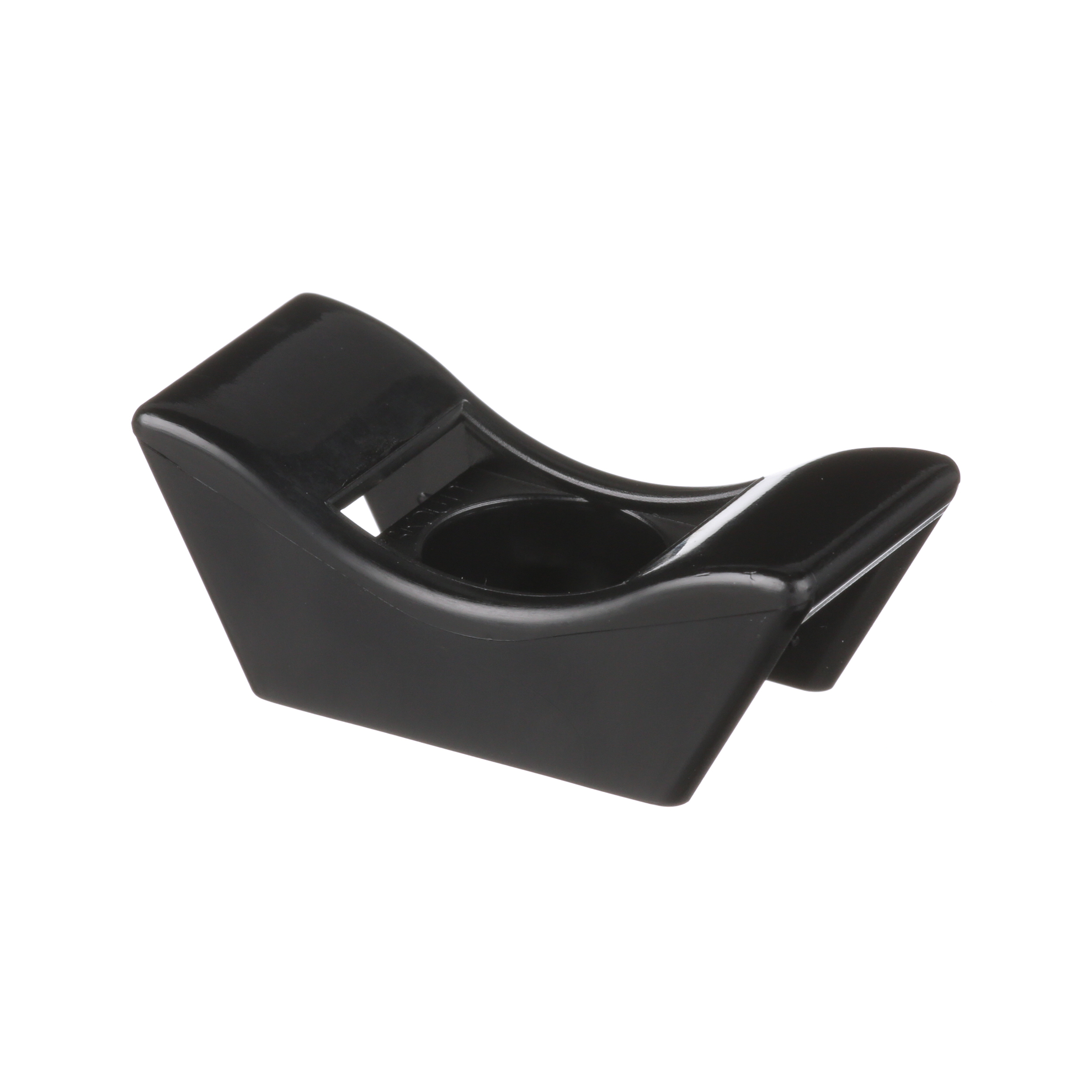

Product image for PANDUIT TMEH-S25-C0 MOUNT CABLE TIE EXTRA HEAVY BLACK 1/4 SCREW WEATHER RESISTANT NYLON 100/PACK
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

PANDUIT TMEH-S25-C0 MOUNT CABLE TIE EXTRA HEAVY BLACK 1/4 SCREW WEATHER RESISTANT NYLON 100/PACK

Manufacturer: Panduit | Catalog # TMEH-S25-C0 | Electrozad South Part # 315580
$1,766.34 /m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Product Catalog Page
Panduit TMEH-S25-C0 screw applied extra heavy cable tie mounts are designed for use with Panduit extra-heavy cross section cable ties for mounting cable, large wire bundles, or tubular shapes. Their unique cradle design provides maximum stability for cable bundling, routing and the support of large diameter and heavy cable bundles. Install with 1/4... (M6) screw. For outdoor use, made of Weather Resistant Nylon 6.6, are black in color and come in packages of 100.

Technical Information

Applications
Indoor and Outdoor Applications
Cable Size
NA
Cable Type
Cable Tie Mount
Material
Nylon 6/6
Max Operating Temperature
185 degrees F
Minimum Operating Temperature
-60 degrees C
Mounting Type
Screw-On
Operating Temperature
185 degrees F
Screw Size
1/4 (M6)
Standard
CSA,E2186,UL
Temperature Rating
185 degrees F
Type
Heavy-Duty, Screw Applied

Packaging

Package Qty
100
Standard Packaging Qty
100

Manufacturer Information

Brand
Panduit
Sub Brand
Cable Tie Mount

General Product Info

12-Digit UPC
074983580767
Color
Black
Environment
Indoor,Outdoor
GTIN
00074983580767
Product UPC
07498358076
Used With
I, S, H, EH

Dimensions

Height
0.61 in
Length
1.62 in
Overall Length
1.62 in
Width
0.72 in
