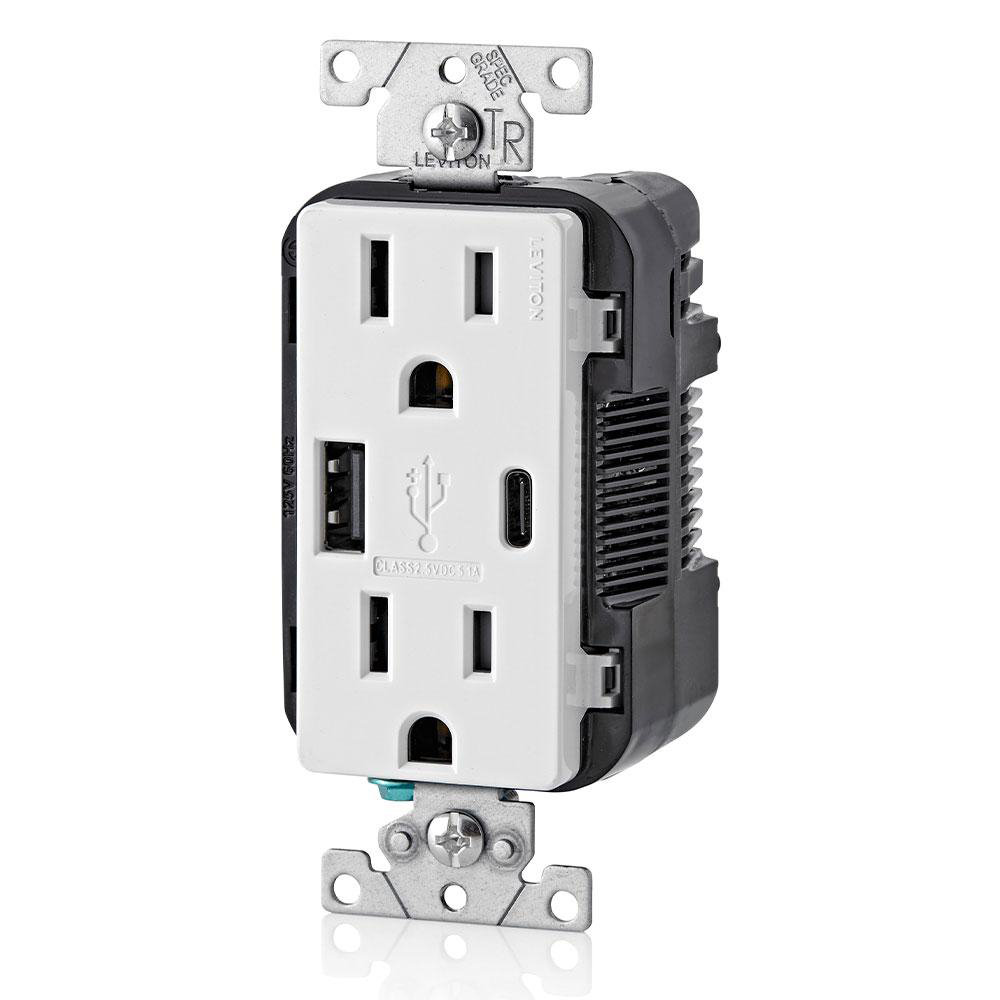

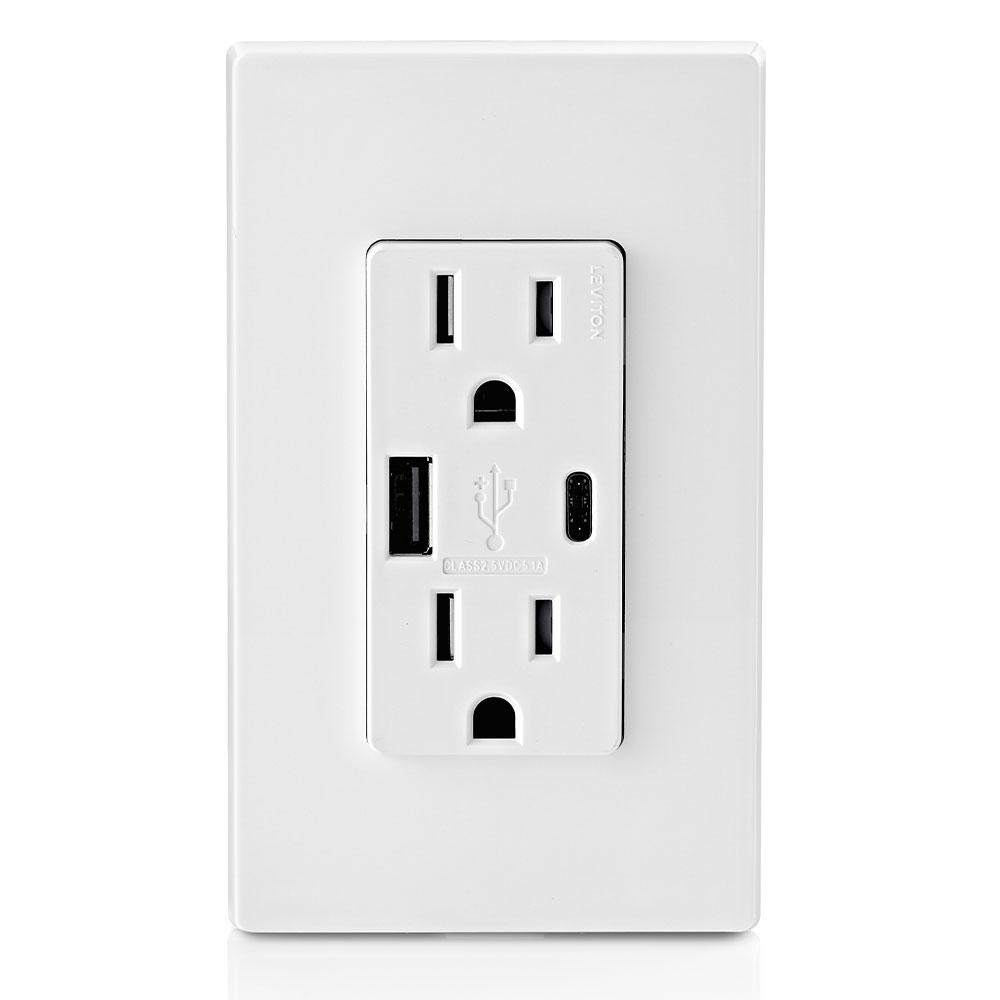

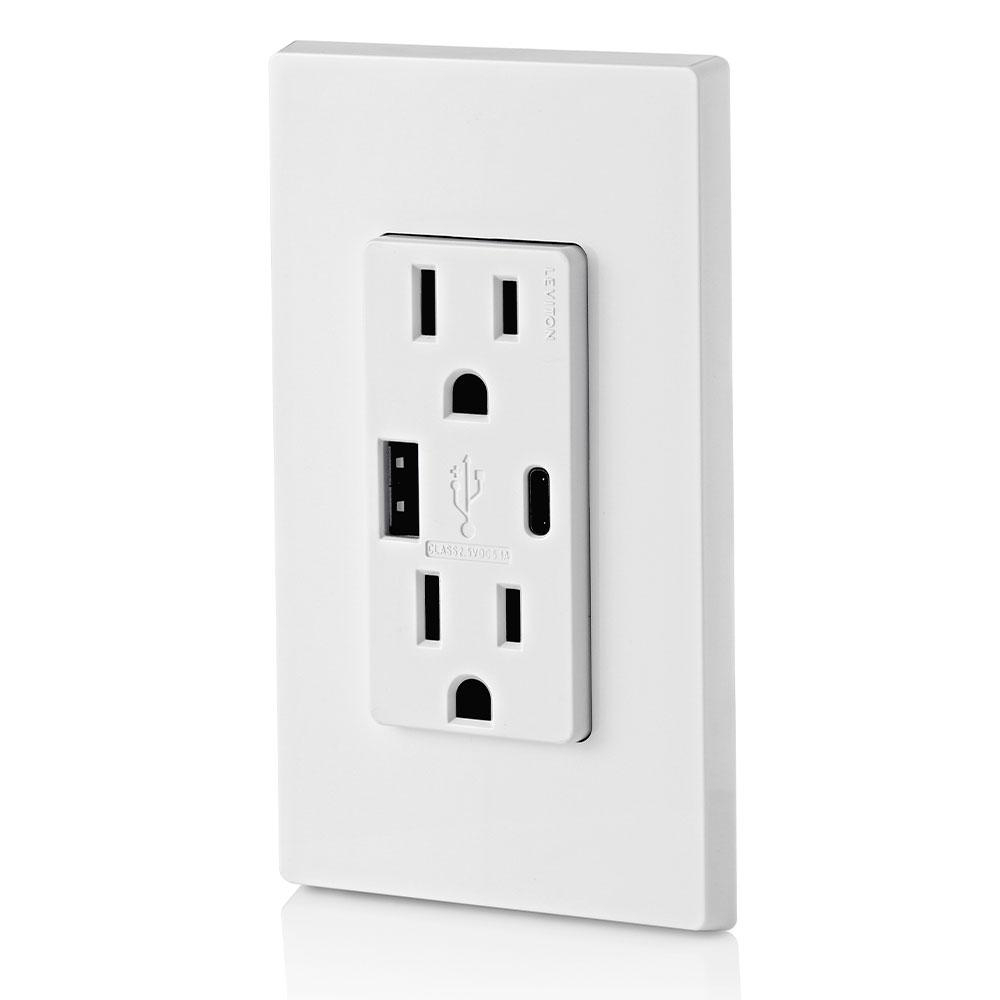

5.1A USB Type A/Type-C Wall Outlet Charger with 15A Tamper-Resistant Outlet

Manufacturer: Leviton Manufacturing | Catalog # T5633-W | Electrozad South Part # 315621
$49.30 /ea
ea
Log in or register to view your price, purchase history, and more!
28 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Product Brochure MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL
15 Amp, 125 Volt, Decora Tamper-Resistant Outlet. NEMA 5-15R, 25+W (5.1 Amp), Type A and Type-C USB In Wall Charger, Grounding, Side Wired & Back Wired - White

Technical Information

Amperage
15 A
Applications
For Residential/Commercial Specification Grade
Body Material
Thermoplastic,Thermoplastic
Conductor Size
14-12 AWG
Cover Material
Thermoplastic,Thermoplastic
Flamability Class
Rated V-0 Per UL 94
Grade
Commercial,Residential
Grounding
Grounding
Horsepower
1/2 hp
Material
Thermoplastic
NEMA
5-15R
Number of Poles
2
Number of Wires
3
Operating Temperature
40 degrees C
Outlet Type
Wall
Temperature Rating
-10 to 40 degrees C
Termination Type
Back Wire,Back Wire,Side Wire,Side Wire
Torque
14 lb-in
Type
Type A/C Duplex Receptacle

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477841273
Color
White
GTIN
00078477841273
Product Type
Outlet/USB Combo
Product UPC
07847784127

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
Mexico
