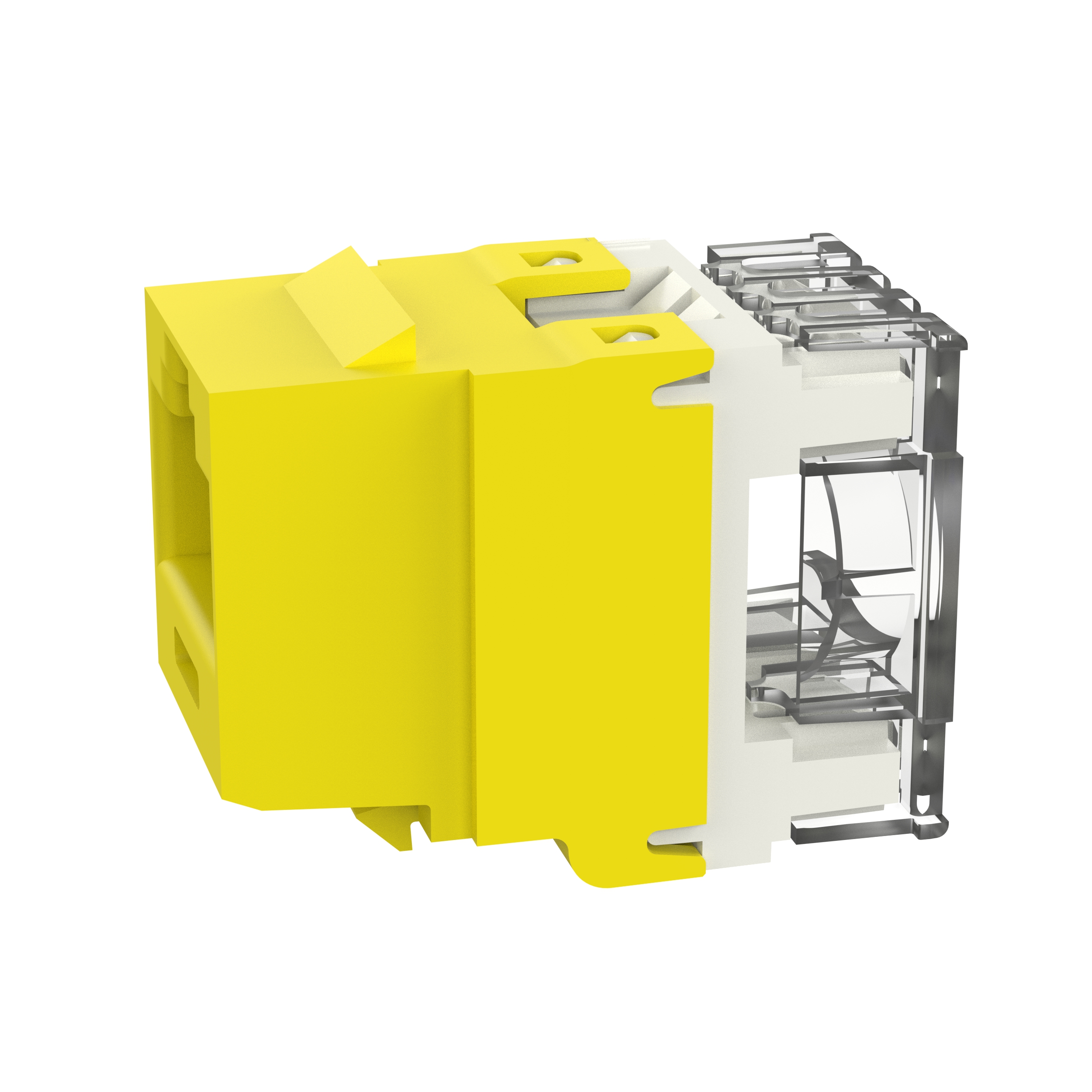

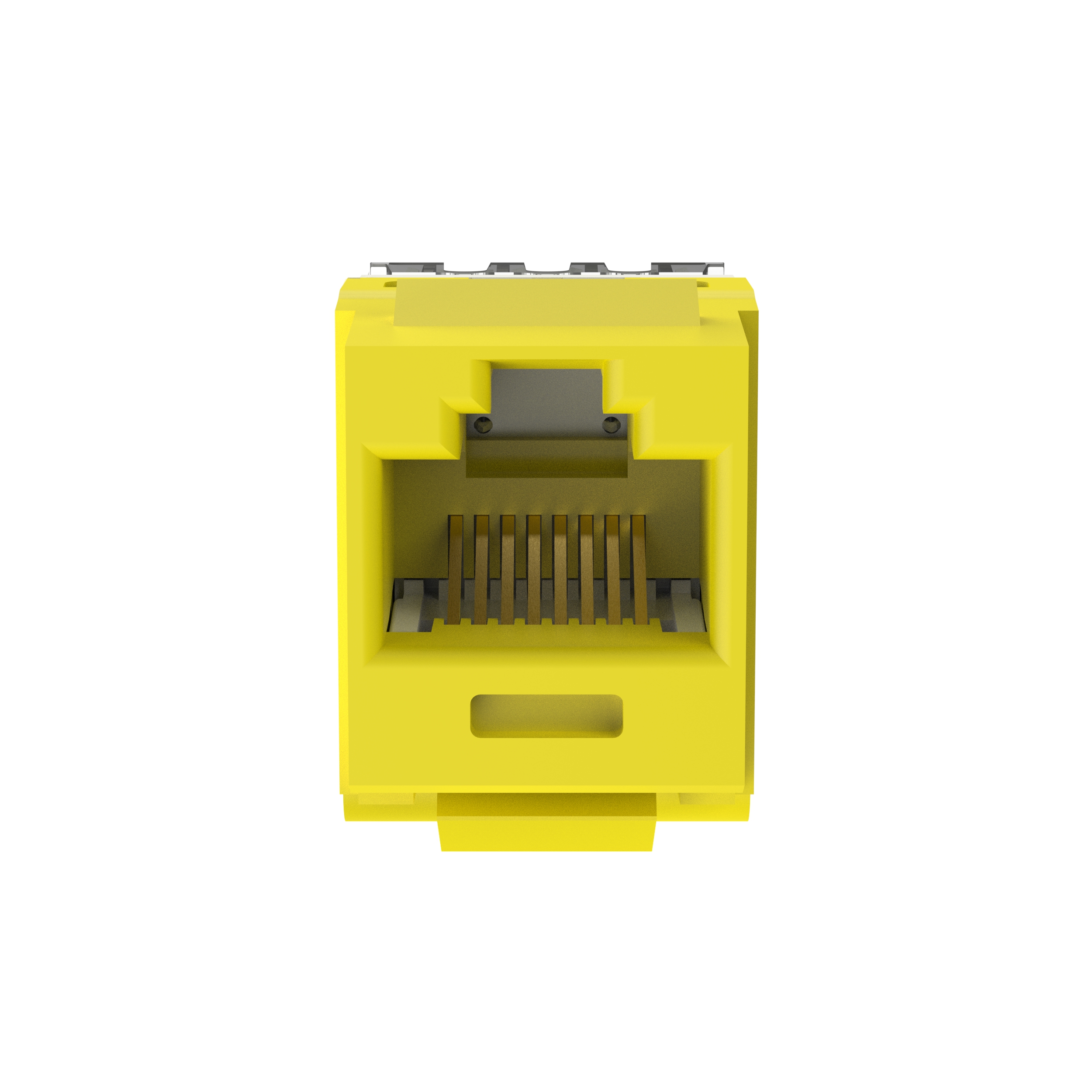

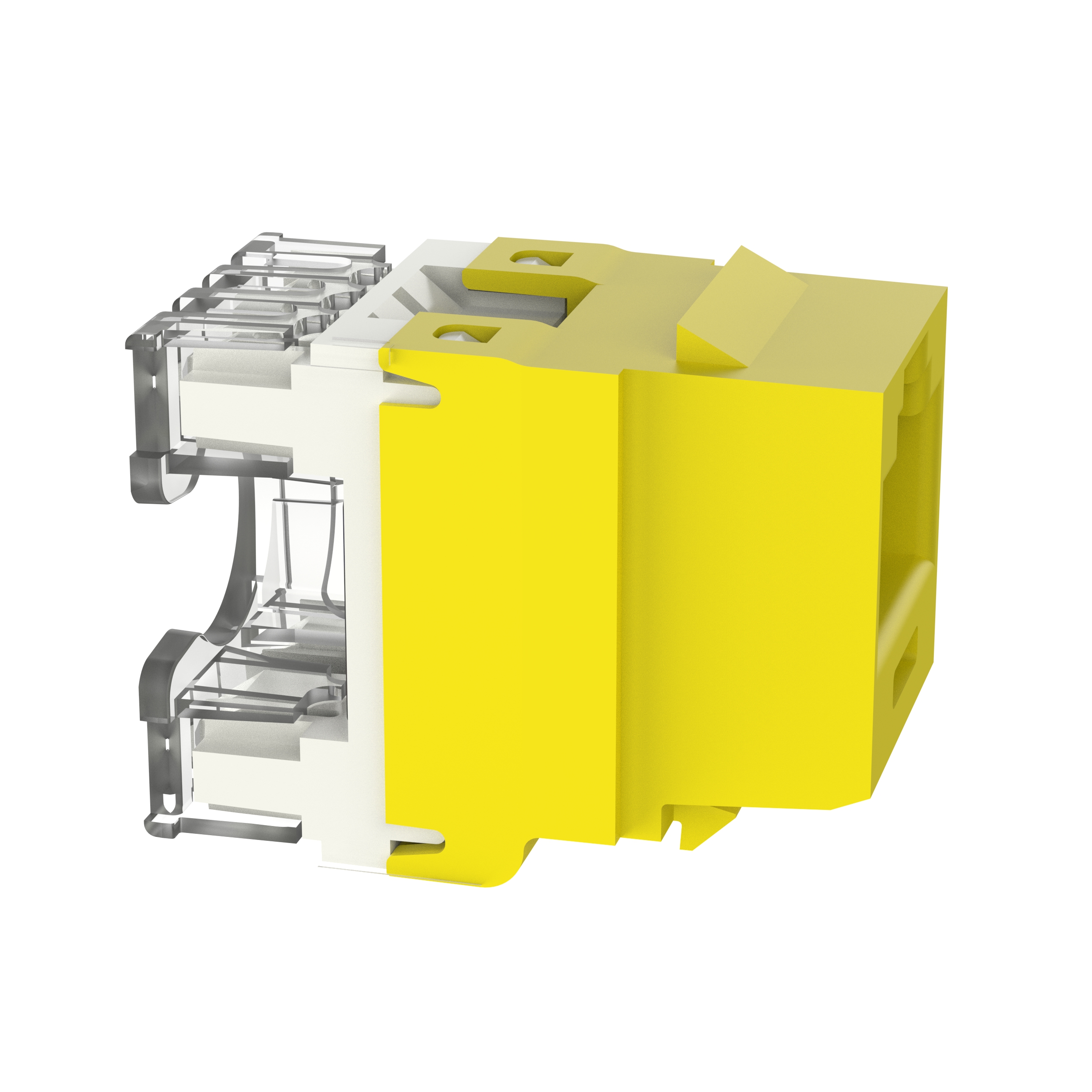

Product image for PANDUIT NK688MYL JACK CAT6 YELLOW 568A/B KEYSTONE NETKEY
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

PANDUIT NK688MYL JACK CAT6 YELLOW 568A/B KEYSTONE NETKEY

Manufacturer: Panduit | Catalog # NK688MYL | Electrozad South Part # 31588
$12.69 /ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual
The NetKey® Cat 6 UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized, and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The module is yellow.

Technical Information

Applications
10BASE-T, 100BASE-T, 1000BASE-T Ethernet, 4/16 Token Ring, Voice Over Internet Protocol (VoIP)
Cable Size
26-22 AWG
Cable Type
Category 6
Material
ABS/Polycarbonate
Max Operating Temperature
167 degrees F
Minimum Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6
Temperature Rating
-10 to 65 degrees C
Type
RJ45, Unshielded, Universal, Keystone, 8-Wire

Packaging

Package Qty
1

Manufacturer Information

Brand
Panduit
Sub Brand
NetKey

General Product Info

12-Digit UPC
074983574674
Color
Yellow
Environmental Conditions
14 °F
GTiN
00074983574674
Product UPC
07498357467
UNSPSC
43223301
Used With
T568A/T568B Cable

Dimensions

Depth
1.16 in
Height
22.9 mm
Overall Length
29.5 mm
Width
16.5 mm

Certifications & Compliance

Country of Origin
USA
