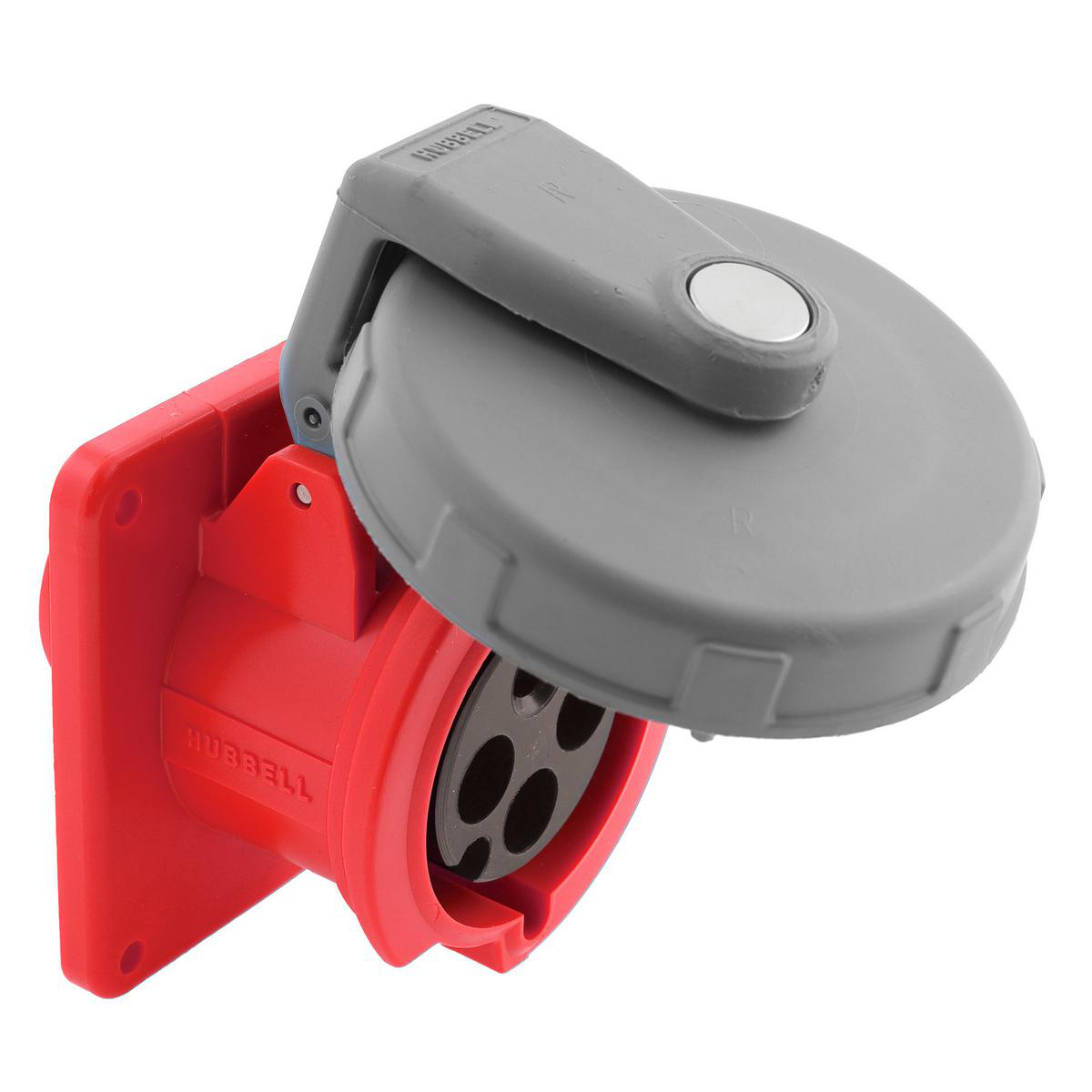

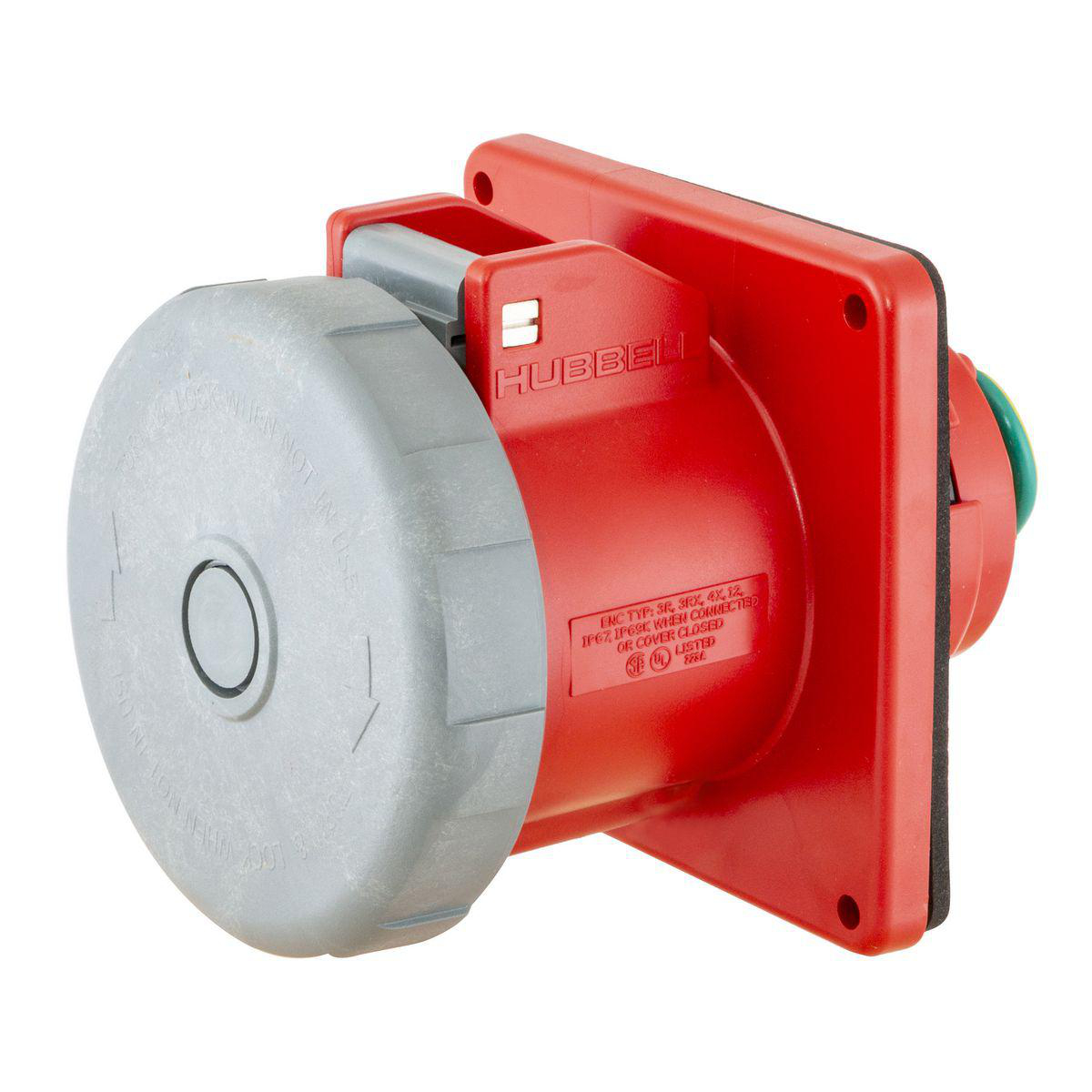

Product image for HUB HBL4100R7W RECEPTACLE 100A PIN&SLEEVE IEC 3P4W 3PH 480V RED FEMALE WATERTIGHT
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HUB HBL4100R7W RECEPTACLE 100A PIN&SLEEVE IEC 3P4W 3PH 480V RED FEMALE WATERTIGHT

Manufacturer: Hubbell Wiring Devices | Catalog # HBL4100R7W | Electrozad South Part # 316516
$795.58 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual
Watertight insulgrip pin and sleeve receptacle made of nylon with 3 pole, 4 wire, 3 phase 480 V.

Technical Information

Amperage
100 A
Applications
High Ampacity Watertight Connections
Conductor Size
3 to 1/0 AWG
Current
100 A
Grounding
Grounding
Material
Thermoplastic/Composite
Mounting Type
Screw, Inner Lying
Number of Phases
3
Number of Poles
3
Number of Wires
4
Operating Temperature
-40 degrees C
Size
Standard Sized Product
Standard
Standard UL1682
Style
Standard Service
TC Connection
Pressure Screw Terminals
Type
Single Flanged
Voltage
480 V
Wattage
48000 W
Wire Count
4
Wire Size
3 - 1/0 AWG

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
IEC 309 Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585404103
Color
Red
Environmental Conditions
Watertight
GTiN
00783585404103
Product UPC
78358540410
Weight
3.85 lb

Dimensions

Height
5.750 in
Length
7.000 in
Width
6.400 in

Certifications & Compliance

Certifications
CSA Certified File LR280C For Plugs,CSA Certified File LR280C For Plugs,CSA Standard C22.2 No. 182.1,Connectors And Inlets,Connectors And Inlets And LR285C For Receptacle CSA Standard C22.2 No. 182.2,E146033 Plugs And Connectors,E146033 Plugs And Connectors,File E146032 Receptacles And Inlets,File E146032 Receptacles And Inlets,IEC,LR285C For Receptacles,UL Classified To IEC 309-1 And,UL Classified To IEC60309-1,UL Listed,UL Listed,UL Standard UL1682 & UL 1686C2,UL Standard UL1682 & UL1686C2
Country of Origin
USA
