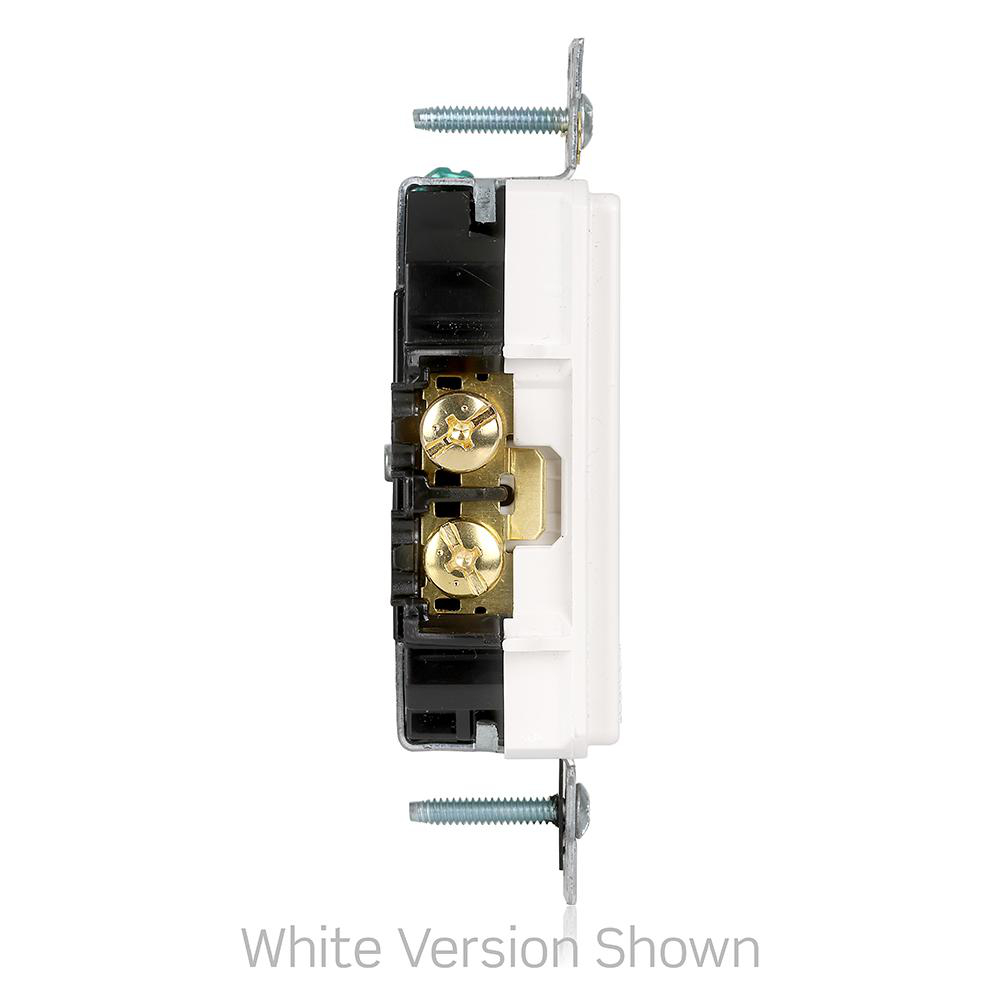

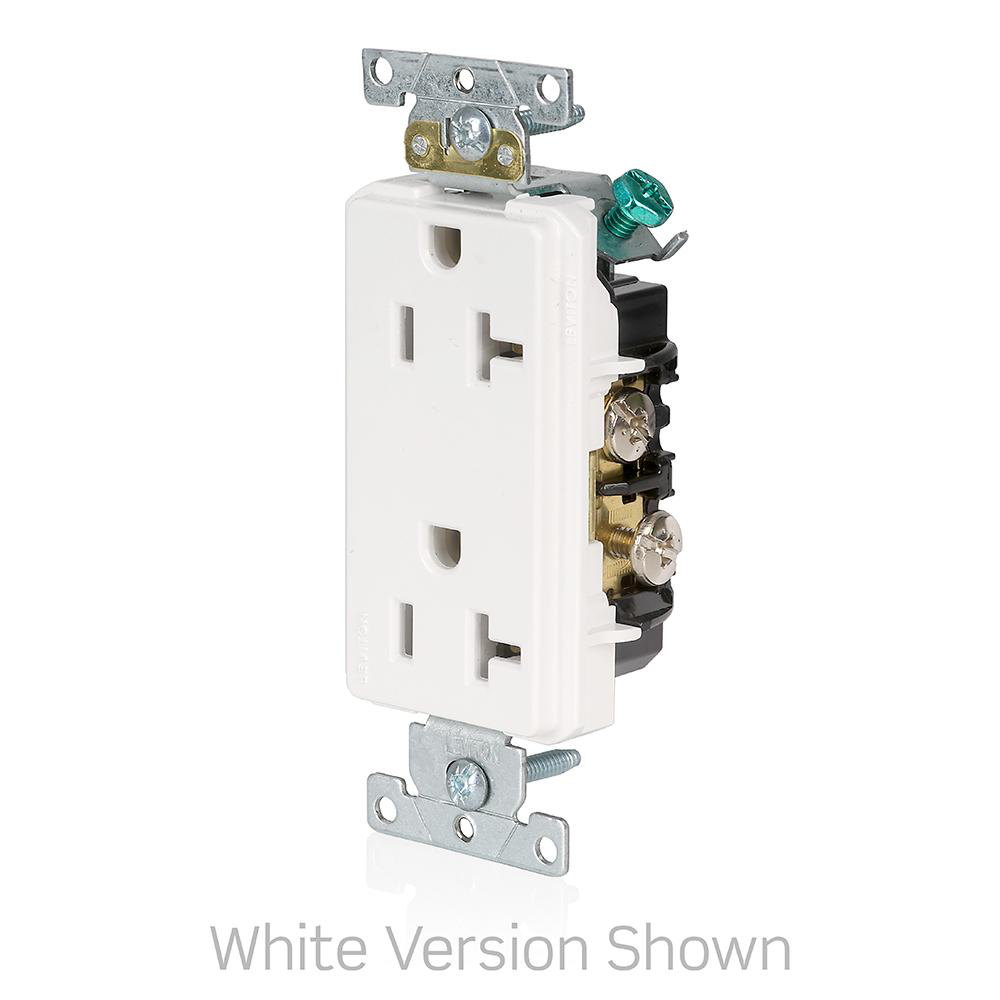

Receptacle straight Decora 2P3W 125V 20A white

Manufacturer: Leviton Manufacturing | Catalog # 16342-W | Electrozad South Part # 31663
$16.42 /ea
ea
Log in or register to view your price, purchase history, and more!
10 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL
Levitons line of heavy-duty specification grade receptacle are designed and manufactured to withstand the most demanding environments. These commercial grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

Technical Information

Amperage
20 A
Applications
Commercial
Body Material
Thermoplastic Nylon
Conductor Size
14-10 AWG
Connection Type
Side Wire
Contact Material
Brass
Contact Type
Triple-Wipe
Device Type
Duplex Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 V
Enclosure
WD-6
Face Material
Nylon
Flamability Class
Rated V-2 Per UL94
Grade
Commercial
Grounding
Self-Grounding
Horsepower
1 hp
Insulation Material
Brass-Plated
Material
Thermoplastic
Mounting Type
Wallbox, Flush
NEMA
WD-1
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass,Brass
Screw Size
10-32,8-32
Size
46 H x 1.52 W x 1.14 D IN
Standard
ANSI C-73
TC Connection
Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
200 %
Terminal Size
14-10 AWG
Termination Type
Side Wire
Type
Outlet
Voltage
125 V
Wire Count
3
Wire Size
14 - 10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477788264
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Finish
Matte
GTIN
00078477788264
Product UPC
07847778826

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
