BURNDY GD2226 CONNECTOR COPPER GROUND #4G SOL- 2/0 STR 2 PARALLEL CABLE TO ROD OR PIPE 4"- 4.5" ROD 4" PIPE

Manufacturer: Burndy | Catalog # GD2226 | Electrozad South Part # 318022
$236.86 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure

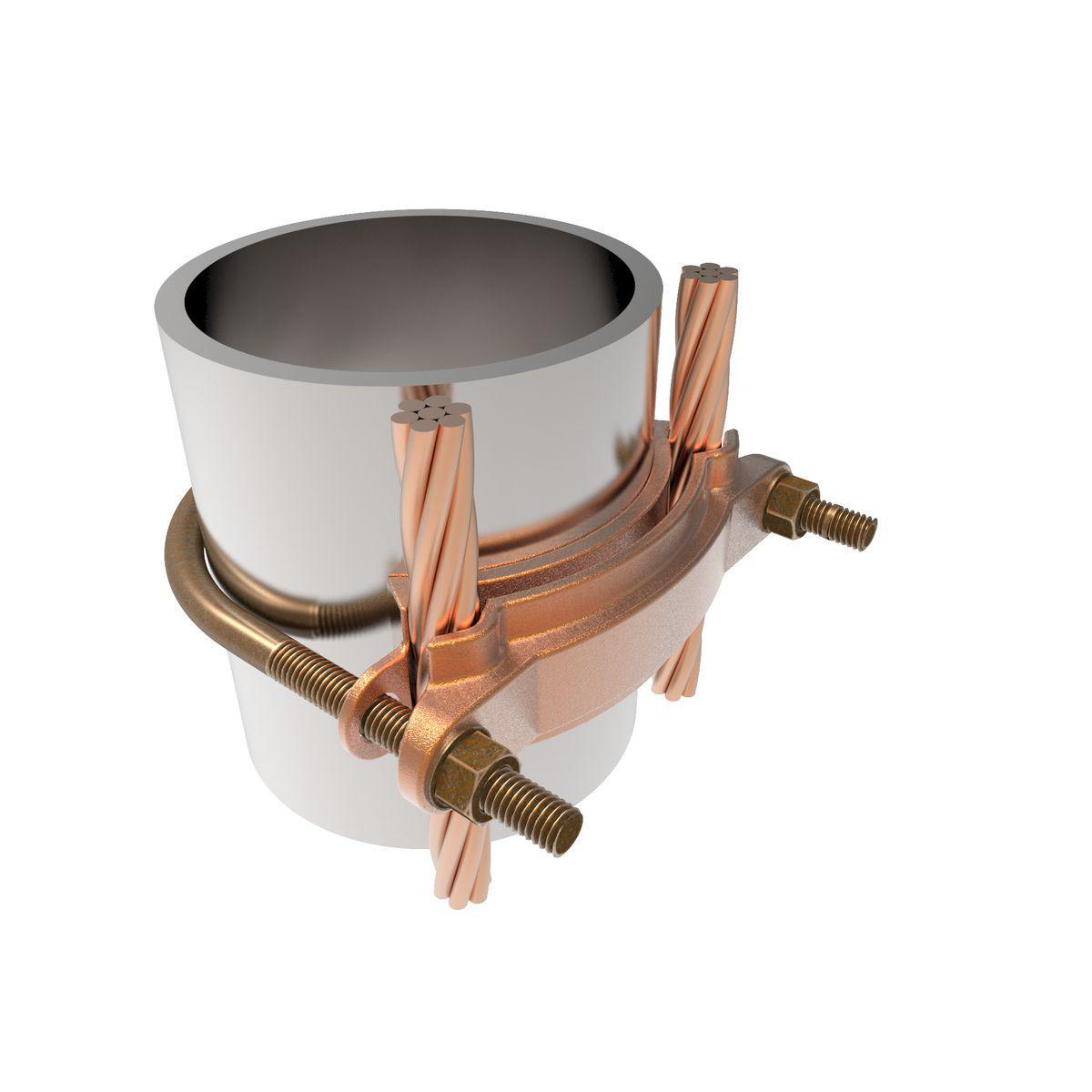

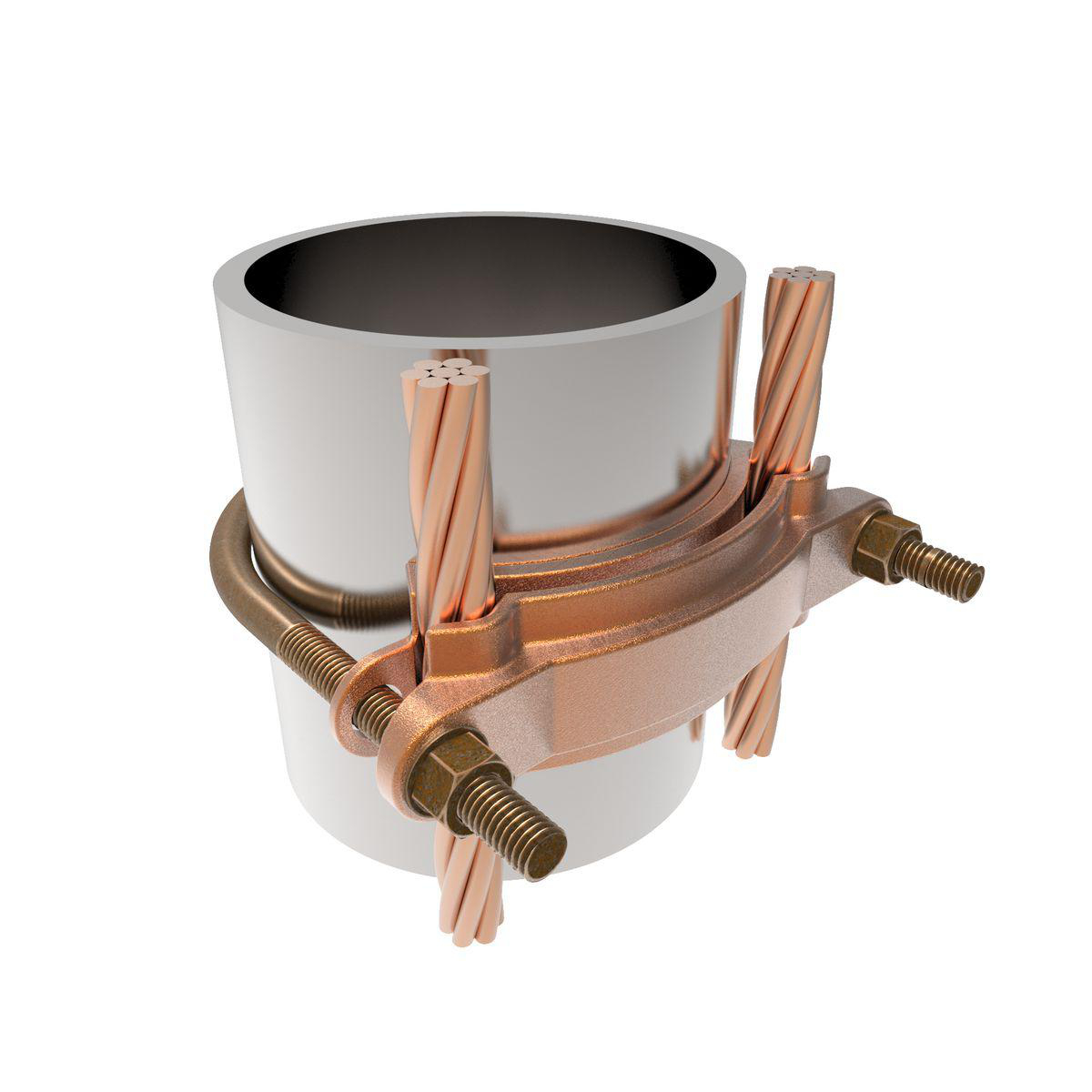

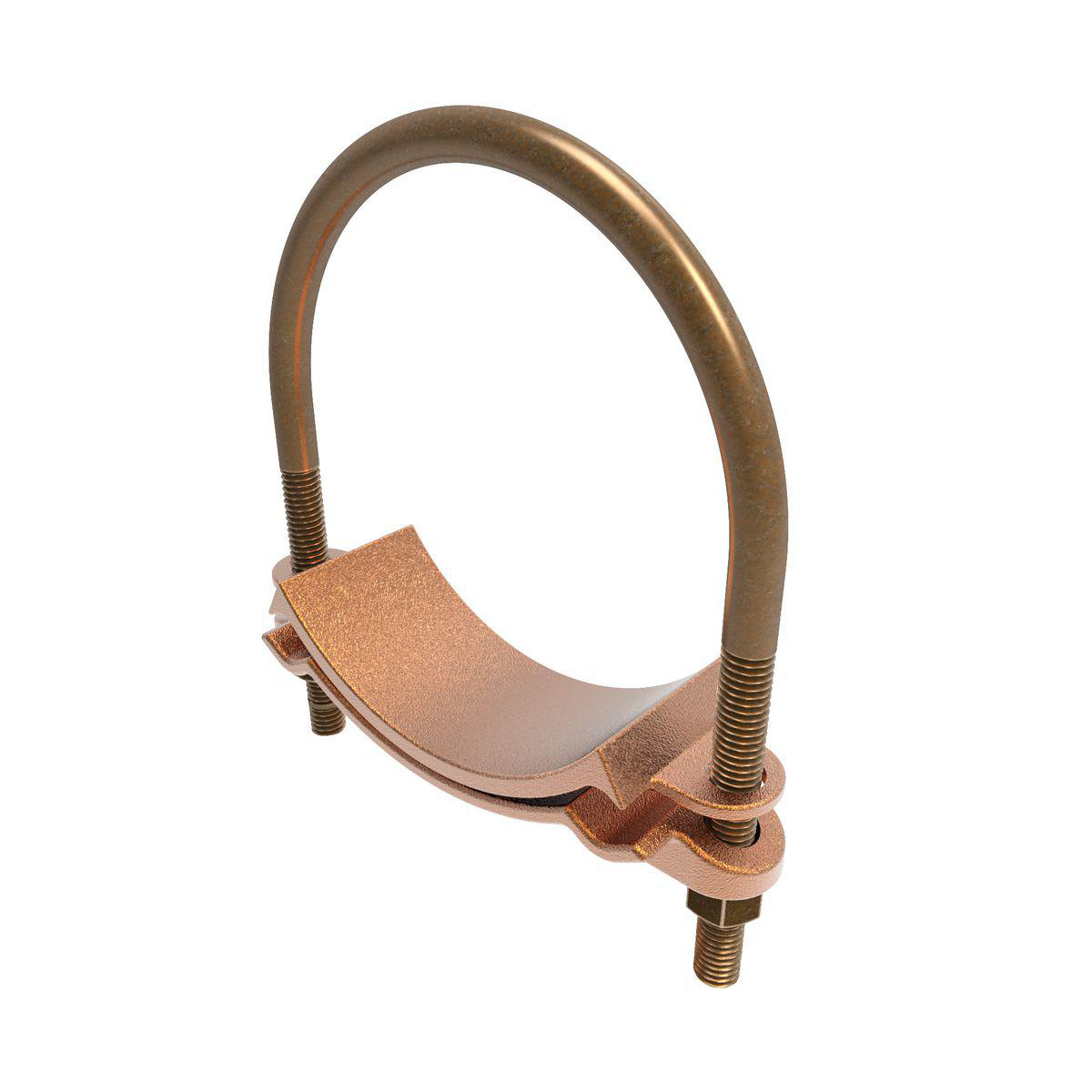

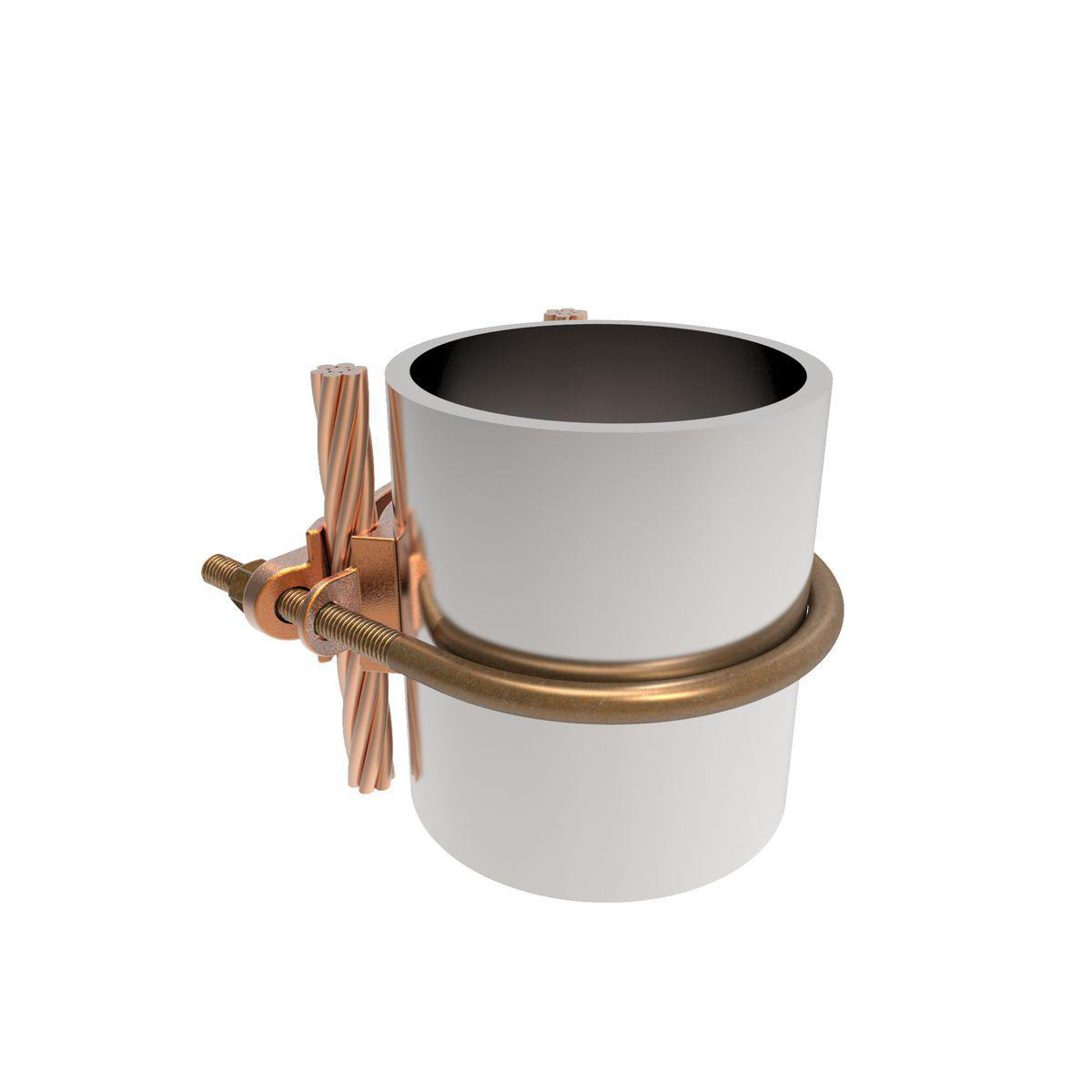

Mechanical Grounding Connector, 2 Parallel Cables to Rod or Pipe, 4 AWG ( Sol.) - 2/0 AWG (Str.), 4" to 4-1/2" Rod, 4" Pipe.

Technical Information

Applications
For Joining a Range of Two Parallel Copper Cables to Rod or Pipe and Burial in Ground or Concrete
Bolt Size
3/8 IN
Conductor Size
4 AWG Solid, 2/0 AWG Stranded
Material
High Copper Alloy
Mounting Type
3/8 in
Plated?
No
Plating Type
Unplated
Type
Mechanical

Manufacturer Information

Brand
Burndy
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810260463
GTiN
00781810260463
Product UPC
78181026046
Used With
4 in IPS

Dimensions

Height
6.38 in
Length
5.81 in
Width
1.63 in

Certifications & Compliance

Country of Origin
Mexico
CSA
No
