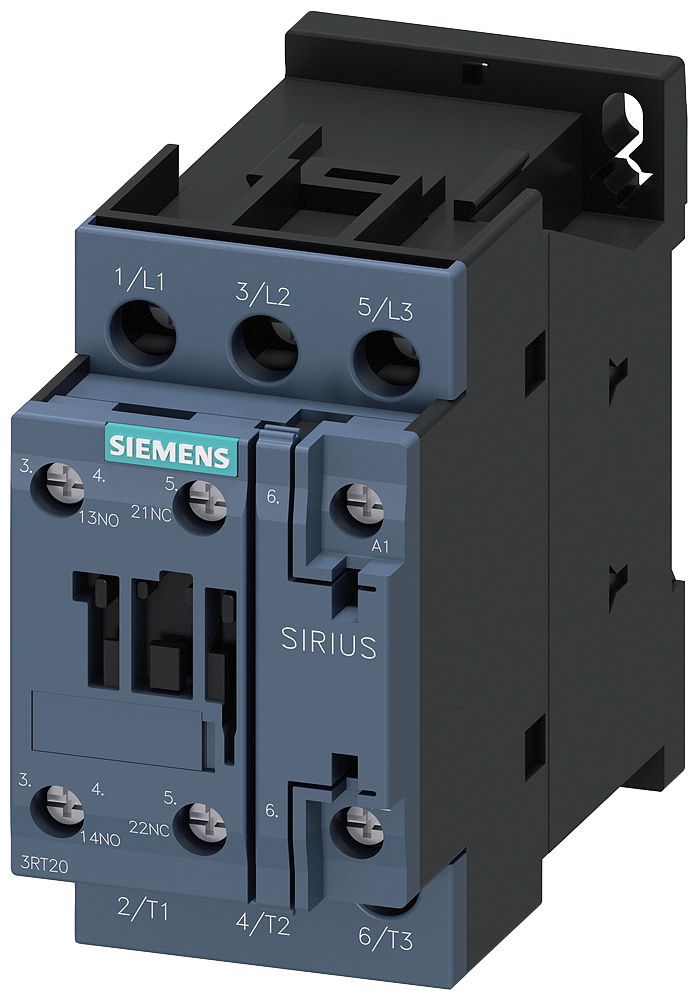

Contactor power 3-pole 1NO-1NC screw type 110/120V 5.5kW SZ0

Manufacturer: Siemens Motor Control | Catalog # 3RT2024-1AK60 | Electrozad South Part # 318493
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Product Catalog Page D BRAND LOGO IMAGE URL L WIRING DIAGRAM URL
SIRIUS Power contactor for switching motor. Modular system with its components for the switching, starting, protection and monitoring of motors and industrial systems stands for the fast, flexible and space-saving construction of control cabinets. Screw terminals. Screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022. IP20 protection class. Operating temperature -25 to 60..C.

Technical Information

Coil Voltage
110/120 VAC
Connection Type
Screw Connection
Contact Configuration
1 NO, 1 NC
Contact Rating
12 A at 400 V
Number of Phases
3
Number of Poles
3
Operating Cycles
10M
Operating Temperature
-25 To 60 DEG C
Power Rating
5.5 kW at 400 VAC-3, 2.6 kW at 400 VAC-4
Size
85 MM Height x 45 MM Width x 97 MM Depth
TC Connection
Screw type terminal
Temperature Rating
-25 to 60 degrees C
Wattage
5.5 kW

Manufacturer Information

Brand
Siemens
Sub Brand
Sirius

General Product Info

12-Digit UPC
662643913071
GTIN
00662643913071
Product UPC
01120983193
Weight
0.905 lb

Dimensions

Height
2.150 in
Length
4.100 in
Width
3.600 in

Certifications & Compliance

Country of Origin
Germany
