TA1S8-M69 Tie Anchor Mount, Ivory, V-0 PA6.6, 0.75x0.38", #8 Screw

Manufacturer: Panduit | Catalog # TA1S8-M69 | Electrozad South Part # 321089

$596.84 /m (1000 ea)
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days

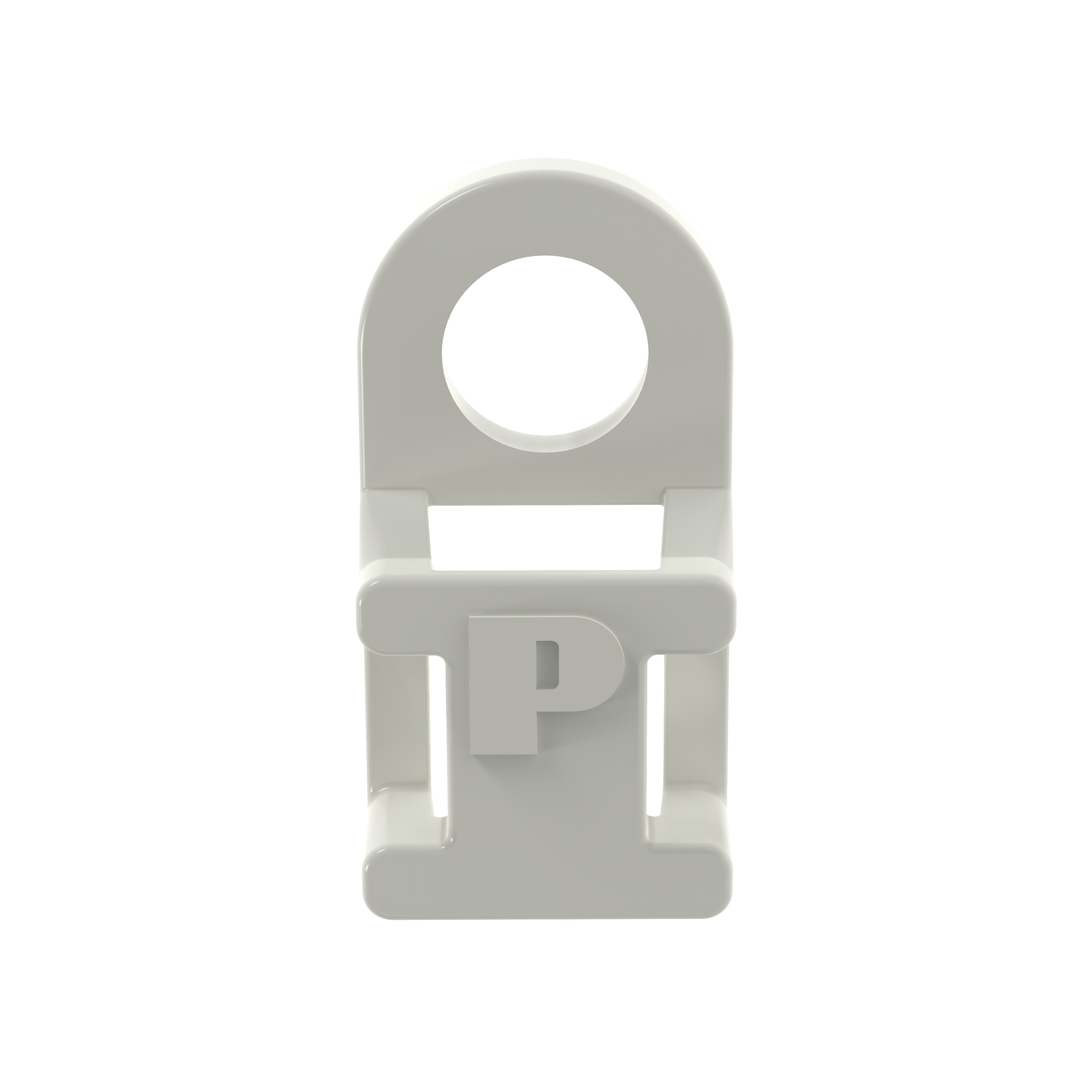

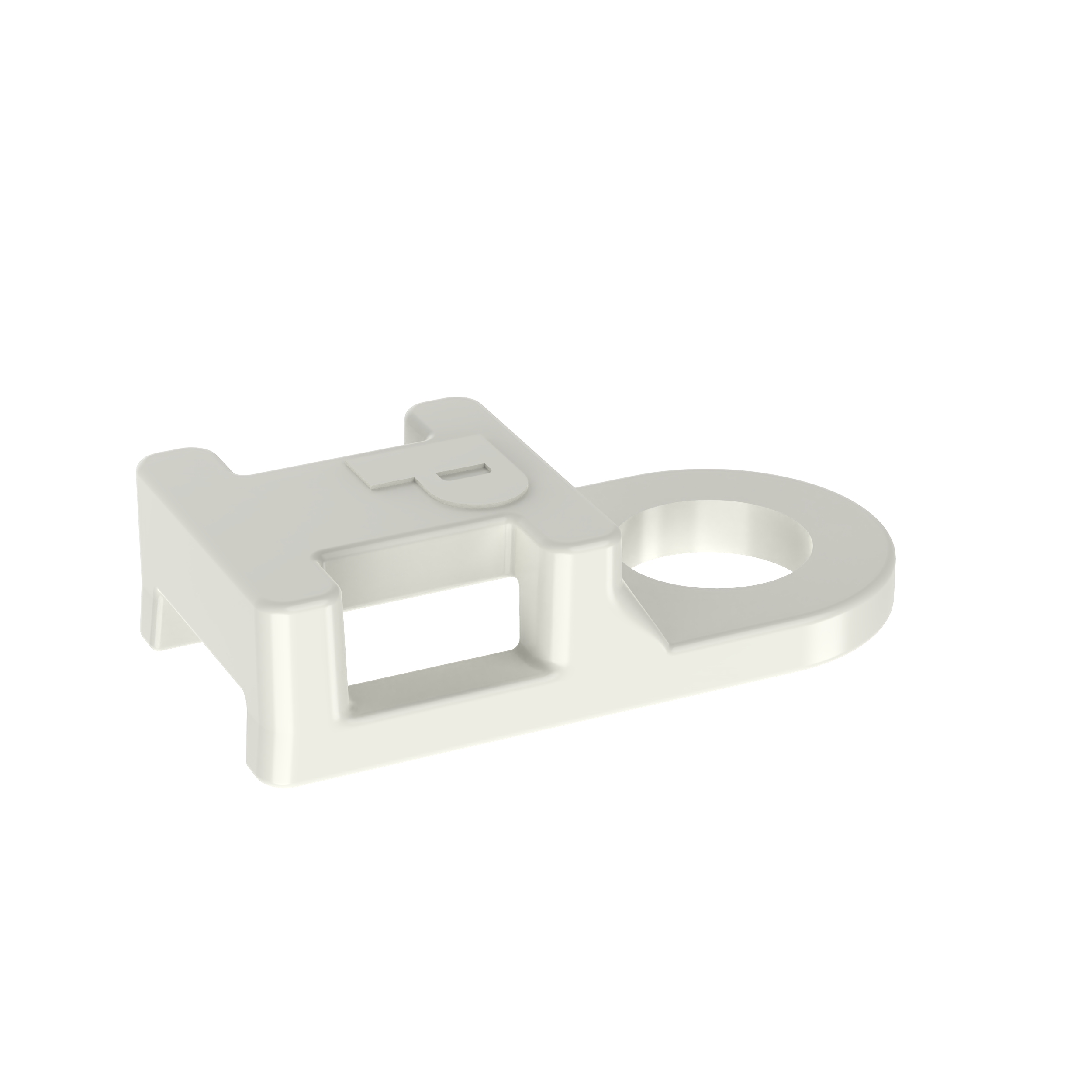

Panduit's TA1S8-M69 Cable Tie Anchor Mount has 4-way cable tie entry for easy orientation of wire and cables with the option to mount in-line or perpendicular to the wire bundle. The mounts are made of Flame Retardant Nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness. They can easiliy be installed with a #8 (M4) screw. These mounts are for indoor use and can be used with miniature, intermediate and standard cable ties. They are .75" long x .38" wide (19 x 9.5 mm), ivory in color, and come in packages of 1000.

Technical Information

Applications
Low Profile Tie Anchor Mounts, Versatile Mount for Applications where Space is Limited
Cable Size
NA
Cable Type
Cable Tie Mount
Material
Nylon
Max Operating Temperature
100 degrees C
Minimum Operating Temperature
-40 degrees C
Mounting Type
Screw-On
Operating Temperature
212 degrees F
Screw Size
#8 (M4)
Type
Cable Tie Mount

Packaging

Package Qty
1000

Manufacturer Information

Brand
Panduit
Sub Brand
Cable Tie Mount

General Product Info

12-Digit UPC
074983247998
Color
Ivory
Environment
Indoor
GTIN
00074983247998
Product UPC
07498324799

Dimensions

Height
0.19 in
Overall Length
0.74 in
Width
0.37 in

Certifications & Compliance

BAA | Buy American Compliant
Y
Country of Origin
USA
