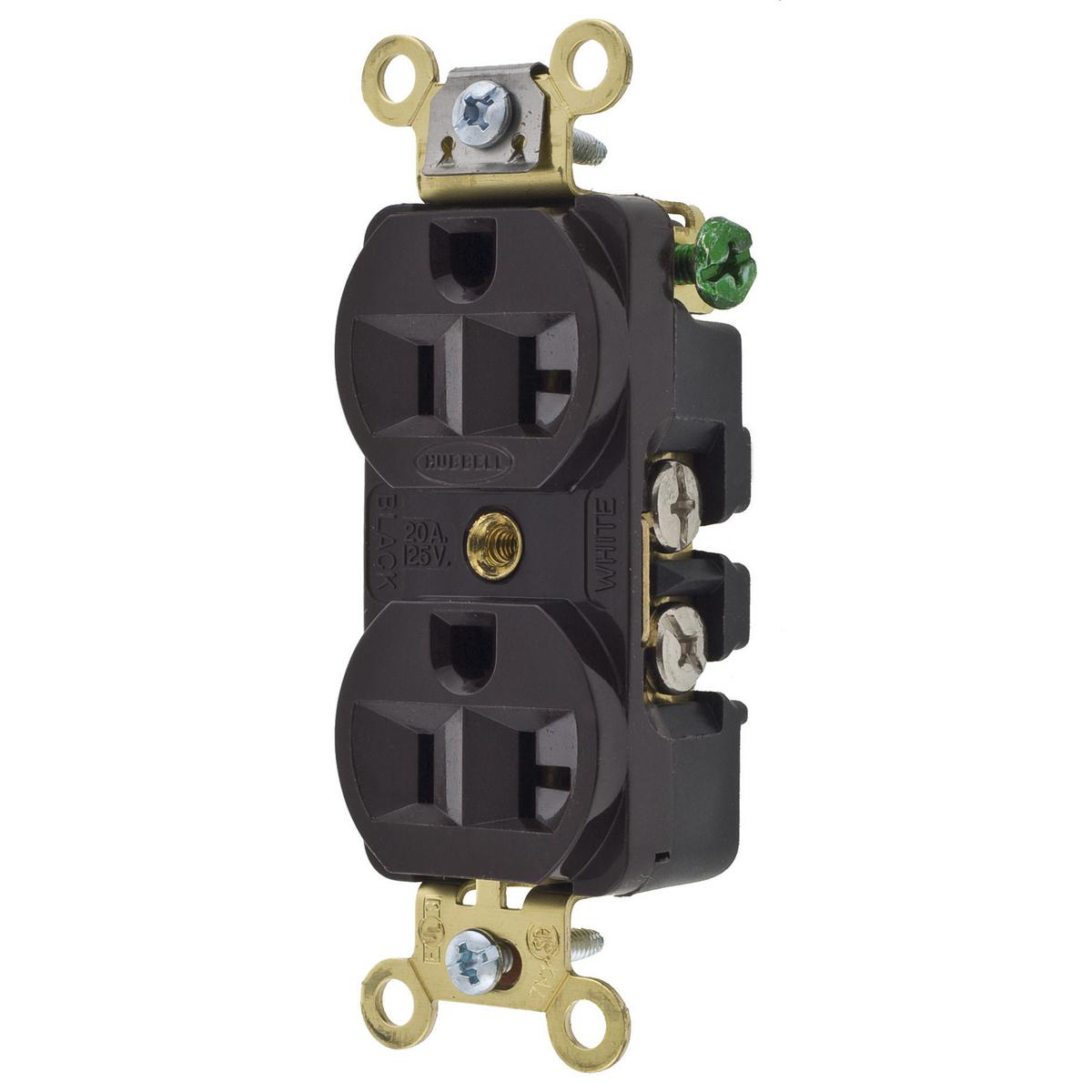

DUP RCPT, INT GRD, 20A 125V, 5-20R, BR

Manufacturer: Hubbell Wiring Devices | Catalog # HBL5342 | Electrozad South Part # 322807
$43.48 /ea
pc
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check another branch
Specification Sheet Product Catalog Page Installation / Instruction Manual D BRAND LOGO IMAGE URL H TECHNICAL DRAWING URL I INSTALL ASSEMBLY INSTRUCTIONS URL P WARRANTY URL
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Brown, Single Pack.

Technical Information

Amperage
20 A
Applications
Extra Heavy Duty Compact
Base Material
PBT
Current
20 A
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Horsepower
1 hp
Material
Thermoplastic Rubber
NEMA
5-20R
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
3.28 in x 1.33 in x 1.05 in
Standard
CSA,E2186,UL
Style
Finder Groove Face
TC Connection
Push-In and Side Wired
Type
Traditional
Voltage
125 V
Wattage
2500 W
Wire Count
3
Wire Size
12 - 10 AWG

Manufacturer Information

Brand
Hubbell
Sub Brand
Straight Blade and Twist-Lock

General Product Info

12-Digit UPC
783585434766
Color
Light Brown
Environmental Conditions
Indoor Only
GTIN
00783585434766
Product Series
Heavy Duty
Product UPC
78358543476
Weight
0.2 lb

Dimensions

Height
1.05 in
Length
3.28 in
Width
1.33 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Triple wipe contacts
  • Slender/compact design
  • Brass Mounting Strap
